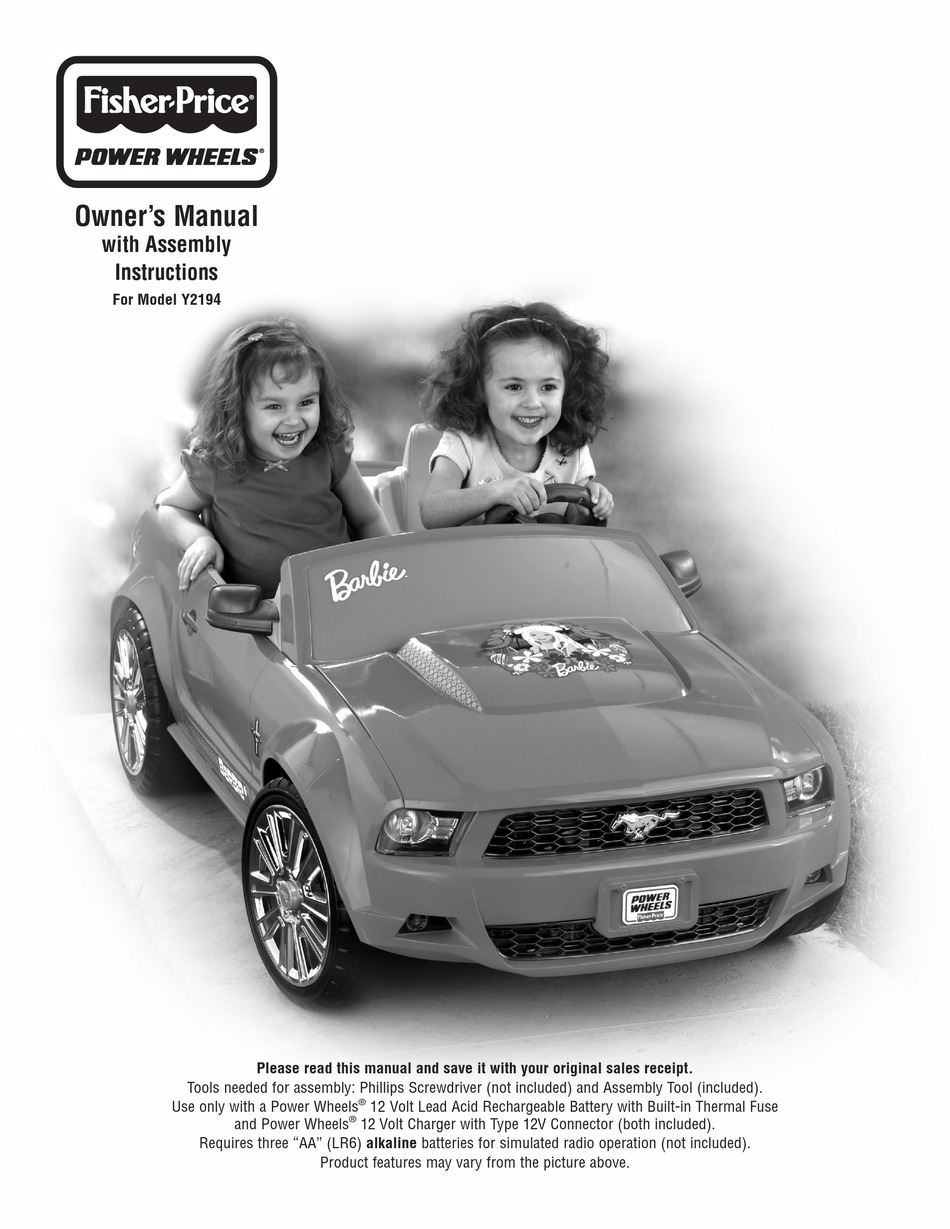

Owner's Manual
with Assembly
Instructions
For Model Y2194
Please read this manual and save it with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver (not included) and Assembly Tool (included).
®
Use only with a Power Wheels
12 Volt Lead Acid Rechargeable Battery with Built-in Thermal Fuse
®
and Power Wheels
12 Volt Charger with Type 12V Connector (both included).
Requires three "AA" (LR6) alkaline batteries for simulated radio operation (not included).
Product features may vary from the picture above.
Troubleshooting  service.fisher-price.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Wheels Y2194 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fisher-Price Power Wheels Y2194

  • Page 1 Owner’s Manual with Assembly Instructions For Model Y2194 Please read this manual and save it with your original sales receipt. Tools needed for assembly: Phillips Screwdriver (not included) and Assembly Tool (included). ® Use only with a Power Wheels 12 Volt Lead Acid Rechargeable Battery with Built-in Thermal Fuse ®...
  • Page 2: Electrical Hazard

    • Use this vehicle ONLY outdoors. Most interior flooring can be - Use of the wrong type battery or charger could damaged by riding this vehicle indoors. Fisher-Price will ® cause a fire or explosion resulting in not be responsible for damage to the floor if the vehicle is used indoors.
  • Page 3 • Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with a paper towel to remove any excess lubricant. • Part not shown: label sheet. Front Bumper Vehicle Rear Deck Bumper Support Seat Spoiler Grille Dash Assembly Hood 2 Wheel Covers Front Wheels (Left and Right) Troubleshooting  service.fisher-price.com...
  • Page 4 0,6 cm x 3,2 cm Screw – 2 1,1 cm Washer – 2 12 Volt Battery 12 Volt Charger For your convenience, we included extra fasteners! Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws. Troubleshooting  service.fisher-price.com...
  • Page 5: Battery Charging

    If your battery is already installed in your vehicle, simply re-connect the motor harness connector to the battery. • You do not need to remove the battery from your vehicle to recharge it. Troubleshooting  service.fisher-price.com...
  • Page 6: Bottom View

    • Slide the bumper support, ribbed side up, into the slot in the front end of the vehicle. • Insert six #8 x 1,9 cm screws into the front bumper and tighten. • Insert two 0,6 x 3,2 cm screws into the bumper support and tighten. Troubleshooting  service.fisher-price.com...
  • Page 7 • Fit a wheel cover on to the right front wheel. • Align the slot in a hubcap with the rib in the wheel cover. “Snap” a hubcap into the centre of each wheel cover. • Turn the vehicle upright. Troubleshooting  service.fisher-price.com...
  • Page 8: Front View

    • Fit the grille onto the front number. • Insert two black #8 x 1,9 cm screws into the grille and tighten. Posts • Fit the dash assembly onto the posts near the front end of the vehicle. Troubleshooting  service.fisher-price.com...
  • Page 9 • Place the labels exactly as shown in the illustrations. For best results, avoid repositioning a label once it has been applied to the vehicle. DASH VIEW • Insert two black #8 x 1,9 cm screws into the dash assembly as shown and tighten. Troubleshooting  service.fisher-price.com...
  • Page 10 • When sounds from the simulated radio become faint or stop, Spoiler it’s time for an adult to change the batteries! • Fit the spoiler onto the rear deck. • Insert four #8 x 1,9 cm screws into the holes and tighten. Troubleshooting  service.fisher-price.com...
  • Page 11: Back View

    Note: You will need to remove these three screws if you change • Pull each side of the long seat belt strap evenly through the the seat position later. slots. Make sure to pull each T-loop through a slot. Troubleshooting  service.fisher-price.com...
  • Page 12 • Fit the steering column cap onto the end of the steering column. the dash. • Insert a #8 x 1,9 cm screw through the large opening in the steering column cap and into the hole in the steering column. Tighten the screw. • Turn the vehicle upright. Troubleshooting  service.fisher-price.com...
  • Page 13 • Insert the 0,4 cm x 3,8 cm pin through the hole in the steering column. • Grasp the steering column again and pull down to fit the pin into the centre of the steering wheel. Troubleshooting  service.fisher-price.com...
  • Page 14 • After applying a label, rub the label firmly with a clean, dry cloth to make sure the label is adhered to your vehicle. Start at the centre of a label, and smooth towards the outer edges to remove air bubbles. FRONT VIEW BACK VIEW Troubleshooting  service.fisher-price.com...
  • Page 15: Left View

    DECORATION DOOR VIEW LEFT VIEW RIGHT VIEW Troubleshooting  service.fisher-price.com...
  • Page 16: Battery Installation

    • Plug the motor harness connector into the battery. Battery Retainer Use vehicle on generally level ground ONLY! • Place the battery in the battery compartment. Slide the battery retainer over the top of the battery. • Close the hood. Troubleshooting  service.fisher-price.com...
  • Page 17: Safe Driving Rules

    Contact your local waste management officials for other information regarding the environmentally sound collection, recycling and disposal of lead-acid batteries. • Protect the environment by not disposing of this product with household waste (2002/96/EC). Check your local authority for recycling advice and facilities Troubleshooting  service.fisher-price.com...
  • Page 18: Vehicle Operation

    • Make sure the shifter is in the high speed position. • Press down on the foot pedal. STOP PRESS • Remove your foot from the pedal to stop! • Press the buttons on the simulated radio to hear cool tunes. Troubleshooting  service.fisher-price.com...
  • Page 19: Vehicle Care

    For a shiny finish, you can wipe plastic parts with a non-wax furniture polish applied to a soft-cloth. Do not use automotive wax. Do not use soap and water or spray the vehicle with a hose. Troubleshooting  service.fisher-price.com...
  • Page 20 Charge the battery once a month, even if the vehicle is not used or stored. Do not return your vehicle to the store, we can help! Visit us online for our Troubleshooting Guide - service.fisher-price.com AUSTRALIA: Mattel Australia Pty. Ltd., 658 Church Street, Locked Bag #870, Richmond, Victoria 3121 Australia.
