Please keep this instruction sheet for future reference,
Requires three AA (LR6) alkaline batteries (not included) for operation.
Adult assembly is required. Tool required: Phillips screwdriver (not included).
Wipe this toy with a clean, damp cloth. Do not immerse.
This toy has no consumer serviceable parts. Do not take apart.
as it contains important information.
fisher-price.com

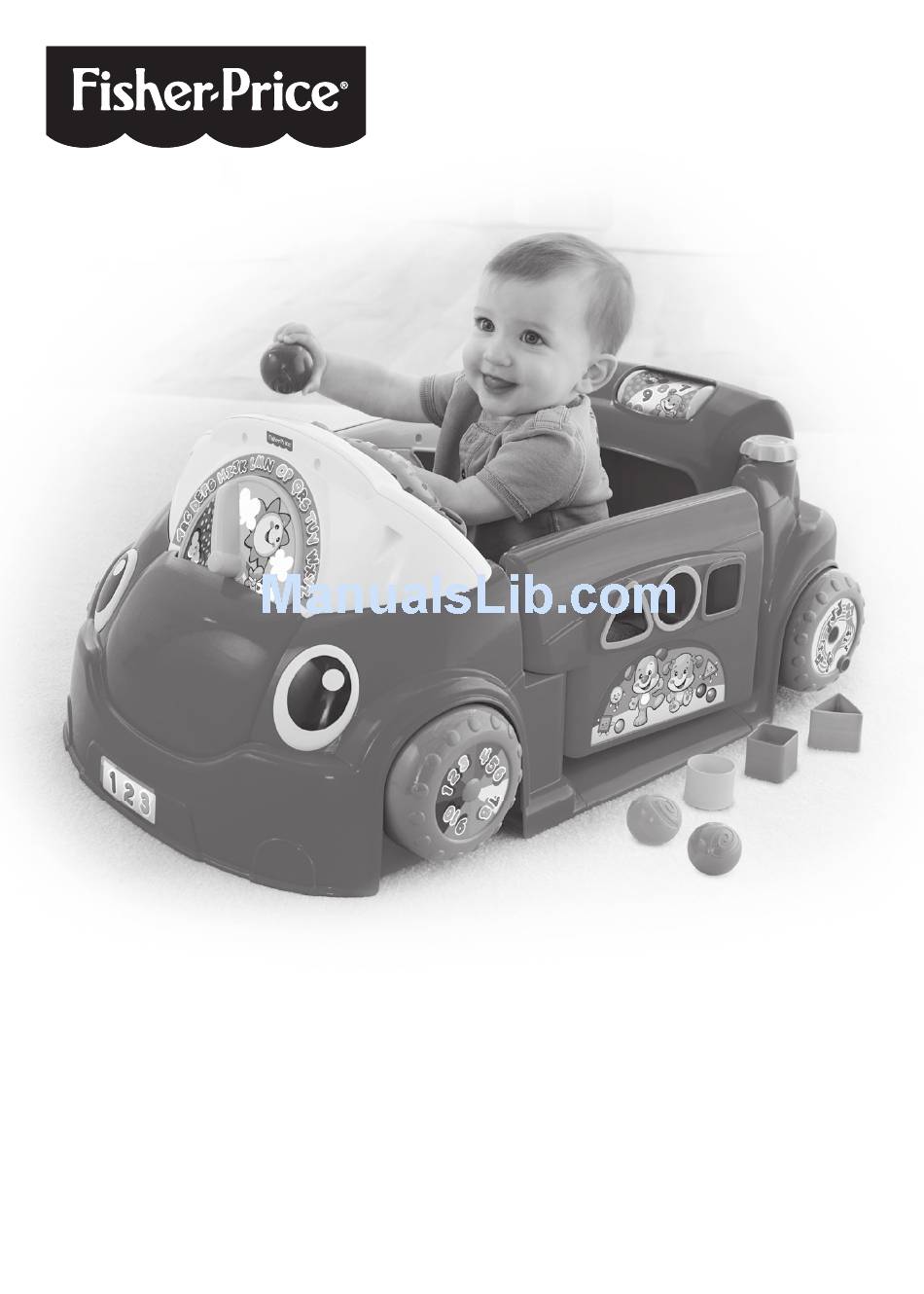

1
Y6965
Y6965
BMD91
BMD91
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fisher-Price Y6965
Summary of Contents for Fisher-Price Y6965
- Page 1 Y6965 Y6965 BMD91 BMD91 Please keep this instruction sheet for future reference, as it contains important information. Requires three AA (LR6) alkaline batteries (not included) for operation. Adult assembly is required. Tool required: Phillips screwdriver (not included). Wipe this toy with a clean, damp cloth. Do not immerse.
-
Page 2: Consumer Information
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052. protection against harmful interference Hearing-impaired consumers: 1-800-382-7470. in a residential installation. This Outside the United States: Canada: Mattel Canada Inc., 6155 Freemont Blvd.,... - Page 3 Assembled Parts 2 Rear Fenders Rear Wheel Base Windshield Dash Dash Side Panel Side Panel Trunk (outside) Side Base Side Panel Sid P Roller Assembly (inside) Door Part not shown: Label Sheet Front End CAUTION #8 x ¾" (1,9 cm) Screw – 21 SHOWN ACTUAL SIZE This package contains small Tighten all screws with a Phillips...
- Page 4 Assembly y Rear Fenders Rear Wheel Base • Fit the rear fenders onto the rear wheel base. Push to “snap” each rear fender in place. Hint: Each rear fender is designed to fit one way. If it does not seem to fit, try the other rear fender.
- Page 5 Assembly Roller Assembly • Fit the tabs on the roller assembly into the slots in the trunk. • Insert two screws into the roller assembly and tighten. Side Panel (outside) Front End Side Panel (inside) • Fit the side panels onto the front and rear ends.
-
Page 6: Bottom View
Assembly • Insert nine screws into the side panel and tighten. Side Base BOTTOM VIEW • Carefully turn the car assembly over. • Fit the side base to the front and rear end of the car assembly. - Page 7 Assembly • Insert six screws into the side base and tighten. Door Peg • Turn the car assembly upright. • Fit the peg on the door into the hole in the car. Push to “snap” in place.
- Page 8 Assembly IMPORTANT! Apply labels 7 and 8 to windshield before completing the next step. • Apply labels exactly as shown in the illustration. Avoid repositioning a label after it has been applied. plied. Windshield Dash • Fit the windshield onto the dash and push to “snap” in place. •...
-
Page 9: Front View
Assembly BOTTOM VIEW • Carefully turn the car assembly over. • Insert four screws into front end and tighten. Decoration Apply labels exactly as shown in illustrations. Avoid repositioning a label after it has been applied. FRONT VIEW... -
Page 10: Left Side View
Decoration LEFT SIDE VIEW RIGHT SIDE VIEW... -
Page 11: Battery Installation
Battery Installation 1,5V x 3 AA (LR6) • For longer life, use alkaline batteries. • Locate the battery compartment on the dashboard. Loosen the screw in the battery compartment door and remove the door. • Insert three AA (LR6) alkaline batteries. •... - Page 12 3 modes of play with fun sounds and lights! Pull the shifter Pull the shifter up and down up and down Drop balls Drop balls Turn the key Turn the key Turn the Turn the in the ramp in the ramp windshield wiper windshield wiper Spin the roller...
