Summary of Contents for Magnacoustics Genesis ULTRA

Page 1: Table Of Contents
Technologist Control Unit Operation:________________ 6, 7 & 8 Pre-Installation:______________________________________ 9 System Parts List:________________________________ 10, 11 Genesis ULTRA Installation and Connections:___11, 12,13, & 14 Rear Panel:________________________________________ 15 Component Locations and Wiring Flow:___________________16 Installing an older system on a newer GE MRI:__________17, 18 Tech Support: 800-637-2282 Magnacoustics Inc™...
Page 2: Important Safety Instructions
10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with a cart, stand, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip‐over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power‐supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15) Warning ‐ this equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. Warning: This equipment has been certified to comply with the limits for a Class B computing device, pursuant to Subpart J of Part 15 of FCC Rules. Only peripherals certified to comply with the Class B limits may be attached to this equipment. Operation with non‐certified peripherals is likely to result in interference. This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference. Caution: The power switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all the power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example if facility will not be in operation for a few weeks) Magnacoustics Inc™ © 3/2010 rev – j...
Page 3: System Notes
System Notes Our Genesis ULTRA Music System has a number features that need to be fully understood to use this system to its full potential Music provides comfort to the patient during the procedure.  Our MagnaLink™ Pneumatic Stethoscope Style Headsets attenuate gradient noise to patient’s ...
Page 4 MagnaPlug is required for the smallest diameter possible. in your hands. Using your patient and then insert them Avoid pinching. thumbs and first fingers gently into the MagnaLink couplers. start rolling, gradually increasing pressure. Magnacoustics Inc™ © 3/2010 rev - j ...
Page 5 This will ensure your patients hearing protection with all coils in addition to allowing your system to meet and/or exceed GE Healthcare’s attenuation requirements. 2. Use of any other headset with your Magnacoustics MRI Music System will NOT work and may cause serious patient safety issues.
Page 6: Technologist Control Unit Operation
Volume for the Patients. 10: The Genesis has a feature called AUTO GAIN this provides the ability to automatically adjust volume level of music to Patients dependent on the amount gradient noise being created by MRI. Magnacoustics Inc™ © 3/2010 rev – j...
Page 7 12. Scan MIC Level 13. Boot Mode Diagnostic Norm 14. FMRI Pulse High Pulse Low High Held Low Held 15. IR Remote JVC UXGN6 JVC MXKC58 16. IR Remote Dwell 1Sec 2Sec 3Sec 4Sec Magnacoustics Inc™ © 3/2010 rev – j...
Page 9: Pre-Installation
Patient volume control Red and Green buttons. 10: Patient selection control Blue and Yellow buttons. 11: CB1 - 90 ft. DB9 Female to Male DB9 Cable (Links Genesis Ultra module to Penetration Panel.) 12: CB2 - 50ft. DB9 Female to Female DB9 Cable (Links from Penetration Panel to Transducer.)
Page 10 System Parts List - continued 13: CB3 - 10ft. DB9 to Male AMP Cable (Links Breakout Box to Genesis Ultra module.) 14: CB4- 3ft DB25 to DB25 Cable (links Breakout Box to AutoVoice board.) 15: CB5- 6ft stereo 3.5mm (links audio from the Stereo to Genesis Ultra module.)
Page 11: Genesis Ultra Installation And Connections
If JVC UX-GN6 is used after May 2009 (Serial #181335ML or higher) Connect one side of CB7 to J7 on Genesis Ultra module the other side to J7 on the rear of the stereo. b. If prior to May 2009 (Serial #181334 or lower); Connect cable “CB7” 6ft 3.5mm to IR Emitter plug to the J7 on the rear of Genesis Ultra module.
Page 12 22: Zip tie cable “CB1” to existing supports, or cables from penetration panel to provide strain relief. 23: Connect Female end of cable “CB1” to J11 on the rear of Genesis Ultra module. 24: From the scan room side of penetration panel, connect cable “CB2” (50ft. DB9 Female to Female) to the RF filter you installed on penetration panel.

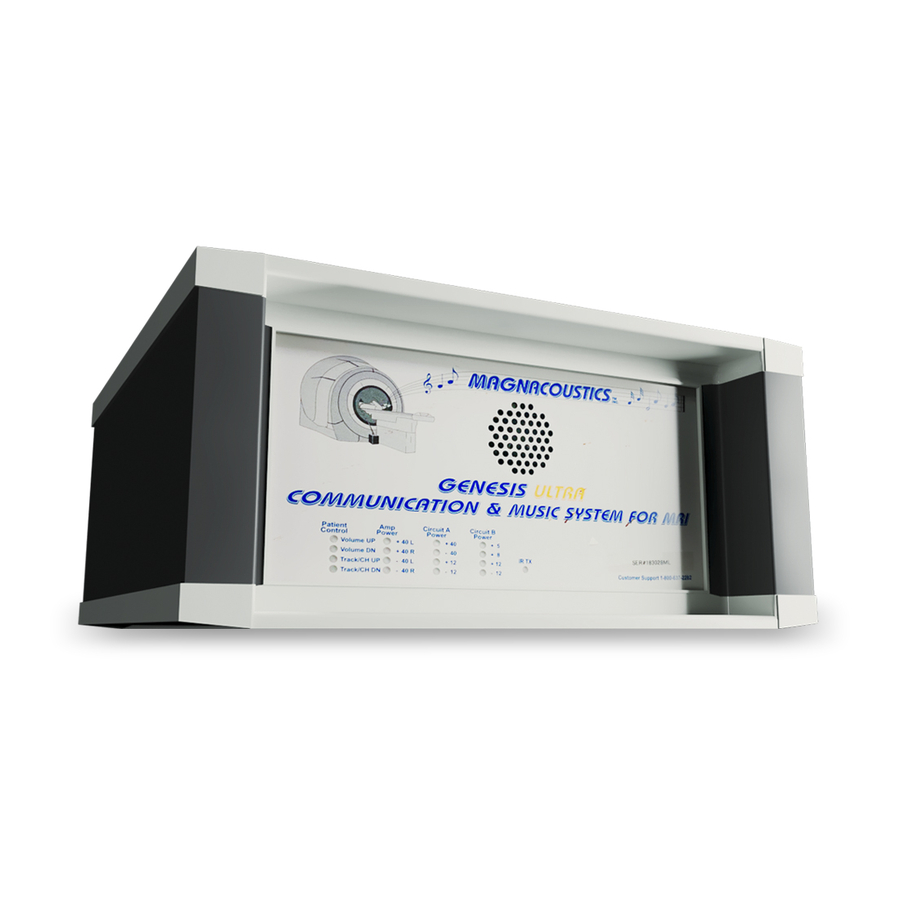

Page 13 35: Look at the front panel of the Genesis and ensure the all-8 red LED’s are lit under Circuit A Power and Circuit B Power. If not, unplug the AC power cords and contact Magnacoustics Tech Support at 1-800-637-2282 or E-mail at support@magnacoustics.com...
Page 14 Radio Shack Catalog #: 274-883 and xx adapter or equivalent must be used. 2. A 75 to 300 ohm adapter in series with the any external antenna source must be used. Magnacoustics Inc™ © 3/2010 rev – j 14 |...
Page 15: Rear Panel
SPK1= Speaker Junction for Mute * J7= IR Output to Stereo/TTL PRS output SPK2= Spare Speaker Junction * F1, F2, F3, & F4= 4.0 A SB J11 ISO T5.0 A * Not used after Serial #181335 Magnacoustics Inc™ © 3/2010 rev – j 15 |...
Page 16: Component Locations And Wiring Flow
Component Locations and Wiring Flow Magnacoustics Inc™ © 3/2010 rev – j 16 |...
Page 17: Tools Required
Magnacoustics system on a newer GE MRI If the serial number of your Magnacoustics system is below 18904 and you are installing or re- installing this system on an Excite, HD, HDE, HDX, HDXT, MR750 or newer MRI, a cable pin- out upgrade might be required.
Page 18 Directions for installing or re-installing an older Magnacoustics system on a newer GE MRI continued Depress the 4 gray buttons around the upper perimeter of the Genesis Ultra module, releasing the 4 pop-up tabs on the top of the chassis that conceal the securing screws.
