Summary of Contents for NAD T 737

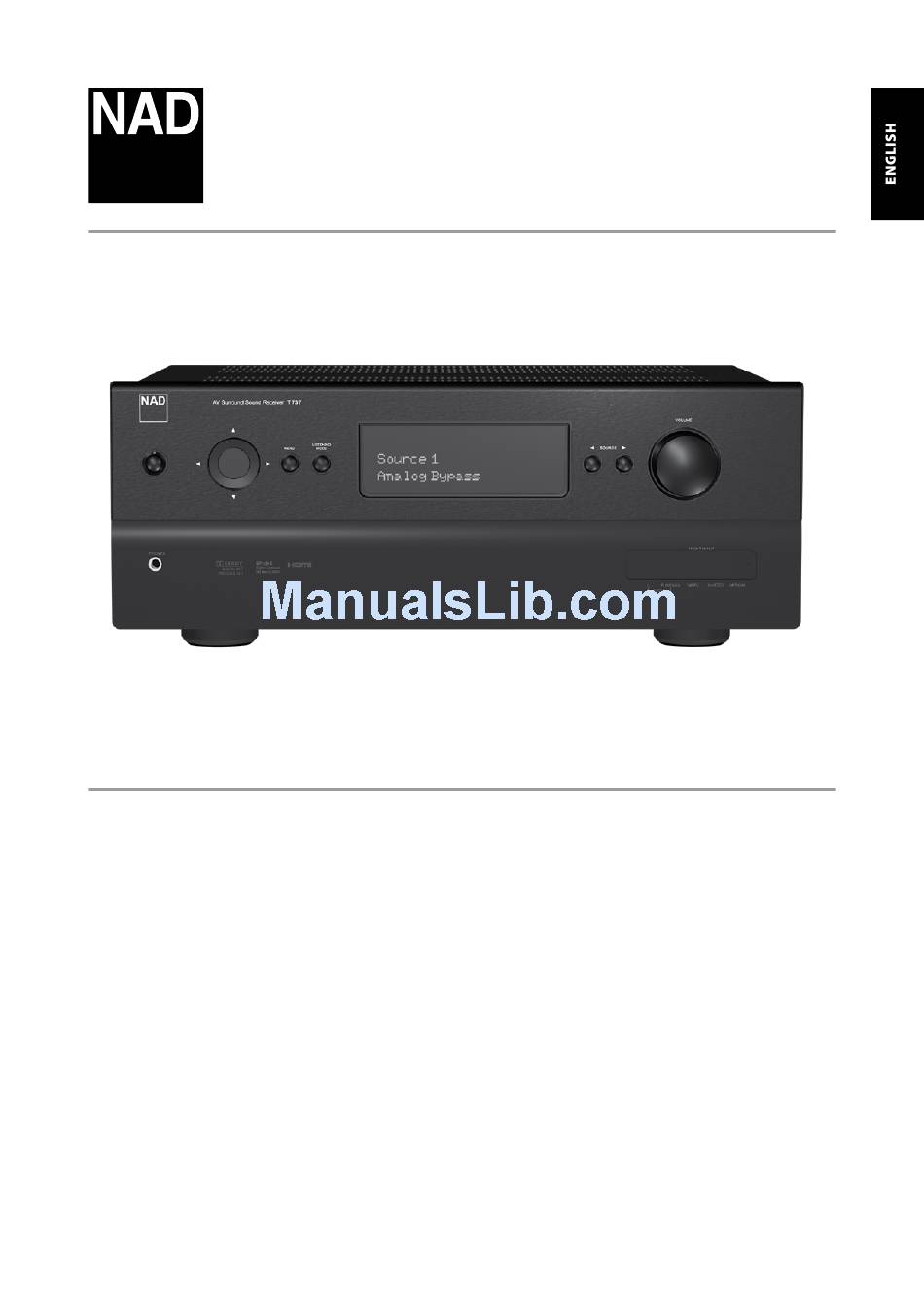

  • Page 1 T 737 ® AV Surround Sound Receiver Owner’s Manual...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS NOTE TO CATV SYSTEM INSTALLER THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER This reminder is provided to call the CATV system installer’ s attention to Section TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” 820-40 of the NEC which provides guidelines for proper grounding and, in WITHIN THE PRODUCT’S ENCLOSURE THAT MAYBE OF particular, specifies that the cable ground shall be connected to the grounding...
  • Page 3 TO THE PRESCRIBED AC OUTLET, I.E., 120V 60Hz OR 230V 50Hz. RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) The model and serial number of your new T 737 are located on the back of the cabinet. For your future convenience, we suggest that you record these numbers here: Model no: .

  • Page 4: Table Of Contents

    AND iPod PLAYER TO THE T 737 ....... 31...

  • Page 5: Introduction

    Source 2 Optical 2 IN/ Audio 2 IN HDMI 2 IN SAVE THE PACKAGING Please save the box and all of the packaging in which your T 737 arrived. S-Video Monitor Source 3 Coaxial IN/ Audio 3 IN S Video 3 IN...

  • Page 6: Identification Of Controls

    LED indicator will turn from amber to blue and illuminate the VFD. Pressing and press the buttons. Do not expose the remote sensor of the T 737 to a the power button again turns the unit back to standby mode.
  • Page 7 If your source only has a single audio out jack or is marked “Mono output”, plug this into the T 737’s Front “R (MONO)” input. On the other hand, if your source has two output jacks indicative of stereo output, insert both jacks into the T 737’s corresponding Front “L”...

  • Page 8: Rear Panel

    The HDMI ports support transmission of video signals only. For HDMI DVD recorder or to an outboard audio/video processor. Connect the audio signal, connect your HDMI source component’s S/PDIF-format T 737’s AUDIO 1 IN/VIDEO 1 IN/S-VIDEO 1 IN jacks to the component’s digital output signal to the applicable T 737 digital audio input ports. corresponding output. You can then correspondingly assign this HDMI digital audio input as your particular HDMI 1 or HDMI 2 digital audio source via the Source Setup item of the Setup Menu OSD.
  • Page 9 Connect the T 737’s IR IN to the IR OUT of ancillary equipment. Connect 7 7.1 CH INPUT: Connect to the corresponding analog audio output also the T 737’s IR OUT 1 (or IR OUT 2) to another equipment with IR IN ports of multichannel source components such as a DVD-Audio or feature.
  • Page 10 AC outlet, i.e., 120V 60 Hz (for 120V version models of T 737 only) or 230V 50 Hz (for 230V version models of T 737 only). Always disconnect the AC Mains cable plug from the live wall socket first, before disconnecting the cable from the T 737’s Mains input...

  • Page 11: Avr  Remote Control

    USING THE AVR 3 REMOTE CONTROL The AVR 3 remote control handset handles the key functions of the T 737 as well as other NAD Stereo Receivers, Integrated Amplifiers and Preamplifiers. It has additional controls to remotely operate NAD CD Players, AM/FM Tuners and dedicated AM/FM/DAB Tuners.

  • Page 12: Remote Control

    AVR 3’s [SLEEP] button until “Sleep Off” is displayed on the VFD. Switching the T 737 to standby from either the AVR 3’s OFF or the T 737’s Standby button will also cancel the sleep mode.
  • Page 13 NAD Receiver or Tuner for control button compatibility. You can also load the applicable NAD code library to this device so that it can be made compatible with your other NAD equipment. Refer to the section below about “LIBRARY” on how to load a NAD code library.

  • Page 14: Library

    REMOTE CONTROL LIBRARY The AVR 3 can store a different library of default NAD codes for each of its DEVICE SELECTOR “pages. ” If the original default library does not control your NAD CD player, DVD player, or other component, follow the procedure below to change the library code.

  • Page 15: Operation

    DISPLAY THE OSD Press [ ] button of the AVR 3 remote control or front panel to display the T 737’s MAIN MENU on your video monitor/TV. If the OSD does not appear, check your MONITOR OUT connections. IMPORTANT NOTICE There is no OSD at HDMI Monitor OUT. HDMI IN and HDMI Monitor OUT...

  • Page 16: Adjusting Listening Modes

    ADJUSTING LISTENING MODES Several of the T 737’s listening modes have one or more selectable variations and adjustable parameters that you can modify to suit your personal preferences. At Listening Mode menu, use a combination of the [ ] and ] keys to navigate and effect desired settings.

  • Page 17: Tone Controls

    TONE CONTROLS “Tone Defeat” gives one the choice of varying or completely bypassing the tone control section of the T 737. If “Off” is selected, the Tone Control circuits are active. Select “On” to bypass the Tone Controls effectively defeating the effect of the tone control circuits.

  • Page 18: Using The T 77 - Setup Menu

    SETUP MENU Source The Setup Menu allows one to customize the operation of the T 737 to the The T 737 is equipped with 9 configurable sources (Source 1-8 and Source T). ancillary equipment used in one’s specific AV system. Unless your system...

  • Page 19: Source Setup (Table View)

    TV Monitor and utilize this for your Monitor OUT connection from the T 737 to the TV Monitor. In most cases this will be Component Video, but on some older TV’s S-Video may be the best quality connection. See also the item “COMPONENT VIDEO 1-3, COMPONENT VIDEO OUT”...

  • Page 20: Ipod Setup

    • A “Small” speaker is any model, regardless of physical size, that lacks Source 4 (the default iPod source allocation in the T 737) is selected. significant deep-bass response, that is, below about 150 Hz. Select “No” if you do not want for the iPod connection automatically •...

  • Page 21: Speaker Levels

    USING AN SPL METER It is quite practical to perform the T 737 level setup routines “by ear”, and To produce the same SPL meter reading (or subjective loudness), use a careful work will produce acceptably accurate results. However, the use of...

  • Page 22: Speaker Distance

    TRIGGER SETUP Your system’s speaker distance settings are a subtle but important The T 737 features a configurable +12V DC Trigger Output that can be used refinement of your setup. Informing the T 737 of the loudspeaker-to-listener to activate a component or system it is fed into.

  • Page 23: Listening Mode

    OPERATION USING THE T 737 – SETUP MENU LISTENING MODES The Digital Theater System Digital Surround (simply called DTS) is a multi- channel digital signal format that can process higher data rates than with Dolby Digital. Although both Dolby Digital and DTS are 5.1 channel media formats, discs bearing the “DTS”...

  • Page 24: Dolby Setup

    PLIIx” under the topics “LISTENING MODE” and “ADJUSTING LISTENING detected as DTS. In this case the DTS-ES Matrix mode should be selected MODES” at the “USING THE T 737 - MAIN MENU” discussions above. manually in order to reproduce them.

  • Page 25: Display Setup

    A/V PRESETS SETUP The Vacuum Fluorescent Display (VFD) and On-Screen Display (OSD) can be The T 737’s simple but powerfully flexible system of “Presets” allows you to shown in various ways by navigating through the parameters at the “Display customize virtually every aspect of your audio-video playback, and recall Setup”...

  • Page 26: Using The T 77 - Listening To Am/Fm/Xm Radio

    SETTING RADIO PRESETS (AM/FM/XM) antenna installation professional to optimize your system. The T 737 can store up to 30 FM, 30 AM and 40 XM stations for immediate The AM loop antenna supplied with the T 737 (or a suitable replacement) recall.

  • Page 27: About Rds

    LISTENING TO XM RADIO d Repeat “b” above to choose another category. The T 737 is “XM Ready” which means that with the addition of separately sold 3 PRESET SEARCH: Toggle the [MENU] button to select “PRESET XM Mini-Tuner CPC-9000 and XM Mini-Tuner Home Dock, it has everything you need to listen to live XM.

  • Page 28: Using The T 77 - Listening To Dab Radio

    Adaptor DB 1) from the DAB module’ s output port into the corresponding DAB module input socket on the rear panel of the T 737. Select DAB mode on the LOCAL SCAN performs local scanning of available DAB services in your area.

  • Page 29: Preset Tune

    1 While listening to a DAB broadcast, press the [MENU] button and then The T 737 can store as many as 99 DAB stations of your favorite DAB broadcast for immediate recall. ] to select “Dynamic range”. Press [ENTER].

  • Page 30: Information Settings

    OPERATION USING THE T 737 – LISTENING TO DAB RADIO INFORMATION SETTINGS While listening to a DAB broadcast, the type of information displayed in the lower line of the VFD can be varied. Toggle the [INFO] button to step through the following display options:...

  • Page 31: Listening To Your Ipod Player

    During playback, toggle [DISP] key of AVR 3 to show in the VFD upper line can now plug them IN to their applicable power sources. the following 5 With your iPod player, NAD IPD 1 and T 737 all at power ON state, toggle • Current iPod playback mode (shuffle, repeat modes) •...
  • Page 32 With the iPod (IPD 1) dock’s S-VIDEO OUT and AUDIO OUT ports connected to the T 737’s S-VIDEO 4 /AUDIO 4 input, you can now directly enjoy via T 737 your video or photo selections as uploaded in your iPod. Make sure that you select the correct source input of the T 737.

  • Page 33: Reference

    • Check IR windows and ensure clear line-of- Receiver window on T 737 is obstructed. sight from remote to T 737. • T 737 front panel is in very bright sunlight or • Reduce sunlight/room lighting. ambient light. NOTE Restoring your T 737 to its factory defaults: At FM mode, press and hold front panel’s LISTENING MODE button until the VFD shows “Factory Reset”.

  • Page 34: Specifications

    Specifications are subject to change without notice. For updated documentation and features, please log onto www.NADelectronics.com for the latest information about T 737. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380;5,978,762; 6,226,616; 6,487,535; 7,003,467; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS, DTS Digital Surround, ES, and Neo:6 are registered trademarks and the DTS logos, Symbol, DTS 96/24 are trademarks of DTS, Inc.
