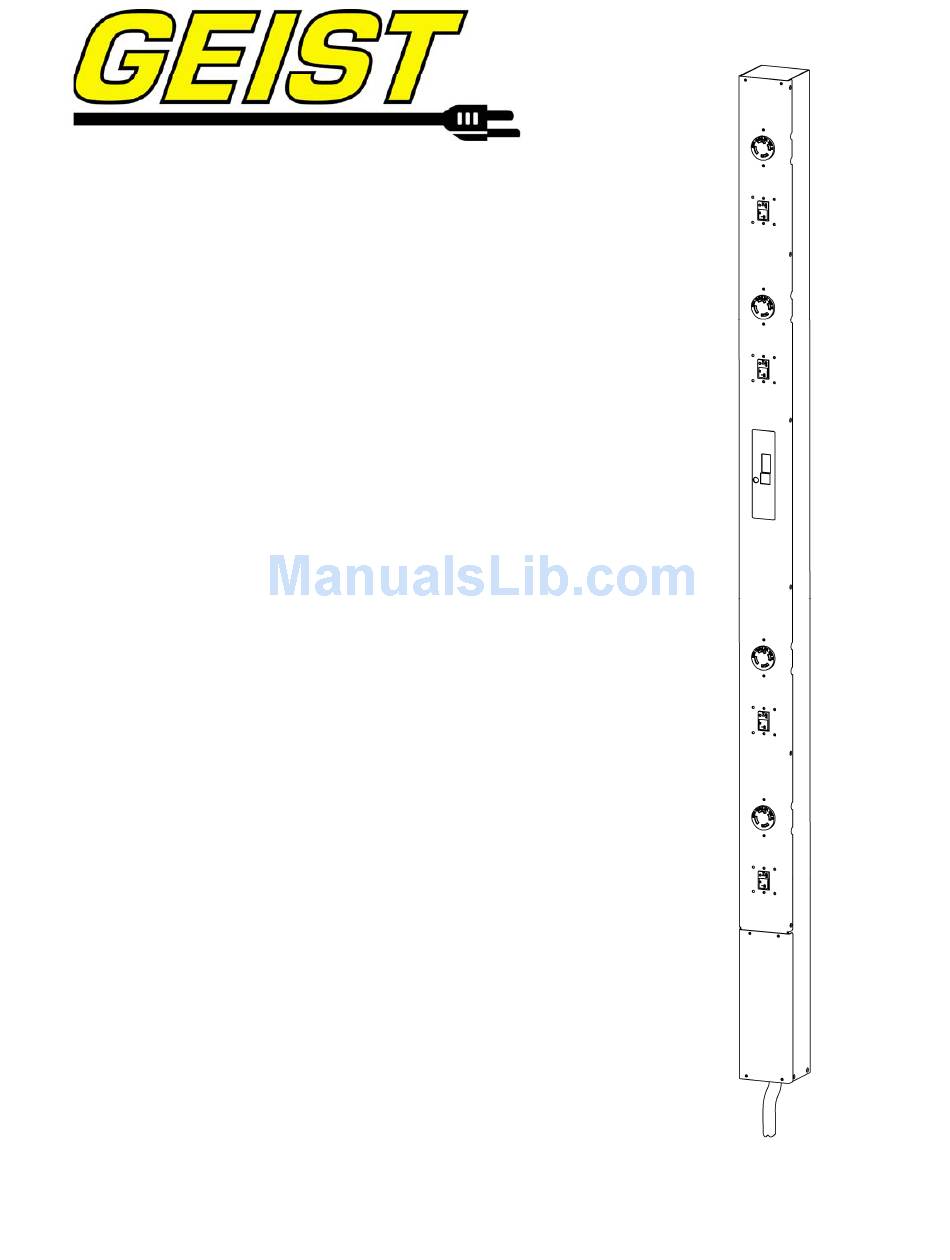

  • Page 1 Instruction Manual Rack Power Distribution Unit ZP Series Geist Manufacturing 1821 Yolande Ave., Lincoln, NE 68521 800.432.3219 | 402.474.3400 | F: 402.474.4369 | www.geistmfg.com...
  • Page 2: Table Of Contents

    Contents Specifications ........................3 Overview Environmental Electrical Receptacle Ratings Networking (For Current Monitoring (EM) Meter Units Only) Data Formats (For Current Monitoring (EM) Meter Units Only) EMC Verification Installation ........................5 Instructions Guidelines Mounting ...........................6 Optional Local Monitoring ....................13 Power Meter Current Meter Three Circuit Current Meter Optional Remote Monitoring....................15 Current Monitoring Meter Overview...
  • Page 3: Specifications

    Specifications Overview The ZP Series products are Power Distribution Units (PDU) intended for connection to a 50-120 Amp AC Mains circuit. The PDUs are designed to be powered by either a single phase or a three phase AC input circuit. Three phase units are configured for a delta input connection. ZP Series PDUs can optionally be configured with a Geist Current Meter that provides local monitoring and display of each output circuit current.
  • Page 4: Data Formats (For Current Monitoring (Em) Meter Units Only)

    Data Formats (For Current Monitoring (EM) Meter Units Only) HTML, SNMP, XML EMC Verification This Class A device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5: Installation

    Installation Instructions 1. Using appropriate hardware, mount PDU to rack (see Mounting section for additional instructions. 2. Connect PDU into de-energized appropriately rated branch circuit with plug or hardwired connection depending on PDU design 3. Connect devices into PDU’s output receptacles. It is recommended that the devices are turned off until all devices are connected to PDU 4.
  • Page 6: Mounting

    Mounting Full Length Bracket Using the full length bracket, mount PDU to rack as shown Mini "L" Brackets (SLB-4) Using the mini “L” brackets, attach PDU to rack as shown GM1099.doc Revision Date: 1/25/2011...
  • Page 7: Vertical Extension Brackets (Vcb-1)

    Vertical Extension Brackets (VCB-1) Using the vertical extension brackets, attach PDU to rack as shown Toolless Mounting Hardware (11621) Secure toolless mounting buttons to PDU as shown. Use toolless buttons with key-holed slots built into cabinet or with optional Geist key-holed brackets. GM1099.doc Revision Date: 1/25/2011...
  • Page 8: Toolless Full Length Bracket (Tlfl)

    Toolless Full Length Bracket (TLFL) Using full length toolless bracket and toolless mounting buttons, attach PDU to rack as shown Single Side Mount 2 Unit Brackets (TSMX2) Using single side mount 2 unit brackets and toolless mounting buttons, attach PDU to rack as shown GM1099.doc Revision Date: 1/25/2011...
  • Page 9: Offset/Side Mount Brackets (Ezb-1)

    Offset/Side Mount Brackets (EZB-1) Using the offset/side mount brackets, attach PDU to rack as shown. 7" Extension Brackets (XB-7) Using the 7” extension brackets, attach PDU to rack as shown GM1099.doc Revision Date: 1/25/2011...
  • Page 10: Flush Mount Brackets (Fm)

    Flush Mount Brackets (FM) Using flush mount brackets, attach PDU to rack as shown Adjustable Mount Brackets (AM) Using adjustable mount brackets, attach PDU to rack as shown GM1099.doc Revision Date: 1/25/2011...
  • Page 11: Panel Mount Brackets (Pm)

    Panel Mount Brackets (PM) Using panel mount brackets, attach PDU to rack as shown 23" Conversion Mounting Brackets (23-RM) Using conversion mounting brackets, attach 19” PDU to 23” rack as shown GM1099.doc Revision Date: 1/25/2011...
  • Page 12: Cable Mount Bracket (Cmb-1)

    Cable Mount Bracket (CMB-1) Attach cable mount bracket to PDU as shown; use tie-wraps to secure cords to bracket 19" Horizontal/Panel Mount Brackets (7938) Using the 19” horizontal/panel mount brackets, attach PDU to rack as shown GM1099.doc Revision Date: 1/25/2011...
  • Page 13: Optional Local Monitoring

    Optional Local Monitoring Power Meter The Geist PM-1 power meter is a low-power, high accuracy meter capable of measuring true RMS Current, Voltage, Power, and Power Factor. These values are individually shown on an easy to read, 4-digit LED Display, which continuously scrolls through the four different measured values.
  • Page 14: Three Circuit Current Meter

    Three Circuit Current Meter The Geist CM-3 current meter is a low-power, high accuracy meter capable of measuring true RMS Current. The value of current per output circuit is shown on an easy to read, 4-digit LED Display. The display continuously scrolls through the three different measured values of output circuit current.
  • Page 15: Optional Remote Monitoring

    Default gateway: 192.168.123.1 Actual configuration of circuits measured by Current Monitoring Meter is PDU model specific. Please contact Geist Manufacturing’s Customer Service department with questions on measurement configuration of Current Monitoring Meters. In some configurations, leaving the gateway field blank may resolve connectivity issues.
  • Page 16: Typical Network Card Settings For Pc

    Click “OK” twice. You can now access the unit using your web browser at the permanent IP address of 192.168.123.123. Typical Network Card Settings for PC or Laptop to connect to default IP address First time setup (MacOS 10.5 and 10.6): Open System Preferences via the Dock or the Apple menu.
  • Page 17: Macos X Network Settings For Initial Setup

    MacOS X network settings for initial setup Connecting to the PDU using a web browser GM1099.doc Revision Date: 1/25/2011...
  • Page 18 LED Display Each PDU has a built-in 4-digit LED display mounted midway down the chassis. The display scrolls through the most recent current measurement (in amps) for each circuit, one at a time. It displays a circuit name, pauses, and then displays the measurement. Momentarily press the “Pause Scroll/IP Address Reset”...
  • Page 19 Rebooting the Meter Should an Current Monitoring Meter with firmware version 1.36 or higher installed stop responding to network traffic, it is possible to restore functionality by rebooting the meter without removing power from the PDU it is enclosed in. To reboot the meter, press and hold the “Pause Scroll/IP Address Reset”...
  • Page 20: Getif Configuration Example

    Sample Usage The simplest way to get data from a Current Monitoring Meter into a script is via the XML page. Simply performing an HTTP GET (as a web browser does) on http://<IP address of meter>/data.xml will download the XML file. The following examples assume that the meter’s IP address is 192.168.123.123.
  • Page 21: Satellite Current Monitoring Meter Overview

    Actual configuration of circuits measured by Current Monitoring Meter is PDU model specific. Please contact Geist Manufacturing’s Customer Service department with questions on measurement configuration of Current Monitoring Meters. Satellite Current Monitoring Meter unit and master unit must be grounded to the same ground.
  • Page 22: Dm-16 Pdu Display On R-Series Master Unit

    LED Display Each PDU has a built-in 4-digit LED display mounted midway down the chassis. The display scrolls through the most recent current measurement (in amps) for each circuit, one at a time. It displays a circuit name, pauses, and then displays the measurement. Momentarily press the “Scroll”...
  • Page 23: Db-9 To Rj-12 Pin-Out Diagram

    Serial Communication Satellite Current Monitoring Meter is also capable of serial communication via a serial terminal or console. The RJ-12 port on the unit can be connected to other serial devices via an adapter cable. The serial interface can be used to view unit version, # of channels, and current measurement data.
  • Page 24: Service/Tech Support

    Service/Tech Support Service and Maintenance No service or maintenance is required. Do not attempt to open the PDU or you may void the warranty. No serviceable parts inside. It is recommended that power be removed from the unit before installing or removing any equipment. More Technical Support http://www.geistmfg.com (800) 432-3219...
  • Page 25: Table Of Figures

    Table of Figures Full Length Bracket...................................6 Mini "L" Brackets (SLB-4) ..............................6 Vertical Extension Brackets (VCB-1) ............................7 Toolless Mounting Hardware (11621)............................7 Toolless Full Length Bracket (TLFL)............................8 Single Side Mount 2 Unit Brackets (TSMX2) .........................8 Offset/Side Mount Brackets (EZB-1)............................9 7" Extension Brackets (XB-7)..............................9 Flush Mount Brackets (FM) ..............................10 Adjustable Mount Brackets (AM)............................10 Panel Mount Brackets (PM) ..............................11...
  • Page 26: Revision History

    Revision History Revision Date Notes Approved By 5/20/2010 Original Published Version 7/1/2010 Minor Text Updates 1/24/11 Added Satellite Current SC & BP Monitoring GM1099.doc Revision Date: 1/25/2011...
