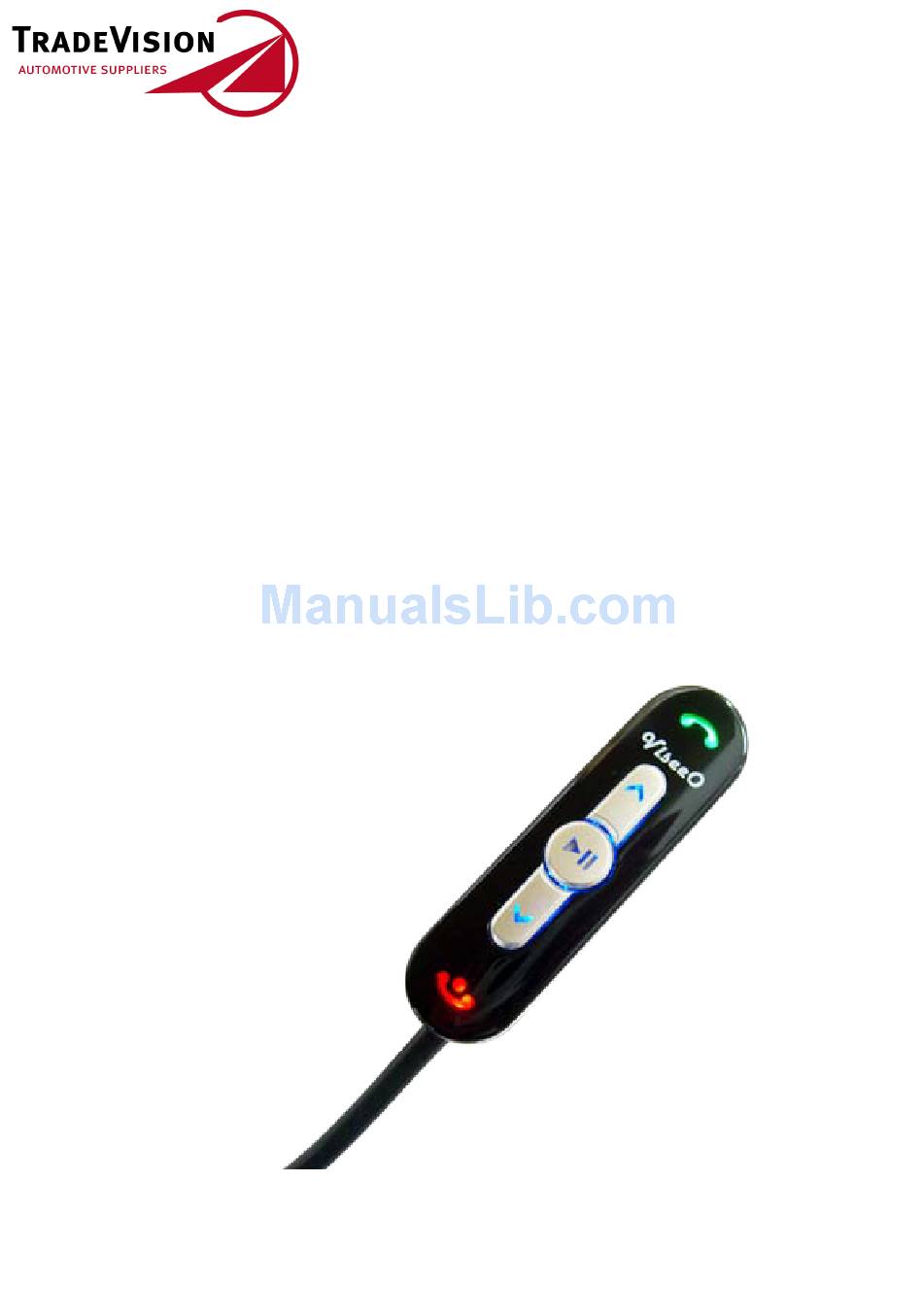

- Page 1 CK360 MUSIC BLUETOOTH CAR KIT VK-Q1 Installation Instruction & User Manual VERSION-USERINST20090505VKQ1 www.tradevision.nl Item No.: P0VK-Q1001...
- Page 2 Limitation of Liability While reasonable efforts have been made to ensure the accuracy of this manual, the manufacturer and distributor assume no liability resulting from errors or omissions in this manual, or from the use of the information contained herein www.tradevision.nl...
-
Page 3: Table Of Contents
Installing the Microphone ........14 3. Basic Operation .............. 15 Basic Operation 1 > Understanding your Remote Control ..............15 Basic Operation 2 > Pairing for the first time ..16 Basic Operation 3 > Redial the last call made, www.tradevision.nl... - Page 4 Call Hold ..............25 5. Multimedia Function ............27 Using the Media Player Keypads ......27 6. Bluetooth Firmware Update ..........28 Upgrading your unit ..........28 Checking the Bluetooth firmware version ....28 7. Trouble Shooting ............29 www.tradevision.nl...
-
Page 5: Introduction & Foreword
Combing the elegance and simplicity VK-Q1 is one of most friendly handsfree car kits around. Using the stylishly designed wired remote control you can easily operate Bluetooth handsfree functions that allow you to pair with multiple phones so you can easily answer an incoming call, or dial out the last call without taking out your mobile phone. -
Page 6: Important Note On Safety
Unit Installation – Installing the VK-Q1 Music Bluetooth Handsfree Car Kit requires specialized knowledge and skills. Incorrect installation may cause damage to your VK-Q1 unit and/or your vehicle! Therefore, it is strongly advised that the system be installed by a qualified professional. -
Page 7: Contents
CK360 MUSIC BLUETOOTH CAR KIT 1. Contents VK-Q1 package is divided into two types of components: core components, and optional components. Carefully unpack the VK-Q1 Bluetooth Handsfree Car Kit and check that the following items are included: Core Components... -
Page 8: Optional Components
CK360 MUSIC BLUETOOTH CAR KIT Optional Components Standard Option 1 (B) Option 2 (H) External Speaker ISO1 ISO2 Power Cable Power Cable Fuse set Fuse set Optional Accessories Note: Please contact your dealer for availability. Various Phone Holders www.tradevision.nl... -
Page 9: Installation
CK360 MUSIC BLUETOOTH CAR KIT 2. Installation This section demonstrates how to set up and install the VK-Q1 into a vehicle. Installing the Junction Box The Car Kit is designed to work with the 12/ 24-volt power supply of the vehicle. Refer to the following to install the junction box in a vehicle. -
Page 10: Connecting The Power Supply
Do not connect the blue cable to the +12/ 24V permanent. Doing so may discharge the battery of the vehicle and prevent the Car Kit from being reset. Please do not attempt to install the unit by yourself. Always consult professional installer for power cable installation. www.tradevision.nl... -
Page 11: Connecting Accessories
Control driver. Ideally, the microphone should be Microphone located in front of the user and above waist height. For best reception, the speaker should be mounted at least 80cm (30 inches) from Speaker the Car Kit’s microphone. www.tradevision.nl... -
Page 12: Installing The Wire Remote Control
Slide the VK-Q1 wired remote control into the holder. Option 1 (Sticker Pad) Option 2 (Screws) -
Page 13: Installing The Microphone
Installing the Microphone Find a suitable place for the microphone. Remove dust and grease from the surface. Remove the protective cover from the sticker pad at the bottom of the microphone. Firmly press the microphone with the sticker pad in place. www.tradevision.nl... -
Page 14: Basic Operation
Press long to enter Mode menu or to enter an Mode, Enter individual mode setting. Press to end a conversation, to reject an incoming End call, Reject call, Voice call, or activate voice dial function in your phone. dial activation www.tradevision.nl... -
Page 15: Basic Operation 2 > Pairing For The First Time
Basic Operation 2 – Pairing for the first time Connecting to the mobile phone for the first time After you turn on the ignition of your car VK-Q1 will be powered up. You will hear the start-up sound. You will need to enter Bluetooth Pairing mode first before you can pair and connect with your mobile phone. - Page 16 Note: Depending on your phone model you may need to perform extra steps to connect your phone with VK-Q1. For instance, you will be asked to allow auto connection in Nokia before you can get connection established. Please select “yes” if you see this message.
-
Page 17: Incoming Call
Basic Operation 3 – Redial the last call made, answering an incoming call VK-Q1 allows you to redial the last call made on your mobile phone. To dial out the last called number: Press & hold the Answer button for 3 seconds to redial the last call made on your phone. -
Page 18: Basic Operation 5 - Adjusting The Conversation
To turn the conversation volume up: Press Volume Up () button to increase volume during a call To turn the conversation volume down: Press Volume Down () button to decrease the volume during a call. Volume Up Volume Down www.tradevision.nl... -
Page 19: Advanced Operation
CK360 MUSIC BLUETOOTH CAR KIT 4. Advanced Operation Advanced Operation 1 – Entering Different Modes Mode function provides ways for user to change the VK-Q1’s setting. There are currently 3 modes: Bluetooth Pairing Mode (Pairing with your phone) FM Setting Mode (FM setting for music playing) -
Page 20: Advanced Operation 2 > Pairing Mode & Multiple
Advanced Operation 2 – Pairing Mode & Multiple Pairing In order to establish handsfree function for your mobile phone you will need to pair and connect your phone with VK-Q1. To enter pairing mode: Press & hold Play (II) button for 3~5 seconds until you hear “Mode”. - Page 21 Note: The last connected phone will have the priority to connect with VK-Q1. For example, if you have paired & connected Phone A, B, C in order respectively. Phone C which is the most recent device to connect VK-Q1 will have the higher priority to connect with VK-Q1, Phone B will be the next in priority and Phone A the last.
-
Page 22: Advanced Operation 3 > Fm Settings
FM Memory 1, FM Memory 2 or FM Memory 3. To setup the FM frequency in different FM Memory: Select the desired FM memory channel. Press Play (II) button to enter the FM Memory Setting. Press Volume Up () to increase the FM frequency or www.tradevision.nl... -
Page 23: Advanced Operation 4 > Master Reset
Play (II) button. This frequency will be memorized and read out. You can set another FM memory channel by choosing another FM channel using the volume keys. VK-Q1 will use the last selected FM memory as the main FM channel to broadcast your music or handsfree. ... -
Page 24: Advanced Operation 5 > Voice Dial Activation
Advanced Operation 5 – Voice Dial Activation Some mobile phones have built-in Voice Dial function. You can use this function when you use VK-Q1. To activate voice dial: Press & hold End key until you hear “voice dial” sound which indicates VK-Q1 has activated your mobile phone’s... - Page 25 Press Answer when you hear the tone for second incoming call. To switch back to the first call: 1. Press Answer again to switch between the second incoming call and the first one. Call hold & release (during a call) www.tradevision.nl...
-
Page 26: Multimedia Function
To pause a playing song: Press Play (II) button to pause a Previous song playing song. Play/Pause song Note: Media player will not function during a Next song call or under Mode. The buttons are only functional in standby mode. www.tradevision.nl... -
Page 27: Bluetooth Firmware Update
To check the Bluetooth firmware version: Make sure VK-Q1’s power is off (i.e. engine is off) Press & hold the End button and turn on the VK-Q1 power on (i.e. turn the engine on). Blue LED light should starts flashing. -
Page 28: Trouble Shooting
My car kit can not control Check if your phone is the music. connected to VK-Q1. Check if you are on the right FM channel. Make sure your phone is ... - Page 29 For more trouble shooting information please visit our website FAQ section to find out. If you have questions you are welcome to submit your technical issue on our website at www.viseeo.com. www.tradevision.nl...
- Page 30 CK360 MUSIC BLUETOOTH CAR KIT www.viseeo.com www.tradevision.nl...
