ViseeO MBU-3000 User Manual

ViseeO MBU-3000 User Manual

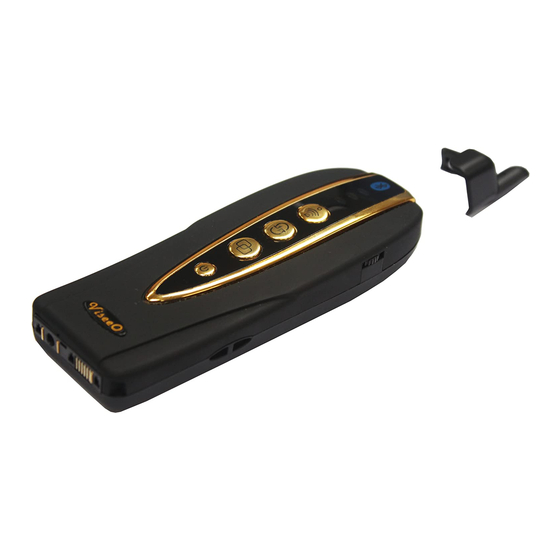

Bluetooth upgrade adaptor

Advertisement

MBU-3000 User Instruction
User Manual
Preface
This publication, including all photographs, illustrations and software, is
protected under international copyright laws, with all rights reserved. Neither this
manual, nor any of the material contained herein, may be reproduced without
the express written consent of the manufacturer, September 2012.
Trademarks
Other product names mentioned herein are used for identification purpose only
and may be trademarks and/or registered trademarks of their respective
companies.
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this manual,
the manufacturer and distributor assume no liability resulting from errors or
omissions in this manual, or from the use of the information contained herein.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBU-3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for ViseeO MBU-3000

  • Page 1 MBU-3000 User Instruction User Manual Preface This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without the express written consent of the manufacturer, September 2012.
  • Page 2 MBU-3000 User Instruction Foreword & Important Note on Safety!! (MUST READ BEFORE STARTING) Please read this note before you install and use MBU-3000 Bluetooth Upgrade Adaptor! Congratulation on becoming the MBU-3000 owner! ViseeO MBU-3000 is the latest and one of the simplest Bluetooth Handsfree System ever designed for your Mercedes Benz.
  • Page 3 MBU-3000 User Instruction avoid phone call during a difficult and complex traffic situation. Warning!!! Do not attempt to press MBU-3000’s button while driving at the same time! Use Only Approved Replacement Parts Please always use official parts for your ViseeO unit as unknown spare or...
  • Page 4: Table Of Contents

    MBU-3000 User Instruction Table of Content 1. Core Components..........................5 2. Understanding your MBU-3000 buttons and LED indicators ............5 3. Identify your cradle and software settings ..................6 6150 Cradle............................6 6210 Cradle............................7 6310/6310i Type 1 ..........................7 6310/6310i Type 2 ..........................8 4. Installing the main unit .........................9 5.
  • Page 5: Core Components

    MBU-3000 User Instruction 1. Core Components Carefully unpack your MBU-3000 and ensure the following items are not missing: Main Unit ♦ Dummy Antenna ♦ CPU Upgrade Cable ♦ 2. Understanding your MBU-3000 buttons and LED indicators 1. Pairing/Bluetooth connection indicator 2.
  • Page 6: Identify Your Cradle And Software Settings

    MBU-3000 User Instruction 3. Identify your cradle and software settings Your MBU-3000 is designed to work with 4 different types of Mercedes original cradles: I. 6150 II. 6210 III. 6310/6310i (Type 1) IV. 6310/6310i (Type 2) Once you have determined the cradle type you will need to choose the right software setting on your MBU-3000 so it can communicate with your original cradle.
  • Page 7: 6210 Cradle

    MBU-3000 User Instruction 6210 Cradle Software A Required For Nokia 6210 Software B Required Note: If you have a Nokia 6210 cradle on your Mercedes, it is advised that you try both software first to decide which one is the smoothest setting to use with your Comand console.
  • Page 8: 6310/6310I Type 1

    MBU-3000 User Instruction 6310/6310i Type 2 Software B Required For Nokia 6310/ 6310i Type 2 Here is a software summary table below: Software A Software B Cradle 6150 6210 6310/6310i Software Type...
  • Page 9: Installing The Main Unit

    Mic Volume Up Once you have set up the microphone level you must soft reset MBU-3000 to allow the setting to become effective (Please refer to Section 15. Soft Reset” “...
  • Page 10: Pairing

    MBU-3000 User Instruction 6. Pairing Place MBU-3000 on the original cradle, and turn on audio system to power up the unit. Press and hold the Pairing Mode button on the device for 5 seconds or more until the Bluetooth connection indicator starts flashing to indicate the pairing mode has been activated.
  • Page 11: Phones Connection Priority

    MBU-3000 User Instruction 8. Phones Connection Priority MBU-3000 can be paired up to 4 mobile phones with the highest priority always goes to the most recent connected phone and lowest priority to the earliest connected one. If no more pairing space is...
  • Page 12: Making And Receiving A Phone Call

    MBU-3000 User Instruction 10. Making and Receiving a Phone Call Once you have connected your phone with MBU-3000 you will be able to make or receive a phone call using the Comand console’s keypads or the keypads on your steering wheel if your vehicle supports it. To make a phone call, please make sure Comand console displays “In...
  • Page 13: Note On Independent Phonebook

    On/Off” for further information). If this function is already on and you are still unable to sync it is very likely that your phone does not support MBU-3000’s phonebook sync protocol. You can check your phone model against MBU-3000’s compatibility list...
  • Page 14: Phonebook Type Management

    MBU-3000 is almost instant but for others it may take longer. The transfer from MBU-3000 to the Comand console may take a while depending on the phonebook size. Once transfer is completed you will be able to see the phonebook entries when accessing the TEL Phonebook screen.
  • Page 15 Type phonebook selected Green and Blue LED Off: All Type phonebook selected Press the Phonebook Type button for once to select between different phonebook types for sync Note: Once you have chosen the desired phonebook types MBU-3000 will resend the...
  • Page 16: Sync On/Off

    MBU-3000 User Instruction phonebook into the Comand console this will cause a temporary disconnection between MBU-3000 and Comand console. After the connection is re-established please wait until transfer is completed before accessing the phonebook Tips: If you wish to exclude some contacts from the phonebook displayed on the Mercedes screen then simply edit these numbers on your mobile phone or outlook program and categorize them in the phonebook types other than the ones you want to select for auto sync.
  • Page 17: Voice Assistant Activation (Siri Function Activation)

    This function will work with iPhone 4S or iPhone 5 SIRI and other phones that are equipped with compatible voice command functions. Once you activate SIRI using Comand console keypads MBU-3000 will open up the microphone and speaker for 60 seconds. During this time if SIRI asks you questions back then you will be able to talk to SIRI without reactivation.
  • Page 18: Master Reset (Factory Default Setting)

    To clear all pairing information and phonebook please enter the master reset mode by pressing and hold the Reset button for 5 seconds or more until all LED lights on MBU-3000 become solid. Then press the Reset button again to confirm the master reset. If you have activated the master reset and wish to cancel it please press any other button to cancel it when master reset mode is activated (i.e.
  • Page 19: Privacy Call

    Call button to activate the switch. As soon as you activate the function MBU-3000 will disconnect with the current phone and re-connect with the next phone in priority. If you wish to perform this function again you must wait for the connection to be established before the Comand console will allow you to dial again.
  • Page 20: Check Software Version

    To quickly activate sync, please press 8*0# on your Comand console keypads and press Call button to activate. This will force MBU-3000 to turn the Sync on and immediately activate the Sync. For further information on Sync On/Off function please refer to Section 13. “Sync On/Off”...
  • Page 21: Software Upgrade

    MBU-3000 properly. If this is the case you will need to check if you have the latest the software on your MBU-3000 Section 19. Check Software Version (Please refer to “...
