G-Log 760 GPS Recorder
User's Manual
Published 10-June-2011
*Specifications subject to change without prior notice.
© 2011 TRANSYSTEM INC. all rights reserved.
V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-Log 760 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Transystem G-Log 760

  • Page 1 G-Log 760 GPS Recorder User’s Manual Published 10-June-2011 *Specifications subject to change without prior notice. © 2011 TRANSYSTEM INC. all rights reserved. V1.1...
  • Page 2: Table Of Contents

    G-Log 760 GPS Recorder Table of Contents Before you begin ........................3 1-1. Note and Warning ....................... 3 1-2. Introduction ......................... 4 1-3. Features ..........................4 1-4. Applications ........................4 1-5. Package content ........................5 Getting Started ..........................6 2-1. Appearance .......................... 6 2-2.
  • Page 3: Before You Begin

    It is recommended to turn off G-Log 760 while in the hospital. Wireless GPS may interfere with medical equipments which use radio frequency. Store your G-Log 760 in dry/cool places if you are not using G-Log 760 for a long period of time.
  • Page 4: Introduction

    GPS G-Log 760 allows you to log your route by setting the interval of time/ distance/ speed. Easy to use and durable button allow field personal to record point of interest by push of a button. Through user friendly utility, it can display your track on Google Map.
  • Page 5: Package Content

    Congratulations on your purchase of GPS G-Log 760 with Lithium-Ion chargeable battery. Before you start using G-Log 760, please make sure your package includes following items. If any item is damaged or missing, please contact your local dealer at once.
  • Page 6: Getting Started

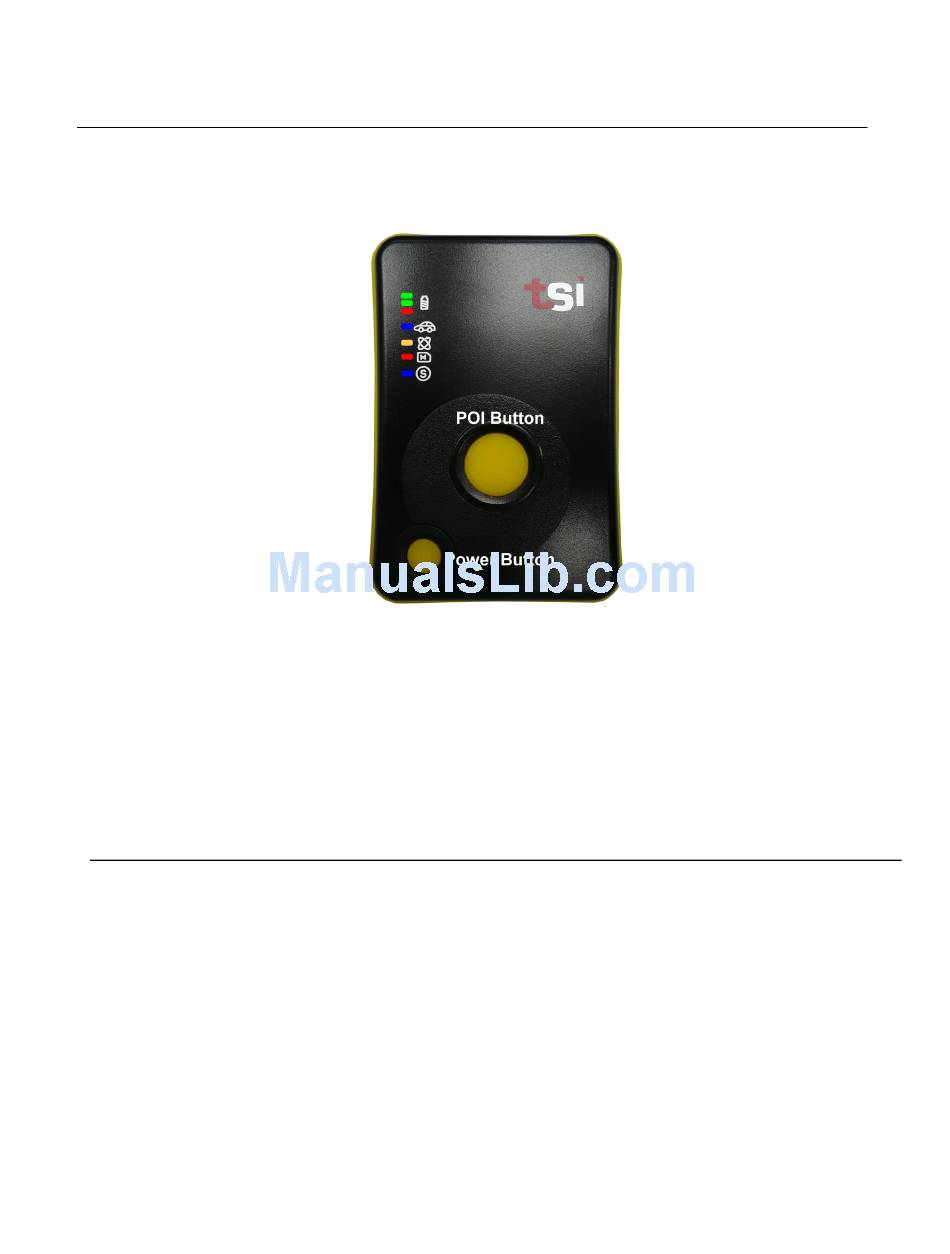

    G-Log 760 GPS Recorder 2. Getting Started 2-1. Appearance 1. Power bottom 2. Push to log (POI) button 3. Smart mode Led (Blue) 4. Memory capacity LED (Red) 5. GPS status LED (Orange) 6. Car mode LED (Blue) 7. Battery status LED (Red/Green) 8.
  • Page 7: Buttons

    Press for 5 seconds to have factory default setting and logged data erased. Please do not turn off the device when memory red color LED is flashing. 2-3. LED Display The G-Log 760 GPS Recorder has following LED displays for status update. Function / Symbol...
  • Page 8: Default Setting

    G-Log 760 GPS Recorder Blinking The device is logging position Blink 3 times POI button is pressed Memory capacity / The memory is >80% full Keep flashing Erasing data Smart log mode on/ vibration sensor on Normal mode on/ vibration sensor off...
  • Page 9: Poi Confirmation

    Sound buzzer alarm (Factory Optional) 2-6 Smart Log G-Log 760 will go into sleep mode and stop logging position if the on-board vibration sensor detects no movement for over 3 minutes. This will help save power and memory space you’re your G-Log 760 stays still.
  • Page 10: Getting Started

    For the 1st time you use the G-Log 760, please charge battery until it is full. Red Power LED will be On during charging cycle and 2 Green LEDs and 1 Red LED will be all On once the charging is completed.
  • Page 11: Helpful Tips

    CD-ROM for data downloading. Further management and analysis of the data can be done via application specific application program. GPS G-Log 760 outputs in popular “.csv” or “.bin” or ".nmea" or ".gpx" or ".kml" format for easy interface to application program.
  • Page 12: Configure Your Gps Recorder

    G-Log 760 GPS Recorder Configure your GPS Recorder GpsView program only supports Microsoft Windows based platform. 3-1. Driver Installation Before the USB connector plugs into your PC/ Laptop, please have your USB Driver installation ready. (Install InstallDriver.exe driver for USB port from CD-ROM.) 3-2.
  • Page 13: Execute Gpsview Program

    And still more options for choice of NMEA output, DGPS…etc. all available through pull-down menus. The default settings for G-Log 760 are: NMEA: GGA, GSA, GSV, RMC Log data format: Date, Time, Fix valid, Longitude, Latitude, Altitude, Speed, Heading, RCR...
  • Page 14: Download Agps

    G-Log 760 GPS Recorder 3-2-3. Download AGPS 1. Start→Control Panel→System→Hardware→Device Management→Connector(COM and LPT)Check Com port position。 2. Open GpsView.exe→Check Baud Rate and Com port→click On V1.1...
  • Page 15 G-Log 760 GPS Recorder 3. Choose Setup 4. Choose Update V1.1...
  • Page 16 G-Log 760 GPS Recorder 5. When Updating now…100%, click Enter complete。 NOTE: When you use AGPS function, we suggest use GpsView to download the AGPS data via USB cable. AGPS data valid for 6 days after each download. V1.1...
  • Page 17 G-Log 760 GPS Recorder 3-3. Download logged data from the device LogView can also be used to extract logged data from your device. Activate LogView and select “Read from device” : The screen will display logged data after extraction as following:...
  • Page 18 G-Log 760 GPS Recorder You can save downloaded data to your PC by select following menu. Different file format such as GPX, NMEA, KML and CSV can be supported. LogView can also be used for following tasks, Erase log data...
  • Page 19 G-Log 760 GPS Recorder 3-4. Mac driver installation Step 1. Clike SiLabsUSBDriverDisk.dmg Step2. Select SiLabsUSBDriverDisk from screen and double click it. V1.1...
  • Page 20 G-Log 760 GPS Recorder Step3. Execute Silicon Labs USB Driver Installer. Step4. Click next button V1.1...
  • Page 21 G-Log 760 GPS Recorder Step5. Select language then click next button. Step6. Click Agree button for continue installation. V1.1...
  • Page 22 G-Log 760 GPS Recorder Step7. Click Install button to execute standard installation. Step8. Input Account and Password then click ok. V1.1...
  • Page 23 G-Log 760 GPS Recorder Step9. After click continues installation button, it will restart PC to save initial setting. Step10. PC will optimize the system first and continue install driver. Step11. When the USB driver was installed successfully, please click restart system button.
  • Page 24 G-Log 760 GPS Recorder Step12. Build a connection between GPS and PC, the system will detected a new Ethernet interface means GPS device. Click cancel button then start application. V1.1...
  • Page 25: Appendix A. Specifications

    G-Log 760 GPS Recorder Appendix A. Specifications General Frequency L1, 1575.42MHZ C/A Code 1.023MHZ Datum WGS84 Performance Characteristics <3m CEP, without aid Accuracy* 2.5m DGPS (WAAS, EGNOS, MSAS) <1s Reacquisition Time* TTFF* 35 / 34 / 1.5s for Cold / Warm / Hot start respectively AGPS* <15s...
  • Page 26 G-Log 760 GPS Recorder Speed 12Mbps Connector Type A female Data Log Memory 64Mbit Way points 250,000 (default) or more Date, Time, Fix valid, Latitude, Longitude, Speed, Height, RCR Log data Log GPS data by time interval/ distance/ speed limit...
  • Page 27: Appendix B. Certification

    G-Log 760 GPS Recorder Appendix B. Certification FCC Notices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interface, and 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 28: Appendix C. Warranty Information

    G-Log 760 GPS Recorder Appendix C. Warranty Information Thank you for your purchase of GPS product from the company. The company warrants this product to be free from defects in materials and workmanship for one year from the date of invoice. The warranty for accessories is six months. The stamp of distributor or a copy of the original sales receipt is required as the proof of purchase for warranty repairs.
