Transystem iGPS-M Pro User Manual

Outstanding high sensitivity gps receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

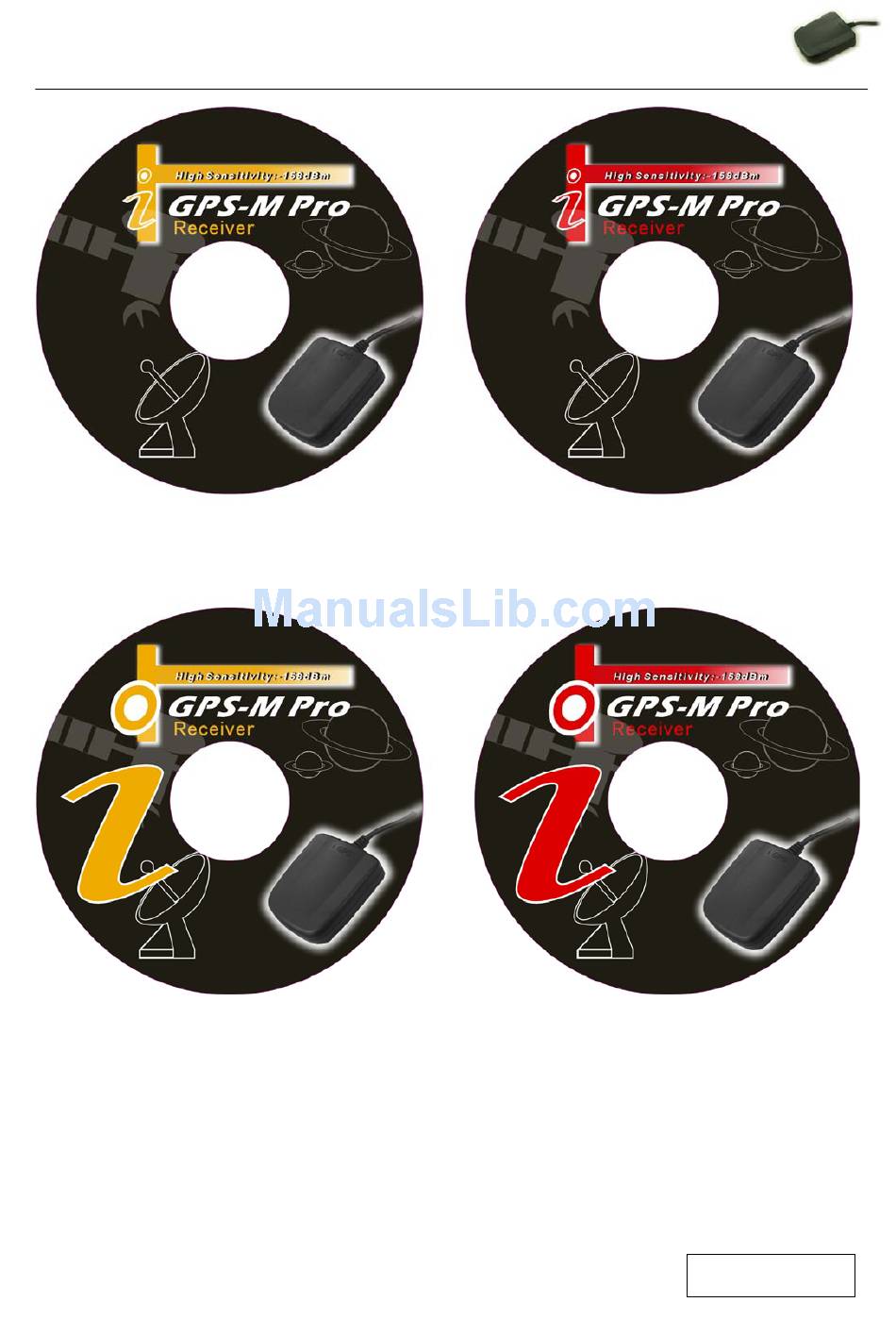

iGPS-M Pro USER'S MANUAL
8029207701A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iGPS-M Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Transystem iGPS-M Pro

Summary of Contents for Transystem iGPS-M Pro

  • Page 1 Pro USER’S MANUAL 8029207701A...

  • Page 2: Table Of Contents

    Pro USER’S MANUAL iGPS-M Pro Introduction ............3 iGPS-M Pro Key Feature ............. 3 Possible Application ............3 Installation Guide ............4 Familiarize your iGPS-M Pro ........... 6 Specifications ............. 6 Interface ..............7 Water-proof housing with magnet on the bottom ......8 LED Light ..............

  • Page 3: Igps-M Pro Introduction

    Undoubtedly, iGPS-M Pro is the best choice for you. Market Leading System Performance Ultra-low power consumption makes iGPS-M Pro the best GPS on the market. Nevertheless, there are no compromises in performance. The iGPS receiver has a navigation sensitivity making it applicable even for extremely demanding applications and environments.

  • Page 4: Installation Guide

    Pro USER’S MANUAL Installation Guide Step I：Check your iGPS-M Pro package Please check the iGPS-M Pro package. If any items are missing or damaging, please contact our distributor immediately. The standard package of iGPS-M Pro contains: iGPS-M Pro Receiver...
  • Page 5 Step III：Check if the LED is on. Once your PC/Lap top or car charger supplies power, the iGPS-M Pro receiver should shine on the LED. At meantime, the LED will be flashing and it means iGPS-M Pro is fixed, enable the positioning function.

  • Page 6: Familiarize Your Igps-M Pro

    Pro USER’S MANUAL Familiarize your iGPS-M Pro Specifications GPS Technology MTK 32 channels Sensitivity -158 dBm (tracking) Update Rate Accuracy Position: Without aid: 3.0 m 2DRMS , < 3m CEP(50%) without SA Velocity: Without aid: 0.1 m/s Time: 50ns RMS...

  • Page 7: Interface

    Interface 1. PS2 interface As shown in the illustration on the right, the length of the wire on iGPS-M Pro receiver is 2 meters. There is a PS-2 connector for the connection to PC/Lap top or handheld device. The pin assignment is shown below.

  • Page 8: Water-Proof Housing With Magnet On The Bottom

    There is an LED light near the output cable on the back of iGPS-M Pro receiver. When the iGPS-M Pro supplied 5V DC power, the LED will be on. It means your PC/Lap top or car charger start to supply power to iGPS-M Pro receiver.
