Automatic Portable
Battery Charger
Copyright © 2010 Monicon Instruments Co., Ltd. All rights reserved. Contents in this
publication may not be reproduced in any form without the written permission from Monicon
Instruments Co., Ltd
PCH-051
PCH-052
User Manual
Tel：886-4-2238-0698
Fax：886-4-2238-0891
Website：http://www.monicon.com.tw
e-mail：sales@monicon.com.tw
Advertisement
Table of Contents
Related Manuals for Monicon Instruments PCH-051
Summary of Contents for Monicon Instruments PCH-051
-
Page 1: Battery Charger

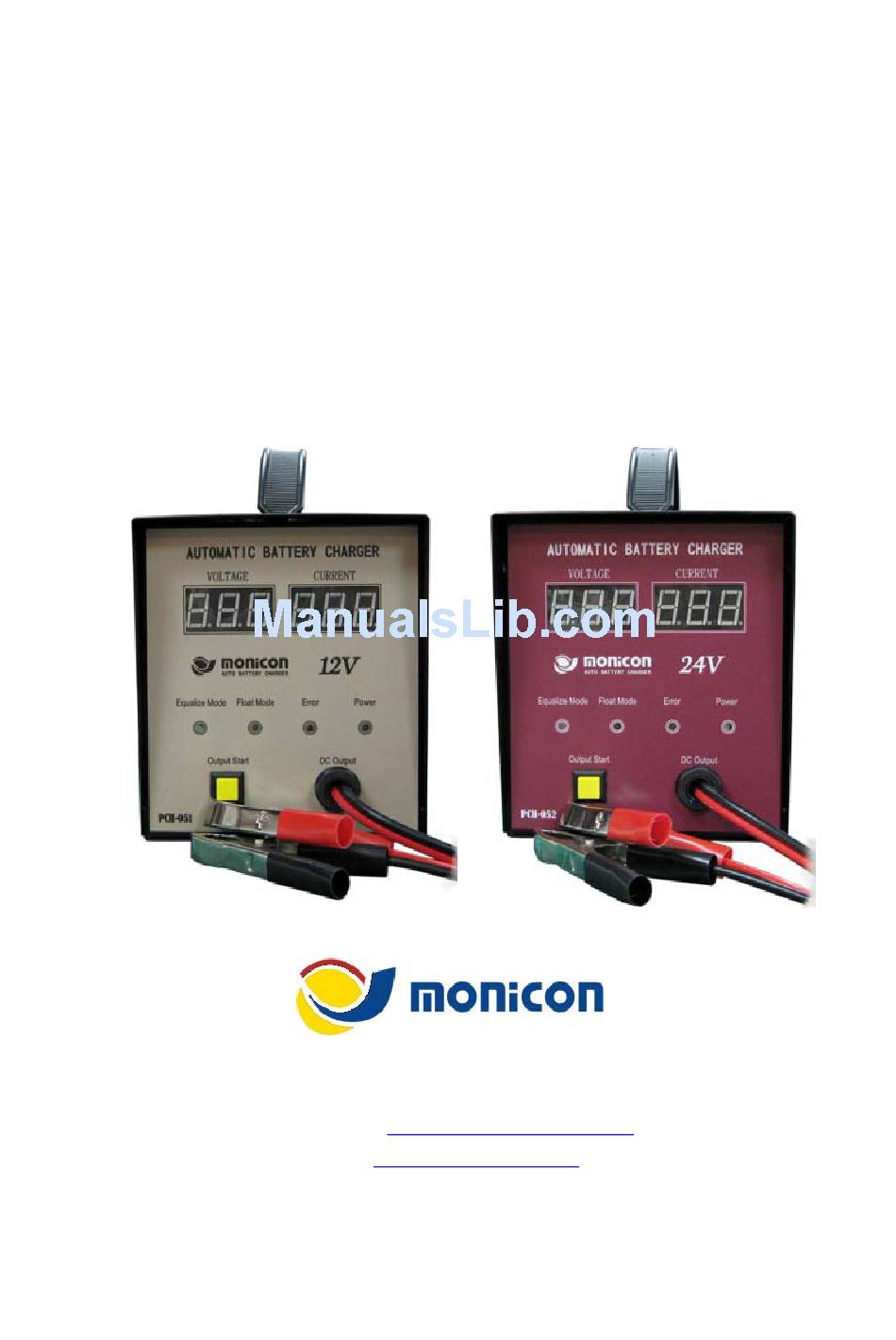

Battery Charger PCH-051 PCH-052 User Manual Tel：886-4-2238-0698 Fax：886-4-2238-0891 Website：http://www.monicon.com.tw e-mail：sales@monicon.com.tw Copyright © 2010 Monicon Instruments Co., Ltd. All rights reserved. Contents in this publication may not be reproduced in any form without the written permission from Monicon Instruments Co., Ltd... - Page 2 6. PCH-051/052 still contains residual electricity even if the power and battery are been removed. 7. Please make sure the AC ground wire from PCH-051/052 is been properly grounded. Improper connection may risk of electrical shock, fire, or injury. 8. Please remove ac power and battery wire before performing cleaning or maintenance.
- Page 3 5. PCH-051/052 is equipped with short circuit, over load, and reverse polarity protections. 6. When the battery is lower than minimum charging voltage, the PCH-051/052 will not output any voltage. Pressing the forced output button, the PCH-051/052 starts charging the battery regardless of the voltage. If error LED lights up, the overload or reverse polarity is occurred, please check the wiring connections.
- Page 4 Frequency: 50/60 Hz DC adjustable power output range: PCH-051 float charging: 12.5～14.5 VDC, factory default: 13.5 VDC (fully charged voltage) PCH-051 bulk charging: 13.5～15.5 VDC, factory default: 14.5 VDC PCH052 float charging: 25.6～27.6 VDC ，factory default: 26.6 VDC (fully charged voltage) PCH052 bulk charging: 26.6～28.6 VDC，factory default: 27.6 VDC...
- Page 5 Monicon Instrument Co.,Ltd. PCH051 / PCH052 3、 Panel Description ： PCH-051/052 (1) Handle (2) DC output voltage (3) Float charging indicator (4) Bulk charging indicator (5) Forced output button (6) DC output clamp (7) Power indicator (8) Error indicator (9) DC output current...
- Page 6 Monicon Instrument Co.,Ltd. PCH051 / PCH052 4、 Dimensions 198.0 mm 121.0 mm...
