Summary of Contents for Monicon Instruments CHR-1445

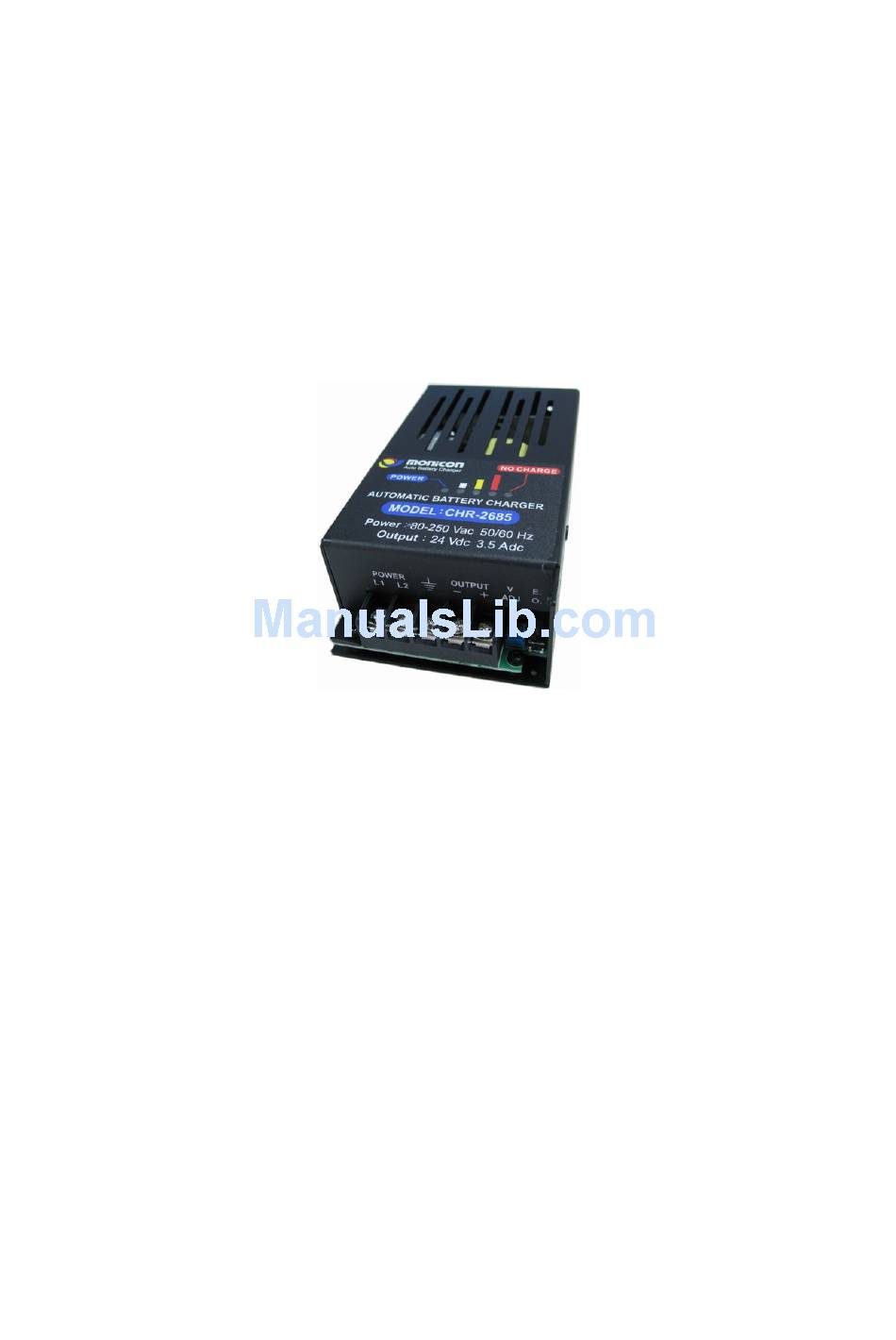

- Page 1 CHR-1445 / 2685 BATTERY CHARGER...
- Page 2 This manual contains important instructions that should be followed during Precaution: installation and maintenance of the generator and batteries. Read the following information carefully before attempting to install, operate Precaution or service this equipment. Also read the instructions and information on tags, decals, and labels that may be affixed to the transfer switch.
- Page 3 NOTE: After this heading, read explanatory statements that require special emphasis. These safety warnings cannot eliminate the hazards that they indicate. Common sense and strict compliance with the special instructions while performing the service are essential to preventing accidents. GENERAL HAZARDS Improper or unauthorized installation, operation, service or repair of the equipment is extremely dangerous and may result in death, serious personal injury, or damage to...
-
Page 4: Specifications
Keep the battery charger enclosure closed and bolted at all times. Only qualified personnel should be permitted access to the charger interior. In case of an accident caused by electric shock, immediately shut down the source of electrical power. If this is not possible, attempt to free the victim from the live conductor but AVOID DIRECT CONTACT WITH THE VICTIM. - Page 5 _________________________________________________________________ 1. Descriptions CHR-1445/2685 , intelligence module, serves lead acid battery at full charging all the time. Short-circuit, Over load, and Over Voltage Protection prevent any damage from lead acid battery. Widely AC input voltage and adjustable DC output voltage realize the ideal of high flexibility. CHR-1285/2485 also in accordance with the principle of high Efficiency at the ratio: at Full Loaded >85% saving more...
- Page 6 4. Installation and Operation 4.1. Line on the L1 and L2 with AC power. Note: there is no AC volt output before line on with the battery. 4.2. Turn off the AC power then put the + and – pole of charger with the + and – pole of battery together then turn on the AC current.
- Page 7 7. Dimension...
- Page 8 8. Safety Precautions When operating your battery charger, basic safety precautions should always be followed to reduce the potential risk of fire, electric shock and/or injury to persons, including the following: Read this owner’s manual thoroughly before operating your battery charger. Do not allow any objects or liquid into the openings of your battery charger.
