Fender SR-6520 Service Manual

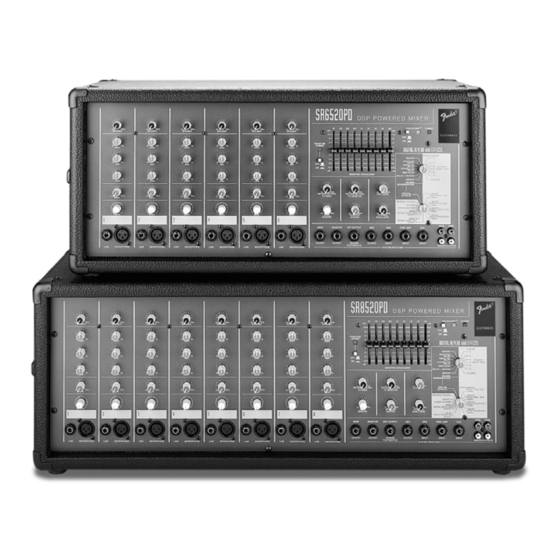

SR-6520 / SR-8520 /P / PD
POWERED MIXERS w/ DIGITAL EFFECTS
CONTENTS:
Notices
Specifications
Circuit description
Parts lists:
Preamp PCB assy
Front panel assy
Pwr amp PCB assy
Rear panel assy
Cabinet assembly
Miscellaneous
Dig rev cntrl
Schematics
Service diagram
Fender Musical Instruments Corp.
7975 North Hayden Road Scottsdale, AZ 85258
SR-6520P p/n 071-6521-100 (120V)
SR-8520P p/n 071-8521-100 (120V)
SR-6520PD p/n 071-6521-200 (120V)
SR-8520PD p/n 071-8521-200 (120V)
SERVICE MANUAL
SR-6520P/PD SR-8520P/PD
(These are the model names for warranty claims)
The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is
disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be
disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to
change without notice.
For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used
for post-warranty maintenance and repair.
*
Parts marked with an asterisk ( ) indicate the required use of that specific part. This is necessary for RELIABILITY
and SAFETY requirements. DO NOT USE A SUBSTITUTE!
A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows:
CAPACITOR CODES
CAP AE = Aluminum Electrolytic
CAP CA = Ceramic Axial
CAP CD = Ceramic Disk
CAP MPF = Metalized Polyester Film
CAP MY = Mylar
CAP PFF = Polyester Film/Foil
RESISTOR CODES
RES CC = Carbon Comp
RES CF = Carbon Film
RES FP = Flame Proof
RES MF = Metal Film
RES WW = Wire Wound
1
MARCH 1998

IMPORTANT NOTICE:

HARDWARE CODES
BLX = Black Oxide
CR = Chrome Plated
HWH = Hex Washer Head
M = Machine Screw
NI = Nickel Plated
OHP = Oval Head Phillips
PB = Particle Board
PHP = Pan Head Phillips
PHPS = Pan Head Phillips Sems
SMA = Sheet Metal "A" Point
SMB = Sheet Metal "B" Point
SS = Stainless Steel
TF = Thread Forming
ZI = Zinc Plated
