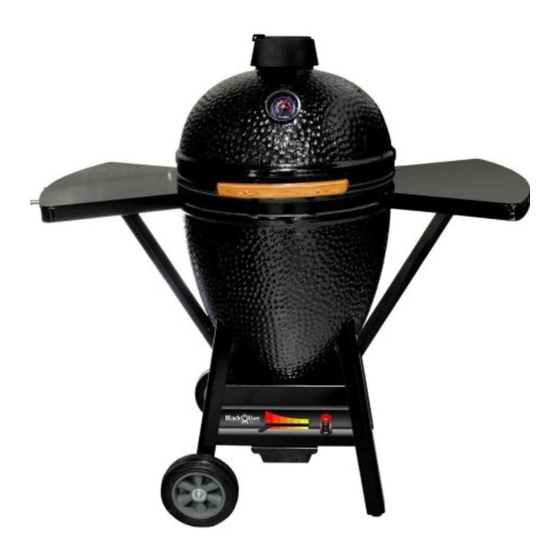

OWNER'S MANUAL
B Y : S H E R W O O D I N D U S T R I E S L T D
OW N ER ' S M AN UAL
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury, or loss of life.
ALWAYS USE PROTECTIVE HEAT PROOF GLOVES when handling hot ceramics or
cooking surfaces, use appropriate protection to avoid burning injuries.
ALWAYS USE CAUTION when setting hot items on other surfaces.
ALWAYS BE AWARE OF FIRE HAZARDS: Do not leave your Black Olive Grill unattended.
FOR YOUR SAFETY: Two people are required to lift and assemble the Black Olive Grill.
Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this grill.
50-2615
Advertisement
Table of Contents
Related Manuals for Black olive Pellet Grill 50-2615
Summary of Contents for Black olive Pellet Grill 50-2615
- Page 1 ALWAYS BE AWARE OF FIRE HAZARDS: Do not leave your Black Olive Grill unattended. FOR YOUR SAFETY: Two people are required to lift and assemble the Black Olive Grill. Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this grill.
-
Page 2: Safety Precautions
After first use, INSPECT all fasteners for tightness The metal band on the Black Olive is designed to keep the top of your grill secure. Due to temperature changes causing expansion and contraction, checking the tightness of these fittings... -
Page 3: Table Of Contents
Safety Precautions .................. 3 Table of Contents ..................5 Specifications ..................6 Installation Instructions ................7 Lighting Instructions ................8 Operating Instructions ................8 Maintenance and Service ................. 10 Black Olive Accessories ................11 Parts Diagram ..................10 Parts List ....................12 Troubleshooting ..................14 Warranty ....................16... -
Page 4: Specifications
SPECIFICATIONS Grilling Area 19 3/8” ( 290 sq in ) Maximum BTU 50,000 * Minimum BTU 5,000 * Hopper Size 11 lbs Ignition Time 2 minutes * Grill Temp Max 650 °F * Electrical Requirements 120 Volts 5 Amps Unit Dimensions H 47”... -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS - Remove the grill from the crate, pallet and packaging - Fold up the left side shelf, if desired, and secure it in place using the supplied hardware as shown below Install flat washers first Tighten wing nuts until shelf is sturdy - Install the vent cap on top of lid by firmly pressing it down onto the collar until it stops and can’t be moved easily -Ensure the grill has the correct clearances from any combustible materials (see below) -
Page 6: Lighting Instructions
LIGHTING INSTRUCTIONS To Start Grill: Empty ash pan and check burn tube bottom holes for blockage. Fill hopper with food grade pellets, then turn knob to START position. If the auger needs to be primed, turn knob to HIGH position for 2 min, then back to START position. To Operate Pellet Grill: Upon ignition, adjust control knob to desired setting. - Page 7 These conditions will cause the pellets to swell inside the grill and clog the hopper tube (see Troubleshooting Section). THE BLACK OLIVE PELLET GRILL IS SAFE AND HAZARD FREE WHEN USED AS INTENDED AND ACCORDING TO SAFETY GUIDELINES, AND WILL PROVIDE YEARS OF TROUBLE-FREE USE AND ENJOYMENT.
-
Page 8: Maintenance And Service
If loose, tighten firmly. MOLD: If the Black Olive Grill is subjected to the elements for an extended length of time and not used, moisture can be trapped inside the grill and areas of mold may appear on the grill’s internal ceramics. -
Page 9: Black Olive Accessories
Grill Cover: Bamboo Side Included Shelves: with your grill is a cover These made from durable vinyl multipurpose shelves with velcro side straps. simply sit on top on the This cover provides all- existing shelves and weather protection and... -
Page 10: Troubleshooting
If no vibration is present the pump is not running. Unplug grill and check electrical connections on base of grill. If air pump will still not run, contact your local Black Olive Dealer. Grill will start but no flame control - Electrical Problem: Unplug the grill and check connections behind the control panel and on grill base. - Page 11 - Incorrect lid alignment: Close the lid of the grill and, using two 7/16” wrenches, loosen the hinge and adjust the lid until it aligns with the bottom properly. Retighten the band. Lid is Heavy to Open -Broken Hinge or Loose Springs: Contact your local Black Olive Dealer for replacement springs. Black Olive ‘Sweating’...
-
Page 12: Warranty
Black Olive Pellet Grill Warranty Sherwood Industries Ltd prides itself in producing the highest level of quality and customer service. The Black Olive Grill is built using only the finest material to create a durable ceramic grill/smoker. Our commitment is backed by our Exclusive Limited Lifetime Warranty to the original purchaser. - Page 13 23. Optional accessories for the Black Olive Grill are covered against defect for a period of one (1) year from purchase. 24. Fading of the BBQ cover is a natural result of exposure to the elements and is not covered by warranty.
- Page 14 SHERWOOD INDUSTRIES LTD 6782 OLDFIELD ROAD, VICTORIA, BRITISH COLUMBIA, V8M 2A3 June 6, 2012 C-13821...
