SpinCore Technologies PA100W Owner's Manual

Rf power amplifier
Hide thumbs Also See for PA100W:
Table of Contents

Advertisement

Quick Links

Download this manual

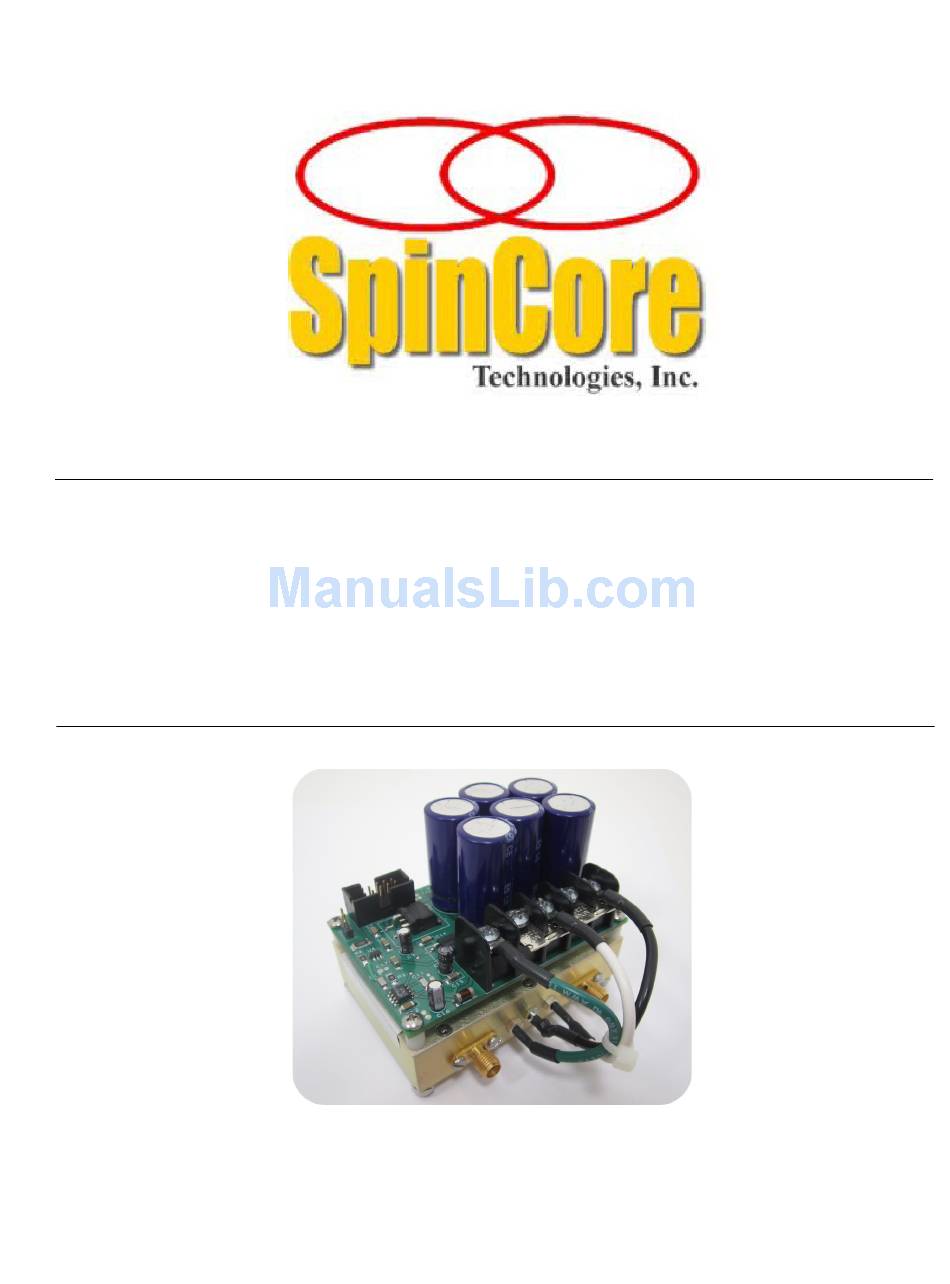

PA100W
RF Power Amplifier
Owner's Manual
SpinCore Technologies, Inc.
http://www.spincore.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA100W and is the answer not in the manual?

Questions and answers

Related Manuals for SpinCore Technologies PA100W

Summary of Contents for SpinCore Technologies PA100W

  • Page 1 PA100W RF Power Amplifier Owner’s Manual SpinCore Technologies, Inc. http://www.spincore.com...
  • Page 2 SpinCore Technologies, Inc. makes every effort to verify the correct operation of the equipment. This equipment version is not intended for use in a system in which the failure of a SpinCore device will threaten the safety of equipment or person(s).

  • Page 3: Table Of Contents

    DC Power Input Connector ..................10 4. PA100W RF Module Enclosure Options ..............10 1) PA100W module enclosed in a single bay enclosure with an integrated +24 V power supply – Figure 7...................11 2) PA100W module enclosed in a dual bay enclosure with an integrated +24 V power supply –...

  • Page 4: Precautions

    PA100W RF Power Amplifier I. Precautions Working with RF power amplifiers can be dangerous and even fatal if not handled properly. Output voltages can reach values greater than 200 V peak-to-peak and can be fatal. Follow these steps to avoid damaging the amplifier or inflicting serious injuries.

  • Page 5: Pa100W - 100 W Power Amplifier Module

    The PA100W power amplifier module measures 3.15" x 2.54" x 2.33" (80 x 65 x 59 mm). It can be delivered as a module (with the blanking circuitry) or in various enclosures - see the “Configuration Options”...

  • Page 6: Specifications

    100 MHz 1.56 Table 2 shows data for the PA100W when supplied by +28 V. The PA100W is capable of outputs greater than 100 W - however, it is important not to exceed the input power parameters for the specific operating frequency (Table 2) to avoid damaging the module. Also note that if the power amplifier is supplied by a +24 V DC source the gain is reduced and a maximum value of approximately 150 W PEP can be achieved.

  • Page 7: Pa100W Rf Module With De-Blanking Circuitry

    3. PA100W RF Module with De-blanking Circuitry This configuration does not have any enclosure for the PA100W RF module. It includes the de- blanking circuitry mounted on top of the power amplifier to enable it when a TTL pulse is applied to the control input pin.

  • Page 8: Ttl Control Input Connector

    TTL values of 3.3V for a logical high, 0V for logical low. A logical high signal is required to deblank (enable) the PA100W. In testing, the TTL deblanking pulse is typically applied 300 us prior to the application of the RF pulse. The end of the deblanking signal coincides with the end of the RF pulse.
  • Page 9 PA100W RF Power Amplifier The timing diagram of a typical application of PA100W with the deblanking pulse applied prior to the RF pulse is presented in Figure 4, below. The top trace is the deblanking signal, the trace below represents the input signal, and the bottom trace is the RF output. In the lower panel, an expanded view of the RF output pulse is depicted.

  • Page 10: Dc Power Input Connector

    (Molex part 38720-6305). 4. PA100W RF Module Enclosure Options The PA100W RF power amplifier can be delivered in various enclosures which protect the RF power amplifier module and include an AC/DC power supply and internal RF cables. Configurations “1” and “2” below have power inputs of 90V-264V AC. All enclosures have the RF input/output signals provided on external BNC connectors.

  • Page 11: Pa100W Module Enclosed In A Single Bay Enclosure With An Integrated +24 V Power Supply - Figure 7

    PA100W RF Power Amplifier 1) PA100W module enclosed in a single bay enclosure w ith an integrated +24 V power supply – Figure 7 Single bay enclosure additional specifications include: Excellent EMI/RFI shielding that meets FCC & CE regulations. •...
  • Page 12 PA100W RF Power Amplifier Figure 8: PA100W RF power amplifier - enclosed in dual bay enclosure Back Panel Connections (Figure 9): AC (C14) socket for power. • RF In – BNC input signal connection to amplifier (not to exceed 1W).

  • Page 13: Pa100W Module Fully Enclosed In A Rack-Mount Enclosure

    PA100W RF Power Amplifier 3) PA100W module fully enclosed in a rack-mount enclosure vailable upon request, please contact SpinCore directly for your custom quote) Rack-mount enclosure additional specifications include: - Industrial steel 4U rack-mount enclosure. - High quality quiet +24 V switching power supply.

  • Page 14: Typical Set-Up For Nmr Experiments

    SpinCore's iSpin-NMR system to run NMR experiments. Note: It is not necessary to use iSpin-NMR with the PA100W. Figure 11: A typical NMR setup with iSpin-NMR, and PA100W with enclosure. Note: It is not necessary to use iSpin-NMR with the PA100W.

  • Page 15: Related Products And Accessories

    3. SpinCore RadioProcessor: A complete single-card solution for RF pulse generation and acquisition, the. For more information, please visit http://www.spincore.com/products/RadioProcessor/ 4. If you require a custom power level, please inquire with SpinCore Technologies through our contact form, which is available at http://www.spincore.com/contact.shtml IV.
