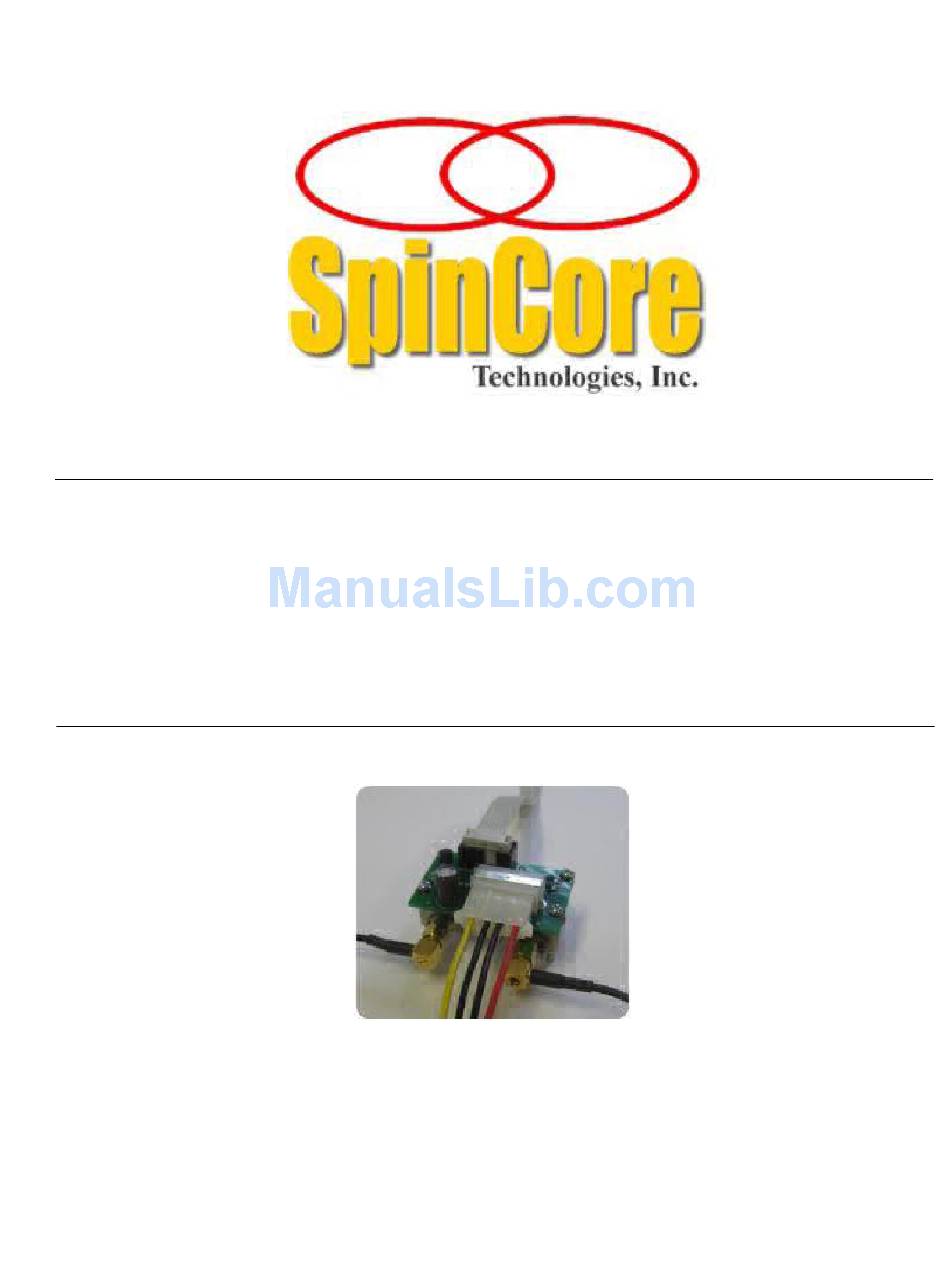

  • Page 1 RF Power Amplifier PA10W Owner’s Manual SpinCore Technologies, Inc. http://www.spincore.com...
  • Page 2 SpinCore Technologies, Inc. makes every effort to verify the correct operation of the equipment. This equipment version is not intended for use in a system in which the failure of a SpinCore device will threaten the safety of equipment or person(s).

  • Page 3: Table Of Contents

    Table of Contents I. Precautions ....................4 Connecting & Disconnecting Power Amplifiers............4 Power Considerations....................4 II. PA10W – 10 W Power Amplifier Module ........... 5 1. Overview ........................5 2. Electrical Specifications .................... 5 3. PA10W RF Module with Deblanking Circuitry ............6 RF Input and Output Connectors................6...

  • Page 4: Precautions

    RF Power Amplifier PA10W I. Precautions Working with RF power amplifiers can be dangerous and even fatal if not handled properly. Output voltages can reach values greater than 90 V peak-to-peak and can be fatal. Follow these steps to avoid damaging the amplifier or inflicting serious injuries.

  • Page 5: Pa10W - 10 W Power Amplifier Module

    MRI system. See the “Configuration Options” section later in this document for more information. The use of a low pass (or band pass) filter at the output of the PA10W is recommended to reduce high frequency noise and improve performance.

  • Page 6: Pa10W Rf Module With Deblanking Circuitry

    Figure 1: PA10W RF power amplifier module RF Input and Output Connectors A top view of the PA10W module depicting RF input and output connectors is shown on the next page in Figure 2. When connecting the PA10W power amplifier, the RF signal source should be connected to the SMA jack on the right hand side (top view) of the circuit (RF in).

  • Page 7: Ttl Control Input Connector

    TTL values of 3.3V for a logical high, 0V for a logical low. A logical high signal is required to deblank (enable) the PA10W. The deblanking bit must be set at least 3 ms prior to sending the RF signal or optimal power will not be achieved.

  • Page 8: Dc Power Input Connector

    RF Output Figure 4: Representation of the deblanking and RF input and output signals to the PA10W. The PA10W requires at least 3.0 ms of deblanking time prior to the RF pulse for full output power. DC Power Input Connector The PA10W RF power amplifier has a 4-pin input power connector.

  • Page 9: Pa10W Rf Module Enclosure Options

    PC power supply connector or Molex part 0015244048. 4. PA10W RF Module Enclosure Options The PA10W RF power amplifier module can be delivered in various external enclosures which protect the RF power amplifier circuitry and include an AC/DC power supply, internal RF cables and output low-pass (or band-pass) filter (please specify your operating frequency at the time of purchase).

  • Page 10: Pa10W Module Enclosed With Ispin-Nmrtm System (Figure 7)

    -High quality 80 Watt AC input switching power supply. -Dimensions are approximately 11” x 7” x 6.75” (28 x 18 x 17 cm). Figure 7: PA10W RF power amplifier – enclosed with iSpin system. 3) PA10W module in Lightweight aluminum enclosure (Figure 8) Small aluminum enclosure additional specifications include: -Lightweight aluminum enclosure.

  • Page 11: Pa10W Rf In Enclosure With Preamplifier Option

    RF Power Amplifier PA10W Figure 8: PA10W RF power amplifier – lightweight aluminum enclosure. 4) PA10W RF in enclosure with Preamplifier Option The enclosure can also include input preamplifiers (approx 45 or 60 dB of gain – please specify when ordering) to the RadioProcessor board. This option is perfect in combination with the iSpin- Mini system to provide a complete mobile NMR system (see Figure 9).

  • Page 12: Related Products And Accessories

    4. NMR Permanent Magnets are available for conducting NMR experiments. For more information, please visit http://www.spincore.com/products/Magnets/ 5. If you require a custom power level, please inquire with SpinCore Technologies through our contact form, which is available at http://www.spincore.com/contact.shtml IV. Contact Information SpinCore Technologies, Inc.
