How to connect your subwoofer
This section offers instructions on connecting your subwoofer in a mono and stereo
configuration.
Each side of the voice coil is 2 ohm each. Most amplifiers are 4 ohm stable in mono.
Please connect using diagrams and descriptions below.
(Note: Please consult your amplifier user guide when connecting)

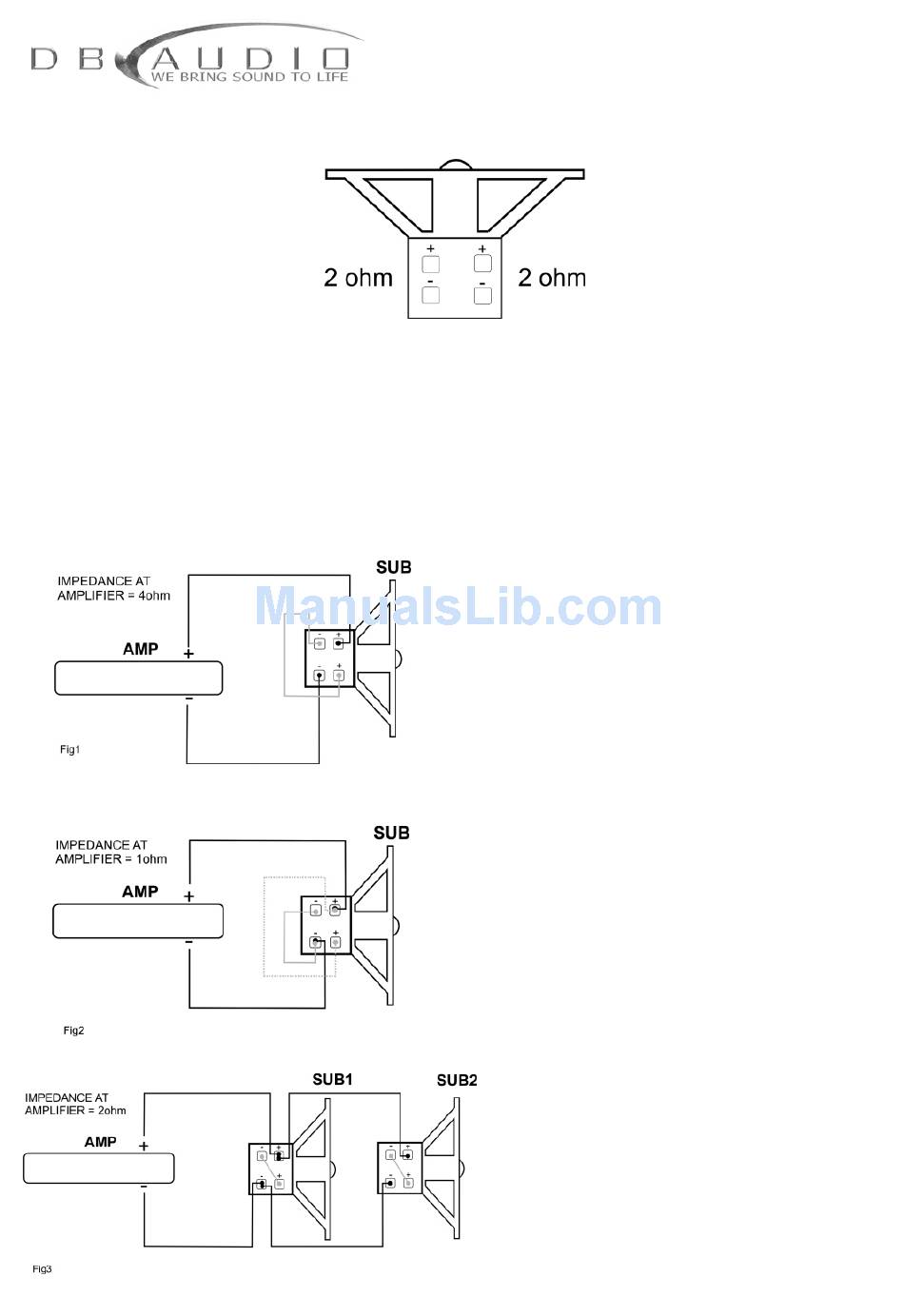

Connection in Series
Connection in parallel
Connection in parallel using two subs in stereo
Left
1.Negative to Positive (Sub1 Left to Sub1 Right)
2.Positive to Positive (Amp to Sub1 Left)
9
Right
1. Positive to Negative (Sub Left to
Sub Right)
2. Positive to Positive (Sub Left to
Amp)
Negative to Negative (
Amp)
1.Positive to Positive (Sub Left to Sub
Right)
Negative to Negative (Sub right to
Left Sub)
2.Positive to Positive (
Negative to Negative (
Negative to Positive (Sub2 Left to Sub2 Right)
Positive to Positive (Sub1 Left to Sub2 Right)
Negative to Negative (Amp to Sub1 Right)
Negative to Negative (Sub1 Left to Sub2 Right)
Sub Right to
Sub to Amp)
Sub to Amp)
