- Page 1 B22-SUB Manual 1.2 en...
- Page 2 General information B22-SUB Manual Version: 1.2 en, 11/2018, D2729.EN .01 Copyright © 2018 by d&b audiotechnik GmbH; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference. We recommend you to regularly check the d&b website for the latest version of this document.
-
Page 3: Table Of Contents
B22-SUB loudspeaker............5 2.1 Product description..............5 2.2 Connections................5 2.3 Operation..................6 2.3.1 Controller settings..............7 2.4 Technical specifications.............. 7 Manufacturer's declarations........... 9 3.1 EU conformity of loudspeakers (CE symbol)......9 3.1.1 WEEE Declaration (Disposal)..........9 d&b B22-SUB Manual 1.2 en... -
Page 4: Safety Precautions
Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b B22-SUB Manual 1.2 en... -
Page 5: B22-Sub Loudspeaker

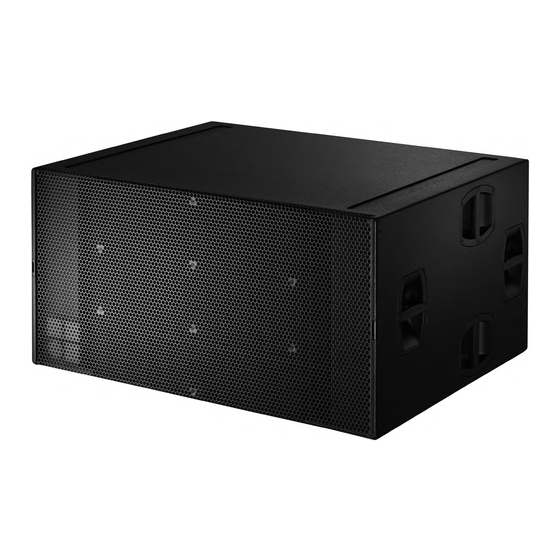

B22-SUB loudspeaker 2.1 Product description The B22-SUB is an actively driven subwoofer housing a pair of 18" long excursion neodymium LF drivers built into a bandpass horn cabinet. Its frequency response extends from 32 Hz to 90 Hz. The cabinet is constructed from marine plywood and has an impact resistant paint finish. -
Page 6: Operation
Applicable d&b amplifiers: D80/D20/D12/30D. Application Setup Cabinets per channel B22-SUB B22-SUB Within applicable d&b amplifiers, the controller setup is available in Dual Channel or Mix TOP/SUB mode. d&b B22-SUB Manual 1.2 en... -
Page 7: Controller Settings
WR option: Faston type connector (2 x 6.3 mm), female Pin assignment NLT4 F/M: 2+/2– EP5: 3:+ / 4:– B22-SUB frequency response, standard and INFRA modes WR option: Brown: (+) / Blue: (–) Weight 106 kg (234 lb) d&b B22-SUB Manual 1.2 en... - Page 8 B22-SUB cabinet dimensions in mm [inch] d&b B22-SUB Manual 1.2 en...
-
Page 9: Manufacturer's Declarations
Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b B22-SUB Manual 1.2 en... - Page 11 www.dbaudio.com...
