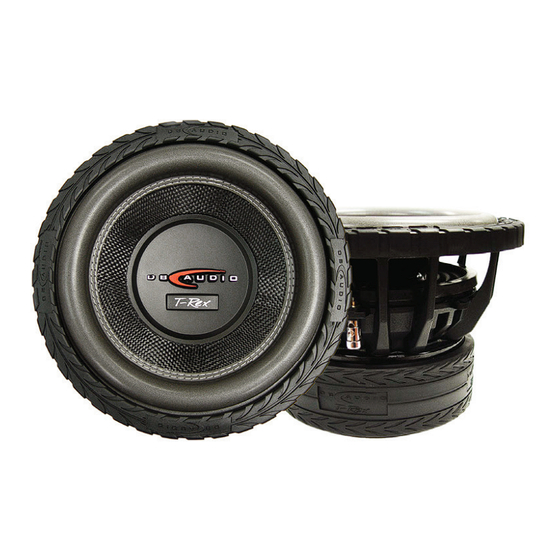

- Page 1 USER GUIDE T-Rex Subwoofers Xtinct Subwoofers Karnage 12 Subwoofer...
- Page 2 Dear Customer, Thank you for purchasing this DB Audio Product. DB Audio is proud to introduce a new series of professional subwoofers designed in Britain by a team of dedicated engineers our goal is to provide you, our customer, with the absolute best subwoofer on the market.
- Page 3 T-Rex Series Specification: Model Power Power Size RMS in Peak in Dual inches Watts Watts Trex 10 1000 3000 32.5 0.27 18.20 84.3 Trex 12 1000 3000 32.7 0.30 31.31 86.6 Trex 15 1000 3000 29.6 0.33 69.27 88.7 T-Rex Enclosure Design: 10”...
- Page 4 Xtinct Subwoofers Xtinct Series Features: High power handling 1500 W RMS, 5000 W peak power Red finish die-cast basket Kevlar woven non-press paper cone with EROM foam surround 3” hi-temp 4-layer voice coil Triple stacked 300 oz magnet Mirror image multi-layer Nomex spider 1”...
- Page 5 Xtinct Enclosure Design: 12” Subwoofer - 1 9” Vb ....0.9 Cubic Feet Tun ....36Hz F3 34Hz Port ....(2x) 3"Ø (Diameter) 26.29" Length 16.12” 14” Port Velocity ....21.27% Tb ....1.27 Cubic Feet 17” Material ....18mm (0.709") MDF 16.95”...
- Page 6 How to connect your subwoofer This section o ers instructions on connecting your subwoofer in a mono and stereo configuration. Each side of the voice coil is 2 ohm each. Most amplifiers are 4 ohm stable in mono. Please connect using Left Right diagrams and descriptions below.
- Page 7 Subwoofers KARNAGE 12 has been developed for extreme use. This is an extremely powerful subwoofer and not for the faint hearted. If you need a less powerful subwoofer, we recommend you look at our T-Rex or Xtinct series. Dimension Unit...
- Page 8 This will give you 0.5 Ohm impedance, only use this configuration if you are using 4 or more KARNAGE Subwoofers. Or is your amplifier is capable of running less than 0.25Ohm in mono. Series 2Ohm Impedance- recommended Connect one side of the speaker terminal Positive to the Negative and use this NEGATIVE connection to the Amplifier.
- Page 9 Karnage Enclosure Design: Design 1 Internal Volume 62L Tuned to 36hz Use 18mm MDF or 25mm. Design is using 18mm MDF, if using 25mm please adjust dimensions to take account of the di erence Front Ba e is 2 x 18mm MDF Panels or use 1 x 25mm MDF Slot Port: W 101.7mm x H 345mm x L 950.20mm Subwoofer mounting hole...
- Page 10 21.771 68.979 297.304 285.533 series Recommended Amplifiers T-Rex Subwoofers IPA 3001D Mono @ 1 Ohm Xtinct Subwoofers IPA 5001D mono @ 1 Ohm KARNAGE 12 Subwoofers IPA 7001D mono @ 2 Ohm For further details on recommended amplifiers please visit www.inphaseaudio.co.uk...
