Summary of Contents for Signal Vehicle Products SS670

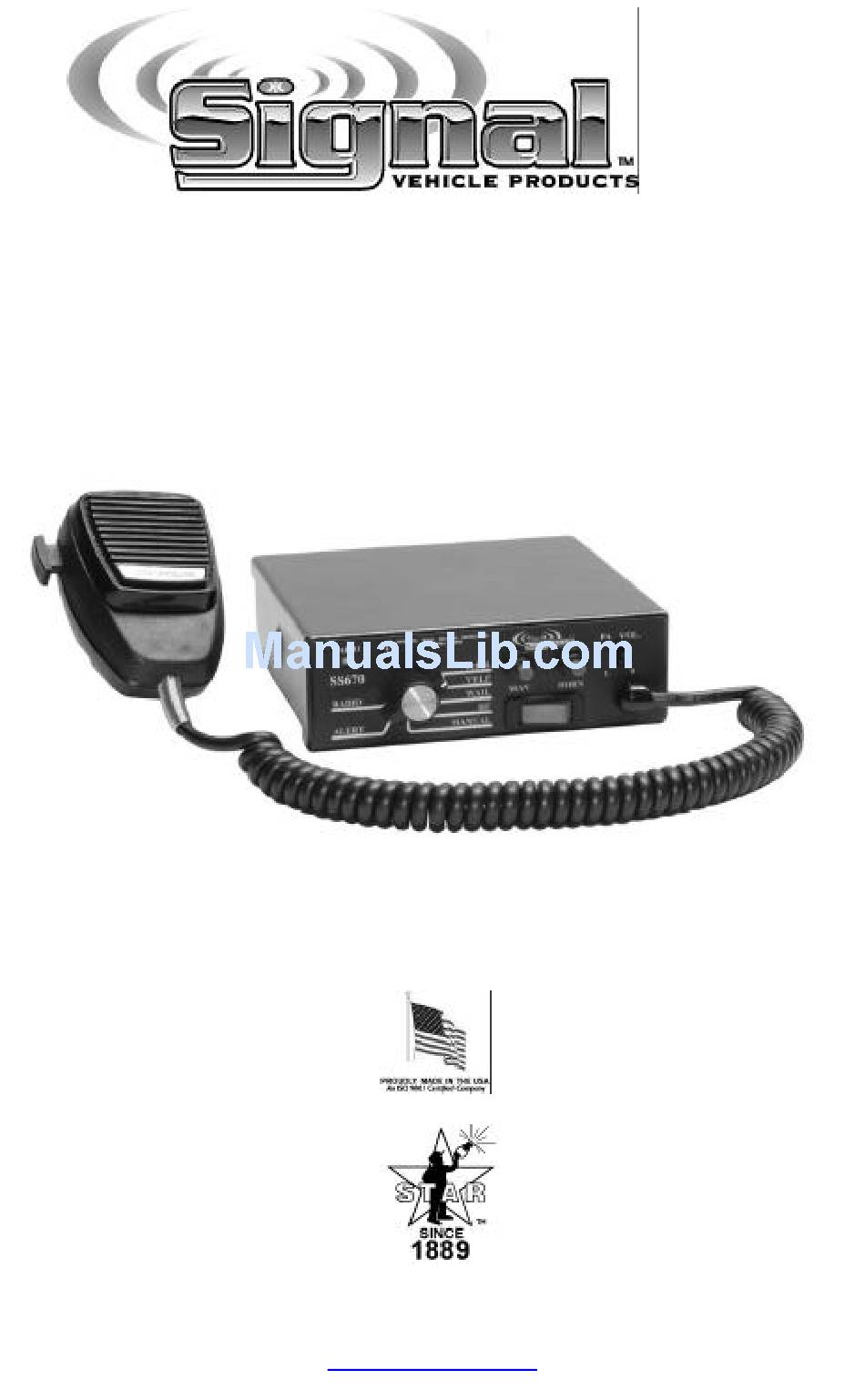

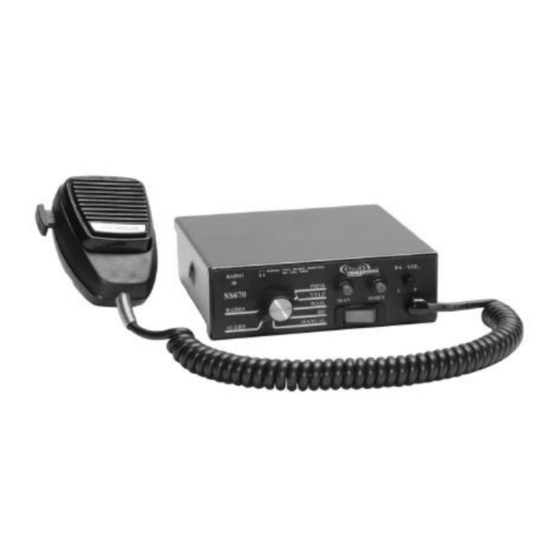

- Page 1 A Division of Star Headlight & Lantern Co., Inc. SS670 SIREN AMPLIFIER INSTALLATION AND OPERATING INSTRUCTIONS 455 Rochester Street Avon, NY 14414 Phone: (585) 226-9025 Toll Free Fax: 888-478-2797 www.star1889.com PLITSTR332 REV. A 12/9/05...
-
Page 3: Table Of Contents
Due to continuous product improvements, we must reserve the right to change any specifications and information, contained in this manual at any time without notice. Signal Vehicle Products, Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 4: Installation
Contact supplier immediately if any components are missing. INSTALLER SELECTABLE OPTIONS The SS670 has several options that can be selected during installation. Jumpers on the printed circuit board, inside the case, allow the installer to select these various options. These options should be set before installation of the unit. - Page 5 Phaser Disable – (TD – Tone Disable) The Phaser function can be completely disabled by moving the TD jumper from one pin to both pins. This will also disable the Two-Tone sound produced normally when the Manual button is pressed while the Selector Knob (see page 9) is in the PHSR position.
-
Page 6: Mounting
• Never operate this unit without adequate hearing protection for you and others in the area. (OSHA 1910.95) • The SS670 siren may be mounted above the dash, below the dash, on a tunnel, or in a rack with the mounting u-bracket provided. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS Electrical connections to the unit are made using a removable connector located on the back (part #SWH-64). You should install the connector on the unit before wiring. If the unit needs service the connector can be easily removed without unwiring the connector. - Page 8 (Electrical Connections CONT’D) Wiring Connections: BLACK: (Terminal 2) – Ground: Connect to the negative of the battery, or to a good chassis ground. Be sure to use minimum size #14 AWG wire. RED: (Terminal 1) – Power: Connect to the positive of the battery, or to a high current power buss.
-
Page 10: Operation
OPERATION GENERAL This unit is designed for easy operation under the stress associated with high-speed pursuit. Most siren functions are accessible with one simple motion without repetitive activation of switches or automatic timed switching that can interfere with desired operation. POWER In order for the siren to function, the power switch must be in the ON position. -
Page 11: Selector Switch
SELECTOR SWITCH The rotary selector switch controls the primary operating function of the siren. Phaser - (PSHR)- Ultra-fast changing tone used for maximum attention. Yelp - A rapidly changing tone used in congested areas. Wail - A slower changing tone used on highways. Hands Free - (HF) - Also known as Horn Ring Cycler, allows the user to cycle through Wail, Yelp, and Phaser by repeatedly pressing the horn or other switch connected to the AUX input. -
Page 12: Horn
This momentary push-button switch provides a generally quicker changing tone when the selector switch is in the Wail, Yelp, or Phaser positions. (See table below). These quicker tones are used at intersections and very highly congested areas. Pressing the button once changes to the next faster tone and pressing again changes the tone back to the original sound. -
Page 13: Volume Controls
VOLUME CONTROLS The radio repeat volume control is recessed in the upper left hand corner of the front face. This should be set when the vehicle is parked. First set the volume level of the vehicle's two-way radio to its normal operating volume. -
Page 14: Service
SERVICE This unit is designed to provide years of reliable service under even the worst conditions. Many times there may appear to be a problem with the unit when the true problem is in the speaker(s) or improper installation. The following chart shows typical symptoms and possible causes. -
Page 15: Parts
PARTS The following parts are available from Signal Vehicle Products: Part Description S30235-15 Siren Top Cover S30234-15 Siren Bottom Mounting Plate SWH-64 Wiring Harness P30069-38 Microphone Bracket with Screws P30056-16 1/4-20 x 3/8" Hex Locking Bolt P30028-6 15 Amp Automotive Fuse... -
Page 16: Limited Warranty
During this warranty period the obligation of Signal Vehicle Products is limited to repairing or replacing, as Signal Vehicle Products may elect, any part or parts of such product which after examination by Signal Vehicle Products is determined to be defective in material and/or workmanship.
