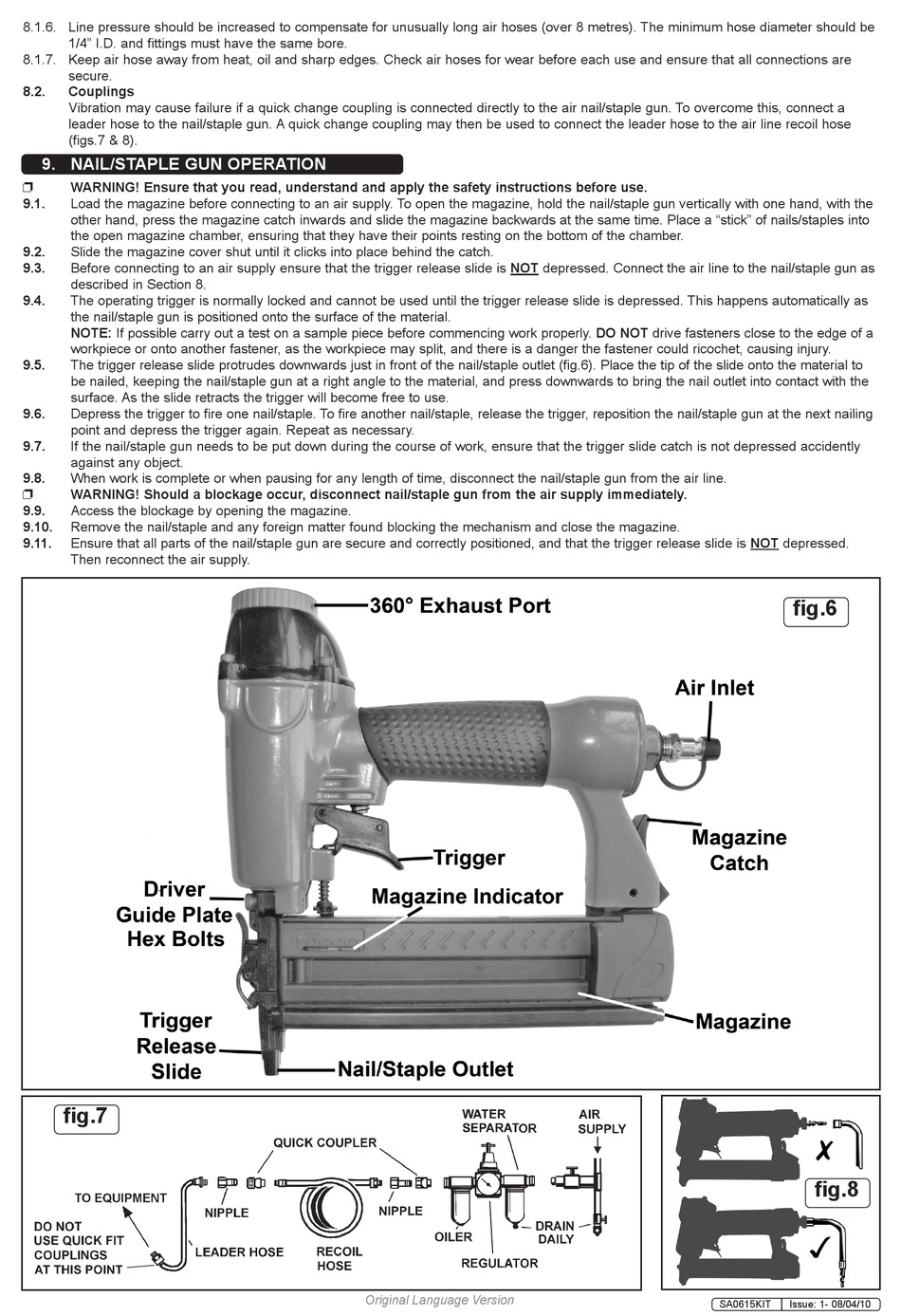

8.1.6. line pressure should be increased to compensate for unusually long air hoses (over 8 metres). the minimum hose diameter should be
1/4" I.d. and fittings must have the same bore.
8.1.7. Keep air hose away from heat, oil and sharp edges. check air hoses for wear before each use and ensure that all connections are
secure.
8.2.
couplings
Vibration may cause failure if a quick change coupling is connected directly to the air nail/staple gun. to overcome this, connect a
leader hose to the nail/staple gun. a quick change coupling may then be used to connect the leader hose to the air line recoil hose
(figs.7 & 8).
9. nAIl/stAple gun opeRAtIon
WARnIng! ensure that you read, understand and apply the safety instructions before use.
9.1.
load the magazine before connecting to an air supply. to open the magazine, hold the nail/staple gun vertically with one hand, with the
other hand, press the magazine catch inwards and slide the magazine backwards at the same time. Place a "stick" of nails/staples into
the open magazine chamber, ensuring that they have their points resting on the bottom of the chamber.
9.2.
slide the magazine cover shut until it clicks into place behind the catch.
9.3.
Before connecting to an air supply ensure that the trigger release slide is not depressed. connect the air line to the nail/staple gun as
described in section 8.
9.4.
the operating trigger is normally locked and cannot be used until the trigger release slide is depressed. this happens automatically as
the nail/staple gun is positioned onto the surface of the material.
note: If possible carry out a test on a sample piece before commencing work properly. Do not drive fasteners close to the edge of a
workpiece or onto another fastener, as the workpiece may split, and there is a danger the fastener could ricochet, causing injury.
9.5.
the trigger release slide protrudes downwards just in front of the nail/staple outlet (fig.6). Place the tip of the slide onto the material to
be nailed, keeping the nail/staple gun at a right angle to the material, and press downwards to bring the nail outlet into contact with the
surface. as the slide retracts the trigger will become free to use.
9.6.
depress the trigger to fire one nail/staple. to fire another nail/staple, release the trigger, reposition the nail/staple gun at the next nailing
point and depress the trigger again. repeat as necessary.
9.7.
If the nail/staple gun needs to be put down during the course of work, ensure that the trigger slide catch is not depressed accidently
against any object.
9.8.
When work is complete or when pausing for any length of time, disconnect the nail/staple gun from the air line.
WARnIng! should a blockage occur, disconnect nail/staple gun from the air supply immediately.
9.9.
access the blockage by opening the magazine.
9.10.
remove the nail/staple and any foreign matter found blocking the mechanism and close the magazine.
9.11.
ensure that all parts of the nail/staple gun are secure and correctly positioned, and that the trigger release slide is not depressed.
then reconnect the air supply.
fig.7
Original Language Version
fig.6
fig.8
sa0615KIt
Issue: 1- 08/04/10
