Intellinet 523240 User Manual

Internet access device
Hide thumbs Also See for 523240:
Table of Contents

Advertisement

Quick Links

Download this manual

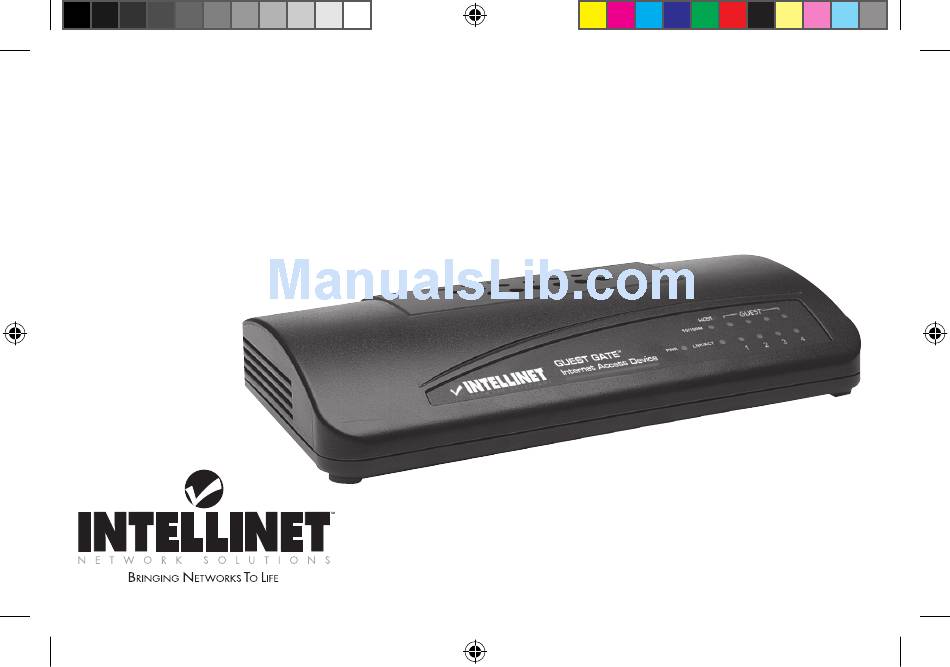

GUEST GATE
™
INTERNET ACCESS DEVICE

USER MANUAL

MODEL 523240
V1.0/11-05
523240_Manual_10.indd 1
11/23/05 12:10:19 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 523240 and is the answer not in the manual?

Questions and answers

Related Manuals for Intellinet 523240

Summary of Contents for Intellinet 523240

  • Page 1: User Manual

    GUEST GATE ™ INTERNET ACCESS DEVICE USER MANUAL MODEL 523240 V1.0/11-05 523240_Manual_10.indd 1 11/23/05 12:10:19 PM...

  • Page 2: Table Of Contents

    CONTENTS section page Introduction ....................1 Function Description .................. 2 Installation Examples ................. 5 GUEST GATE Function Basics ..............7 Installation of GUEST GATE ................. 9 Recommended Setup ................. 9 Advanced Setup ..................15 Configuration Options of GUEST GATE ............. 24 Status Screen ..................

  • Page 3: Introduction

    1. INTRODUCTION Congratulations on your purchase of the INTELLINET NETWORK SOLUTIONS ™ GUEST GATE ™ Internet Access Device. The GUEST GATE connects guests to your network, allowing them to access only the Internet (Web, Email, Chat and other applications). GUEST GATE protects your existing network from unauthorized access by the connected guest computers and, if required, even shields the guest computers among themselves.

  • Page 4: Function Description

    1.1 FUNCTION DESCRIPTION Internet Access for Guests GUEST GATE is primarily designed to provide configuration free Internet Access for your guests. GUEST GATE uses the existing Internet Connection of your network to provide web and email access for computers connected in a conference room, a hotel or a public place with wireless network connectivity.

  • Page 5: Bandwidth Control

    the Internet for the first time. The Welcome Screen can be utilized to make the guest agree to your terms and conditions. The Welcome Screen can be completely deactivated if required. IP PnP In many situations it is necessary for the Network Administrator to change the TCP/IP Settings of Guest Computers because the existing settings are not compatible or your network has advanced requirements.

  • Page 6: Packet Filter

    Packet Filter Block access to certain web sites or entire IP ranges. 4 Port 10/100 Auto Sensing LAN Switch GUEST GATE provides 4 10/100 Mbps LAN Switch ports for the connection of PCs, Notebook, other Switches or Wireless Access Points. Web Based Administrator Interface The configuration is fully web browser based.

  • Page 7: Installation Examples

    1.2 INSTALLATION EXAMPLES GUEST GATE in a SOHO Network Environment A typical setup in which the Internet Connection is establish through a NAT Router with an integrated Firewall. INTRODUCTION 523240_Manual_10.indd 5 11/23/05 12:10:20 PM...
  • Page 8 GUEST GATE in a SMB Environment In larger networks GUEST GATE connects to any available Switch port behind the Firewall/ Gateway/Router. INTRODUCTION 523240_Manual_10.indd 6 11/23/05 12:10:20 PM...

  • Page 9: Guest Gate Function Basics

    1.3 GUEST GATE FUNCTION BASICS Ports GUEST GATE features a total of 5 10/100 RJ45 Ports. One port is for the connection of GUEST GATE to the Host Network (Host Port), 4 Ports are available for guest connections (Guest Ports). The Guest Ports can be connected to Hubs, Switches, Wireless Access Points, PCs or Notebooks.
  • Page 10 Guest Ports with Virtual VLAN Enabled If “Virtual VLAN” is enabled, GUEST GATE assigns a different IP Network (Subnet) to each connected Guest Computer. Since this assignment is random it makes it virtually impossible for a hacker to guess the other Guest Computer’s IP Settings to try to gain access. “Virtual VLAN” is enabled by default. It can be disabled in the GUEST configuration screen of the Administrator Web Interface.

  • Page 11: Installation Of Guest Gate

    2. INSTALLATION OF GUEST GATE 2.1 RECOMMENDED SETUP This setup method assumes that a DHCP Server such as a router is present in your network. 1. Connection to the Host Network Connect standard RJ45 Network Cable to GUEST GATE’s HOST Port and to a RJ45 port on your existing network (Ethernet Switch Port, Router Switch Port, etc.).
  • Page 12 3. Testing Internet Access Start a PC or Notebook which is connected to one of the Guest Ports. Launch a web browser and open an Internet Web Site such as http://www.intellinet-network.com. You will then see GUEST GATE’s Welcome Page. Provide the password if required and click on CONTINUE. You will then be forwarded to the Web Page you originally entered in the web browser’s address bar.
  • Page 13 4. Accessing the Administrator Web Interface from the Host Network 1. Open the log of your DHCP Server to find out the IP Address of GUEST GATE. GUEST GATE’s MAC (Media Access Control) Address can be found on the bottom of the device. Find this MAC Address in your DHCP Server’s Client to find out the IP Address.
  • Page 14 3. Changing Administrator Password B&W Screen Captures Click on Device Settings INSTALLATION OF GUEST GATE 523240_Manual_10.indd 12 11/23/05 12:10:21 PM...
  • Page 15 Enter the old password 1234. Enter a new password (up to 20 characters long). Retype the new password. Click on EXIT (upper right corner). INSTALLATION OF GUEST GATE 523240_Manual_10.indd 13 11/23/05 12:10:22 PM...
  • Page 16 Check Save Settings Check Reboot Device Click on Exit GUEST GATE now reboots. This takes about 25 seconds. After the reboot you will be redirected to GUEST GATE’s Login Page. You can now login with the new password. Information about the Administrator Web Interface: The interface is designed to let you make changes on all 4 screens without saving each change individually.

  • Page 17: Advanced Setup

    2.2 ADVANCED SETUP The standard installation of GUEST GATE bases on the assumption that a DHCP Server is present in your network. If this is not the case, you can still configure GUEST GATE manu- ally. To do that you need to turn on GUEST GATE while it is disconnected from the network. If no DHCP Server can be found after 3 minutes, GUEST GATE will fall back to its default IP Address of 192.168.2.1.
  • Page 18 1. Changing the IP Address of your PC Click on START -> SETTINGS -> CONTROL PANEL. Double-Click the Network Connections icon INSTALLATION OF GUEST GATE 523240_Manual_10.indd 16 11/23/05 12:10:22 PM...
  • Page 19 Right-Click the Local Area Connection icon and select Properties from the context menu. In the Local Area Connection Properties window highlight “Internet Protocol (TCP/IP)“ and click on Properties. INSTALLATION OF GUEST GATE 523240_Manual_10.indd 17 11/23/05 12:10:22 PM...
  • Page 20 The window Internet Protocol (TCP/IP) Properties then opens – see below: INSTALLATION OF GUEST GATE 523240_Manual_10.indd 18 11/23/05 12:10:22 PM...
  • Page 21 Make the changes as shown below: Click OK when done. Close the previous windows by clicking OK as well. Your TCP/IP Settings are now compatible to GUEST GATE. INSTALLATION OF GUEST GATE 523240_Manual_10.indd 19 11/23/05 12:10:22 PM...
  • Page 22 2. Connecting to GUEST GATE via Web Browser Start your web browser and to to the address http://192.168.2.1. The Administrator Web Interface Login Screen then appears. Enter the password 1234 and click on Login Please note: At this point we recommend changing the Administrator Password as described in the previous chapter.
  • Page 23 3. Host Configuration Click on Host Configuration INSTALLATION OF GUEST GATE 523240_Manual_10.indd 21 11/23/05 12:10:23 PM...
  • Page 24 Configuration Host: Specify the Device IP Address, IP Netmask, IP Gateway (Internet Connection Gateway, Router) and DNS Server. You can add multiple DNS Servers by separating the different entries by a space. INSTALLATION OF GUEST GATE 523240_Manual_10.indd 22 11/23/05 12:10:23 PM...
  • Page 25 Packetfilter: See Chapter “Configuration Options of Guest Access Appliance (GUEST GATE)”. When you are done click on Exit (upper right corner). Click on Exit to save the configuration and restart GUEST GATE. INSTALLATION OF GUEST GATE 523240_Manual_10.indd 23 11/23/05 12:10:23 PM...

  • Page 26: Configuration Options Of Guest Gate

    3. CONFIGURATION OPTIONS OF GUEST GATE 3.1 STATUS SCREEN CONFIGURATION OPTIONS OF GUEST GATE 523240_Manual_10.indd 24 11/23/05 12:10:23 PM...

  • Page 27: Network Information

    The Status Screen shows three types of information: 1. Network Information Basic Information about the HOST Network Interface. 2. Various Information Display of the current firmware version, the system’s uptime and the status of the password protected Internet Access. 3. Connected Guest Computers GUEST GATE shows all connected Guest Computers, including the MAC Address, the assigned IP Address and the connection time.

  • Page 28: Guest Configuration Screen

    3.2 GUEST CONFIGURATION SCREEN This page shows the configuration options for the connected Guest Computers. CONFIGURATION OPTIONS OF GUEST GATE 523240_Manual_10.indd 26 11/23/05 12:10:24 PM...

  • Page 29: Welcome Screen

    1. Configuration Guest Option “automatically select network” GUEST GATE automatically assigns IP Addresses to the Guest Computers. All Guest Computers operate in the same network (Virtual VLAN = off). Option “use separate random network for each client” This operational mode is called “Virtual VLAN”. If this option is activated, GUEST GATE randomly assigns different networks to each connected guest computer.
  • Page 30 3. Guest Password If you require your guests to enter a password to access the Internet you can define it here. If left empty no password is required. Default = blank. The following two options are very useful if you wish to limit the available Internet bandwidth of the guest network.

  • Page 31: Host Configuration Screen

    3.3 HOST CONFIGURATION SCREEN This page shows the configuration options for the Host Interface of GUEST GATE. CONFIGURATION OPTIONS OF GUEST GATE 523240_Manual_10.indd 29 11/23/05 12:10:24 PM...
  • Page 32 If you which to block certain IP Addresses, Domain Names or an entire network you can enter this here. “Add Host Address” is used to enter domain names such as intellinet-network.com. “Add Network Address” is used to enter an IP Address. To specify the range you can select the appropriate network mask from the drop down list.
  • Page 33 3. Blocked Ports This option lets you specify which outgoing TCP/IP Ports you which to block. Enter the port number and click on “Add Port”. GUEST GATE blocks both TCP and UDP protocols. A list of common service ports can be found in chapter -> APPENDIX at the end of the document. If you wish to remove a port simply select the desired port from the dop down list and click on “Remove”.

  • Page 34: Welcome Screen

    3.4 WELCOME SCREEN This page shows the Welcome Screen configuration options of GUEST GATE. CONFIGURATION OPTIONS OF GUEST GATE 523240_Manual_10.indd 32 11/23/05 12:10:24 PM...
  • Page 35 1. Banner Graphic You can replace the default Banner Image with your own image such as the Logo of your company. Click on Browser to select the file you wish to upload. Click on Upload to replace the default Banner Image.

  • Page 36: Device Settings Screen

    3.5 DEVICE SETTINGS SCREEN This page shows the Device Settings of GUEST GATE. CONFIGURATION OPTIONS OF GUEST GATE 523240_Manual_10.indd 34 11/23/05 12:10:25 PM...

  • Page 37: Admin Password

    GUEST GATE. Ideally you want to perform the upgrade from within the local Host Network whenever possible. Check the INTELLINET NETWORK SOLUTIONS Web Site (http://www.intellinet-network.com) for future Firmware Updates.

  • Page 38: Exit Screen

    3.6 EXIT SCREEN This page lets you save the new configuration. CONFIGURATION OPTIONS OF GUEST GATE 523240_Manual_10.indd 36 11/23/05 12:10:25 PM...
  • Page 39 [x] Save Settings All changes you made to the configuration will only be memorized if you save the changes by activating this check box. If you made changes in some of the configuration screens and fail to perform this step before closing the web browser, all changes will get lost.

  • Page 40: Questions & Answers

    4. QUESTIONS & ANSWERS Q1: I have a Server in my network which my guests are not allowed to access. Which Settings do I need to activate in Guest Access Appliance (GUEST GATE) to prevent my guests from accessing this server? You do not need to activate any settings.
  • Page 41 Q4: I wish to display my own Welcome Page for my guests. Can I change the default welcome page? Yes. The welcome page can be changed in the Welcome Page Configuration of the Administrator Web Interface. You can change the welcome message and upload your own Banner Image.
  • Page 42 Q7: What does the option “use separate random network for each client” in the Guest Configuration do and what is it used for? This is the Virtual VLAN Function of GUEST GATE. If this option is activated GUEST GATE will prevent the connected Guest Computers from accessing each other by assigning random TCP/IP Network Settings to the guest computers.
  • Page 43 Guest Computer 3 receives IP Address 10.10.8.178. […] In this mode each Guest Computer operates in its own network and therefore can not access any other device except for the Internet. Since this function is random it is next to impossible for an attacker to know or guess which IP Addresses the other guests have been assigned making a hacking attempt virtually impossible.

  • Page 44: Service & Support

    5. SERVICE & SUPPORT Additional information about GUEST GATE is available on the web at http://www.intellinet-network.com/guestgate On this page you can: 1. Find answers to common questions (FAQ) 2. Obtain the latest Firmware Versions 3. Get in contact with our technical support team.
  • Page 45 SPECIFICATIONS • Guest Network: 4 x 10/100Mbps RJ45 Port • Host Network: 1 x 10/100Mbps RJ45 Ports • Reset Button • LEDs: 1 x Power, 1 x Link/Activity for Host Network, 4 x Link/Activity for Guest Ports • AC Adapter 12V/1A •...

  • Page 46: Appendix

    6. APPENDIX Below you can find a list of common TCP/IP Service Ports. These ports can be entered in the HOST CONFIGURATION of GUEST GATE to block access to certain services. PORT NUMBER SERVICE NAME / DESCRIPTION SSH (Secure Shell) Telnet SMTP (Outgoing Mail, Sendmail Server Port) TFTP (Trivial File Transfer Protocol)
  • Page 47 PORT NUMBER SERVICE NAME / DESCRIPTION SHELL ( LPR (Line Printer Remote), LPD (Line Printer Daemon) IPP (Internet Printing Protocol) 1723 PPTP (used for VPN Connections) 1863 MSN Messenger 2535, 2745, 8866 Trojan: Used by Beagle 3389 Windows XP Remote Desktop Port 3410 Trojan: OptixPro, also used by NetworkLens SSL Event 3689...
  • Page 48 Are you completely satisfies with this product? Please contact your INTELLINET NETWORK SOLUTIONS ™ dealer with comments or questions. All products mentioned are trademarks or registered trademarks of their respective owners. 523240_Manual_10.indd 46 11/23/05 12:10:26 PM...
