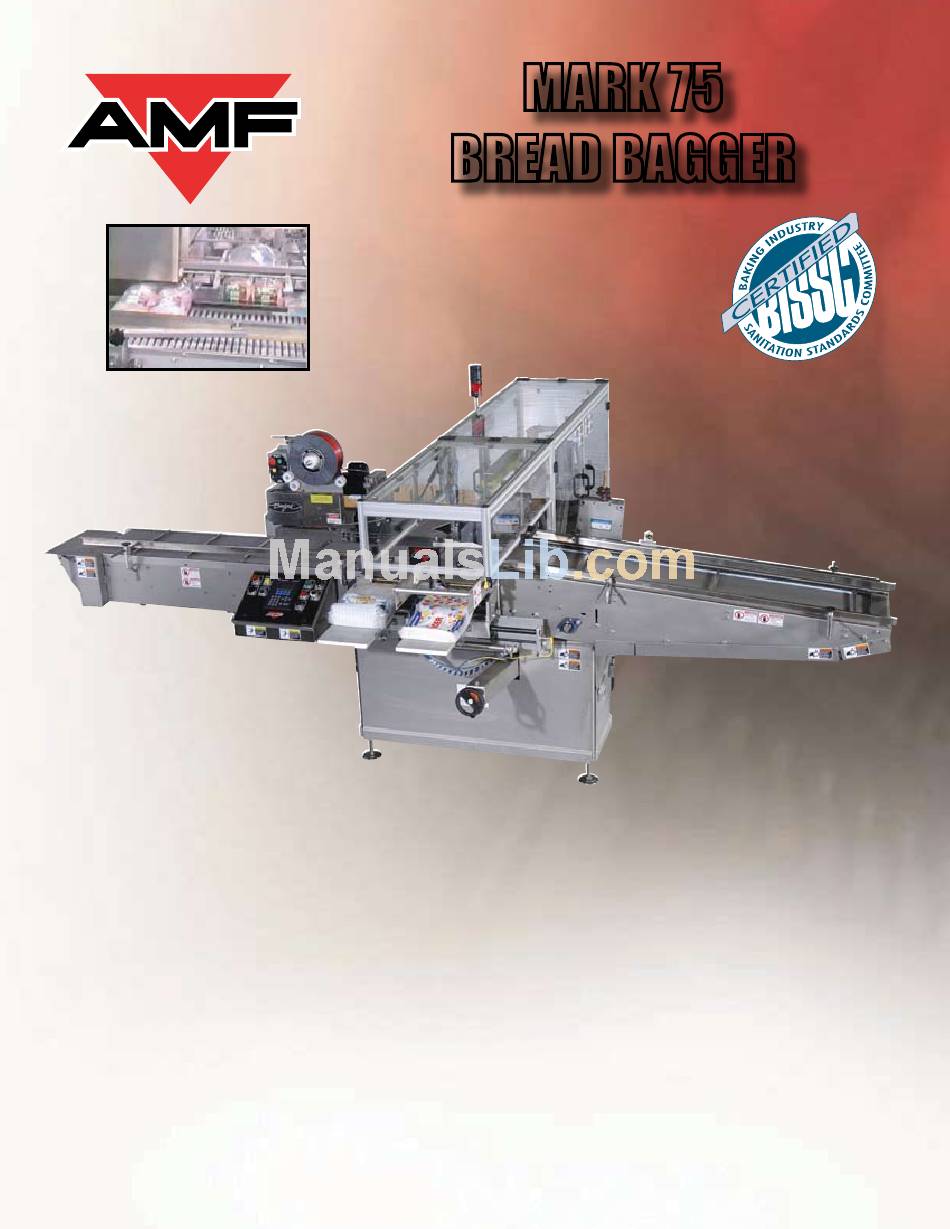

Multiple Loaf Bread
Bagger Available
(Shown with Optional Lexan® Scoop Guard)
• Modular Concept for Reduced Production Downtime and Ease
of Maintenance
• Interchangeable Parts for Left-Hand and Right-Hand Models
• Compact Design for Minimized Floor Space
• Advanced Drive Design to Handle High Speeds Up to 75 Loaves
Per Minute
MARK 75
BREAD BAGGER
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AMF Mark 75
Summary of Contents for AMF Mark 75
- Page 1 Multiple Loaf Bread Bagger Available (Shown with Optional Lexan® Scoop Guard) • Modular Concept for Reduced Production Downtime and Ease of Maintenance • Interchangeable Parts for Left-Hand and Right-Hand Models • Compact Design for Minimized Floor Space • Advanced Drive Design to Handle High Speeds Up to 75 Loaves Per Minute MARK 75 BREAD BAGGER...
- Page 2 • Corrosion resistant stainless steel frame and guards • Slotted stainless steel scoop guard with safety switches • Computer assisted, pendulum style scoop drive for low vibration and optimal operations MECHANICAL OPTIONS • Hook-up kit to Micro 75 Slicer • Infeed conveyor phaser • Extended 36” (91 cm) discharge conveyor • Lexan® scoop guard in lieu of slotted stainless MARK 75 BREAD BAGGER Pendulum Scoop Drive Flusher-Discharge Conveyor Automatic Dual Wicket Changer • Skip loaf device • Additional stainless steel scoop assemblies • Bag tyer and printer • Free roller pick off conveyor and tray support...
- Page 3 • Allen Bradley MicroLogix 1500 modular hardware programmable logic controller ELECTRICAL OPTIONS • NEMA 12 stainless steel electrical enclosure and operator console • Operator panel mounted on a pendant arm • Missed bag sensor SPECIFICATIONS Throughput Range: 35 - 75 loaves per minute Electrical Requirements: Main Power - 7 KVA Control Power - 24 VDC/120 Volts Air Requirements - 10 SCFM at 60 PSIG MARK 75 BREAD BAGGER • Allen Bradley Powerflex AC inverter (5 HP) with brake resistor • Incremental encoder for scoop position • Convenience plug installed on panel side to allow programming without having to open panel door • 110V outlet and power for tyer and labeler • Sensor for bag detection • Double loaf detector • Safety switch on guards with individual alarm messages •...
- Page 4 2115 West Laburnum Avenue Richmond, Virginia 23227 Tel: 1-800-225-3771 or 804-355-7961 Fax: 1-804-342-9724 www.amfbakery.com AMF’s focus on continuous improvement may result in changes to machinery specifications without notice. MARK 75 BREAD BAGGER TOP VIEW FRONT VIEW RIGHT VIEW Europe Office: FOR MORE INFORMATION PLEASE CALL YOUR ACCOUNT MANAGER OR...
