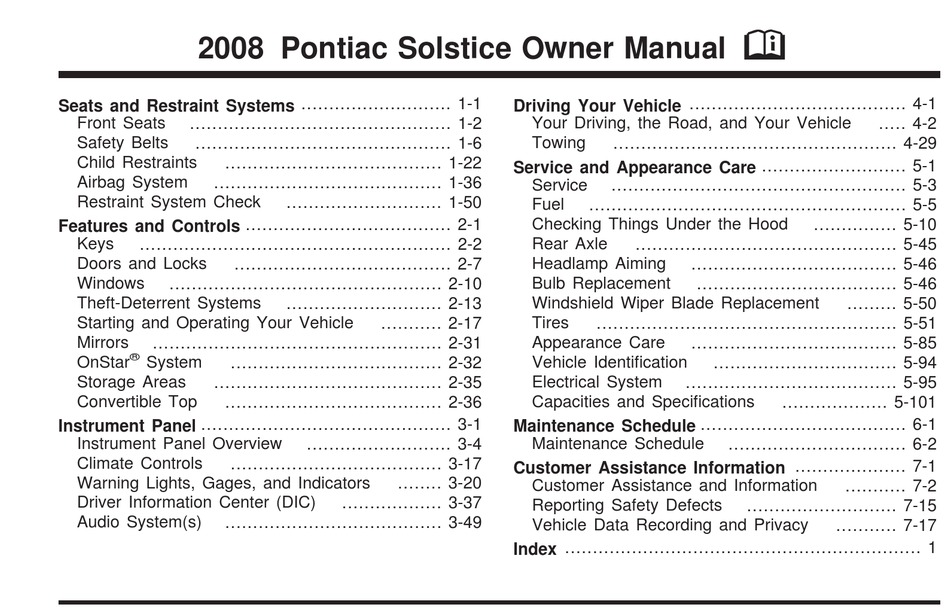

2008 Pontiac Solstice Owner Manual

Seats and Restraint Systems ........................... 1-1

Front Seats

............................................... 1-2

Safety Belts

.............................................. 1-6

Child Restraints

....................................... 1-22

Airbag System

......................................... 1-36

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-2

Doors and Locks

....................................... 2-7

Windows

................................................. 2-10

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-31

®

OnStar

System

...................................... 2-32

Storage Areas

......................................... 2-35

Convertible Top

....................................... 2-36

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-17

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(s)

....................................... 3-49

............................ 1-50

............................ 2-13

........... 2-17

.......................... 3-4

........ 3-20

.................. 3-37

Driving Your Vehicle ....................................... 4-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 4-29

Service and Appearance Care .......................... 5-1

Service

..................................................... 5-3

Fuel

......................................................... 5-5

Checking Things Under the Hood

Rear Axle

............................................... 5-45

Headlamp Aiming

..................................... 5-46

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 5-51

Appearance Care

..................................... 5-85

Vehicle Identiﬁcation

Electrical System

...................................... 5-95

Capacities and Speciﬁcations

Maintenance Schedule ..................................... 6-1

Maintenance Schedule

Customer Assistance Information .................... 7-1

Customer Assistance and Information

Reporting Safety Defects

Vehicle Data Recording and Privacy

Index ................................................................ 1

M

............... 5-10

.................................... 5-46

......... 5-50

................................. 5-94

................... 5-101

................................ 6-2

........... 7-2

........................... 7-15

........... 7-17

..... 4-2
