Hunter 26487 Parts Manual

PARTS GUIDE PARTS GUIDE
PARTS GUIDE PARTS GUIDE

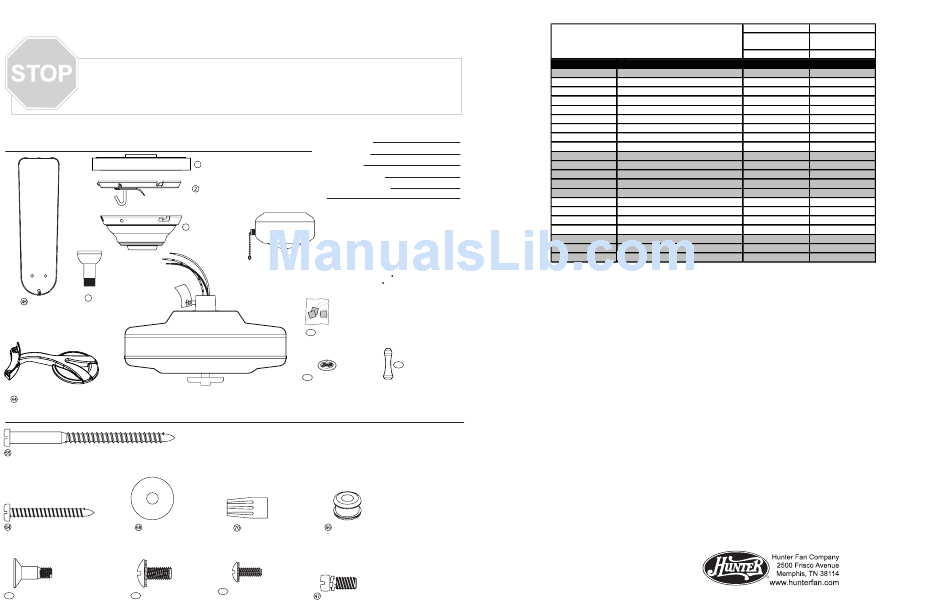

Using the Parts Guide below, check to make sure all parts are included in the box.
If parts are missing or damaged call 1-888-830-1326.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Before installing your fan, record the following information for your records and warranty assistance.
Fan Parts
3
7 Hanger Ball /
Blade Set
Downrod Assembly
Motor / Housing Assembly
Blade Iron Set
Hardware
Wood Screw
Wood Screw Flat Washer
67 Blade Assembly Screw 62 Canopy Screw
Model Name
(Not Drawn to Scale)
Catalog No.
Serial No.
99
Ceiling Gasket
Date Purchased
Where Purchased
Ceiling Plate
Missing / Broken Parts:
Call 1-888-830-1326
Canopy
Fan does not work:
1. Reference the Trouble Shooting guide in
your Instruction Manual.
2. Call your Local Service Center.
3. Call Technical Support at 901-248-2222.
Switch /
Housing
For additional information on:
Assembly
Hunter Products
Dealer Location
Call 1-800-448-6837
www.hunterfan.com
Balancing Kit
75
76 Pull Chain Pendant
(Drawn to Scale)
Wire Nut Blade Grommet
69 Screw, Machine, 6-32
Blade Iron Armature Screw

Parts List

Item #
Trouble Shooting
Service Center Locator
Pull Chain Pendant
78
Asm. Dwg. #
Item Name
Hanging System Kit
2 Ceiling Plate
3 Canopy
7 Hanger Ball / Downrod Assembly
62 Canopy Screw
64 Screw, Wood
65 Screw, Wood
68 Flat Washer
99 Gasket
28 Switch/Housing Assembly
44 Blade Iron Set
46 Blade Set
47 Screw, Blade Iron Armature
Hardware Kit
66 Blade Grommet
67 Screw, Blade Assembly
69 Screw, 6-32
70 Wire Nut
76 Pull Chain Pendant
78 Pull Chain Pendant
75 Balancing Kit
Model # 26487
97340-01
Finish White
Qnty Part #
1 94947-03-000
1 -----------
1 -----------
1 -----------
4 -----------
2 -----------
2 -----------
4 -----------
1 -----------
1 97442-03-000
1 97341-05-132
1 75885-57-000
11 63755-06-133
1 97340-00-860
16 -----------
16 -----------
6 -----------
4 -----------
1 74393-08-132
1 65399-02-132
1 07570-01-000
98000-01-689
