Hunter 23801 Parts Manual

PARTS GUIDE PARTS GUIDE
PARTS GUIDE PARTS GUIDE

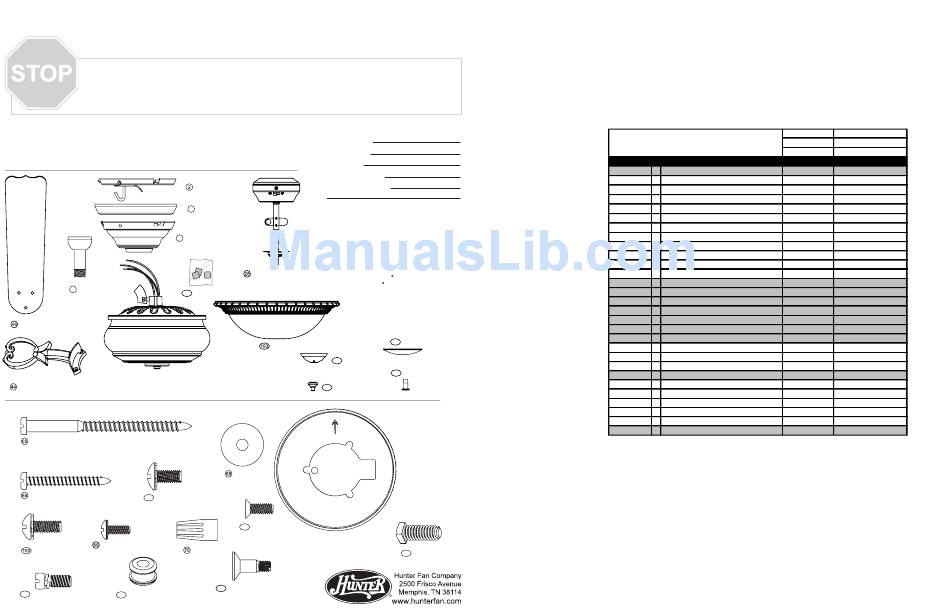

Using the Parts Guide below, check to make sure all parts are included in the box.
If parts are missing or damaged call 1-888-830-1326.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Before installing your fan, record the following information for your records and warranty assistance.
Fan Parts
(Not Drawn to Scale)
3
Canopy
7 Hanger Ball
75
/ Downrod
Assembly
Blade Set
Blade Iron Set
Hardware
Wood Screw
Wood Screw
Canopy Screw
62
Screw, Machine, 6-32
Locking Screw
47 Blade Iron Armature Screw
66 Blade Grommet
Model Name
Catalog No.
Serial No.
Date Purchased
Where Purchased
Ceiling Plate
Missing / Broken Parts:
4 Canopy
Call 1-888-830-1326
Trim Ring
Fan does not work:
1. Reference the Trouble Shooting guide in
your Instruction Manual.
2. Call your Local Service Center.
3. Call Technical Support at 901-248-2222.
For additional information on:
Switch / Housing Assembly
Hunter Products
Dealer Location
Call 1-800-448-6837
Balancing Kit
www.hunterfan.com
Globe
151 Light Kit Cap
Motor Housing Assembly
152 Light Kit Finial
(Drawn to Scale)
27
Low Profile Washer
Flat Washer
Screw, Switch
131
Housing
Assembly
Wire Nut
67 Blade Assembly Screw
Trouble Shooting
Service Center Locator
29 Switch Housing Cap
30 Switch Housing Plug
8 Set screw
98000-01-664
9/19/06
R

Part List

Asm. Dwg. #
Item # Item Name
* Hanging System Kit
2 Ceiling Plate
3 Canopy
4 Canopy Trim Ring
7 Hanger Ball / Downrod Assembly
8 Setscrew
27 Low Profile Washer
62 Canopy Screw
64 Wood Screw
65 Wood Screw
68 Flat Washer
100 Locking Screw
28 Switch/Housing Assembly
29 Switch Housing Cap
30 Switch Housing Plug
44 Blade Iron Set
46 Blade Set
47 Blade Iron Screw
149 Light Kit
150 Glass Bowl
151 Light kit cap
152 Light kit finial
* Hardware Kit
69 Screw, Machine, 6-32
66 Blade Grommet
67 Blade Assembly Screw
70 Wire Nut
131 Screw, Switch Housing Assembly
75 Balancing Kit
Model # 23801
96788-01
Finish Monatobain/Fontana
Qnty Part #
1 97232-02-568
1 -----------
1 -----------
1 -----------
1 -----------
1 -----------
1 -----------
3 -----------
2 -----------
2 -----------
4 -----------
3 -----------
1 94521-76-000
1 73853-01-568
1 73854-01-568
1 96786-05-568
1 75885-35-000
10 63755-02-247
1 97220-01-000
1 87527-01-000
1 76056-01-568
1 76057-01-568
1 94268-00-860
3 74506-03-247
15 05989-01-000
15 63730-01-247
4 05172-01-000
3 64555-02-133
1 07570-01-000
