Hunter 23782 Parts Manual

PARTS GUIDE PARTS GUIDE
PARTS GUIDE PARTS GUIDE

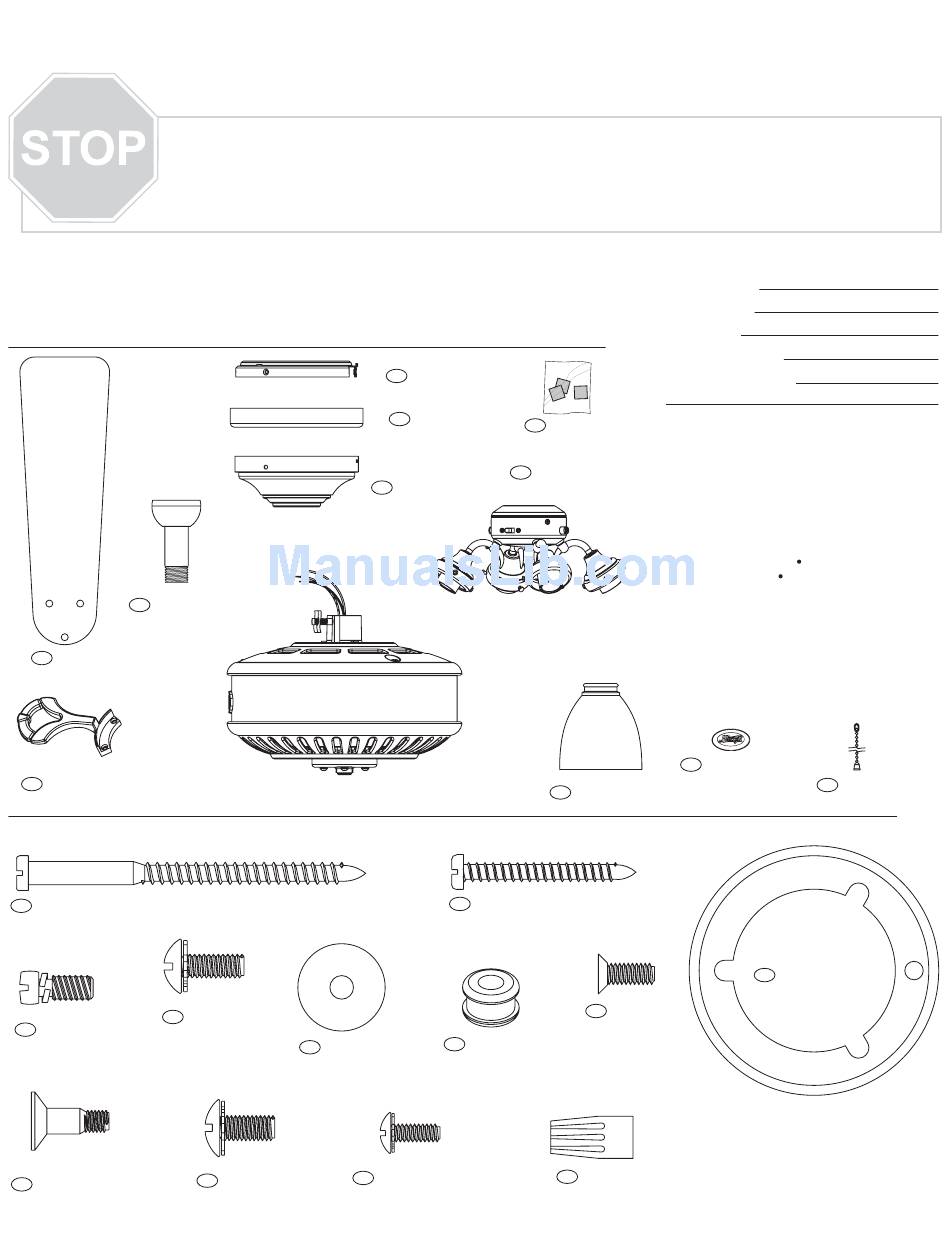

Using the Parts Guide below, check to make sure all parts are included in the box.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Before installing your fan, record the following information for your records and warranty assistance.
Fan Parts
Hanger Ball /
7
Downrod
Assembly
46 Blade Set
44 Blade Iron Set
Hardware
65 Wood Screw
100 Locking Screw
47 Screw, Blade
Iron Armature
67 Blade Assembly Screw
If parts are missing or damaged call 1-888-830-1326.
(Not Drawn to Scale)
3
Motor Housing Assembly
Flat Washer
68
69
62 Canopy Screw
2 Ceiling Plate
4 Canopy
Balancing Kit
75
Trim Ring
Switch /
28
Housing
Canopy
Assembly
150
(Drawn to Scale)
64 Wood Screw
66 Blade Grommet
Machine Screw, 6-32 70
Model Name
Catalog No.
Serial No.
Date Purchased
Where Purchased
Missing / Broken Parts:
Call 1-888-830-1326
Fan does not work:
1. Reference the Trouble Shooting guide in
your Instruction Manual.
2. Call your Local Service Center.
3. Call Technical Support at 901-248-2222.
For additional information on:
Hunter Products
Dealer Location
Call 1-800-448-6837
www.hunterfan.com
Pull Chain Pendant
76
Globe / Shade
Screw, Switch
131
Housing
Assembly
Wire Nut
Trouble Shooting
Service Center Locator
Pull Chain
78
27 Low Profile Washer
