Summary of Contents for Potterton Performa System 12 HE

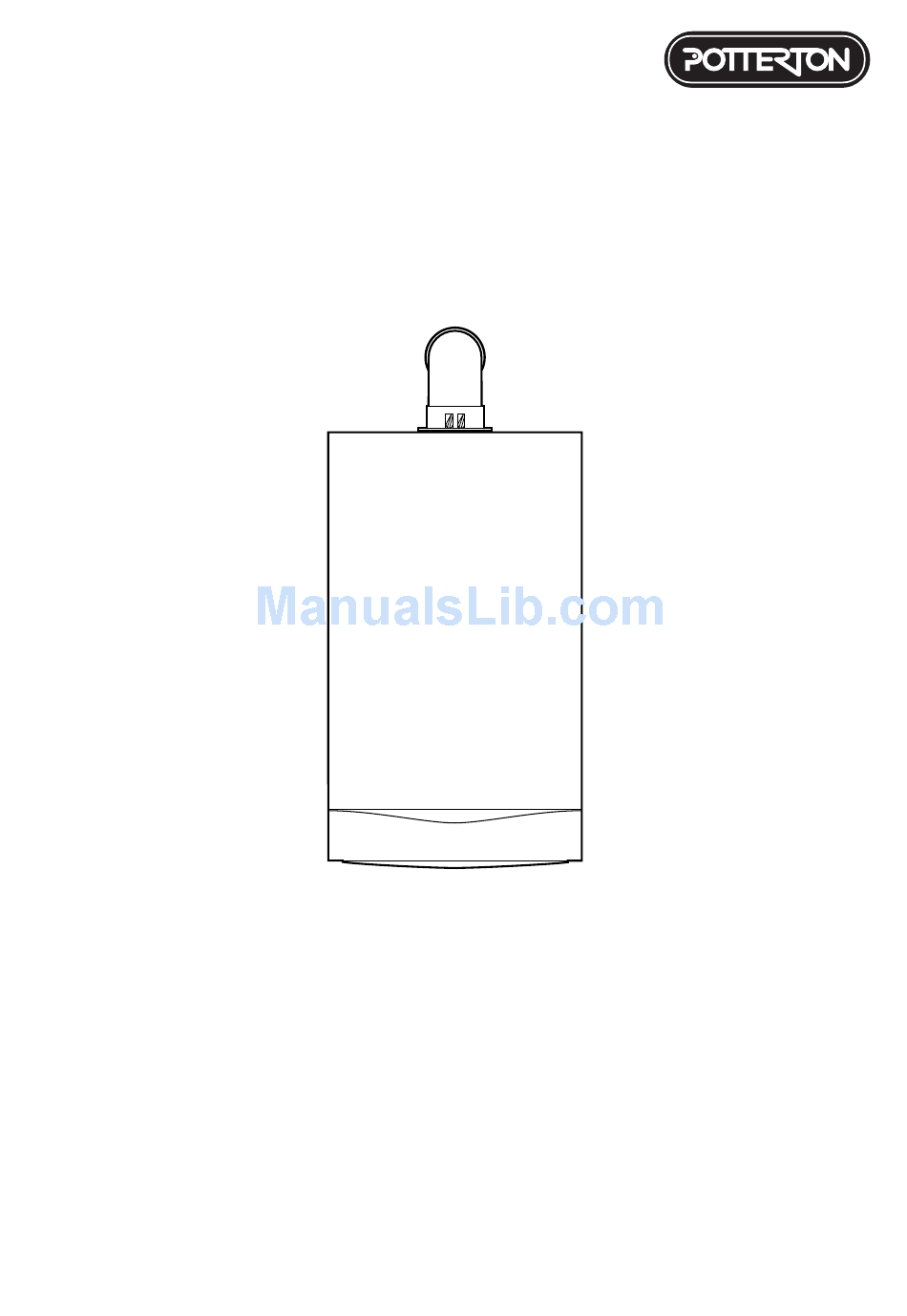

Page 1 Installation & Service Instructions Performa System HE This is a Wall Mounted Powered Flue Condensing Combination Boiler Gas Fired Central Heating Unit. The boiler meets the requirements of Statutory Instrument “ The Boiler (Efficiency) Regulations 1993 N 3083” and is deemed to meet the requirements of Directive 92/42/EEC on the energy efficiency requirements for new hot water boilers fired with liquid or gaseous fuels:- Type test for purpose of Regulation 5 certified by:...
Page 2: Natural Gas
Natural Gas Potterton Performa System 12 HE G.C.N 41 591 24 Potterton Performa System 18 HE G.C.N 41 591 25 Potterton Performa System 24 HE G.C.N 41 591 26 Potterton Performa System 28 HE G.C.N 41 591 27 This product has an energy rating (B) on a scale of A to G.
Page 3: Table Of Contents
CONTENTS Section Page Legislation Introduction General Layout Appliance Operation Technical Data Dimensions and Fixings System Details Site Requirements Installation Commissioning 10.0 Completion 11.0 Servicing 12.0 Changing Components 13.0 Electrical 14.0 Short Parts List 15.0 Fault Finding Publication No. 5111817...
Page 4: Legislation
Codes of Practice, most recent version should “Benchmark” Log Book be used As part of the industry-wide “Benchmark” initiative all Potterton boilers now In GB the following Codes of Practice apply: Standard Scope include an Installation, Commissioning and Service Record Log Book. Please BS 6891 Gas Installation.
Page 5: Introduction
INTRODUCTION Description 1. The Potterton Performa System HE are fully automatic gas fired wall mounted system boilers. They are room sealed and fan assisted. Case Front Panel 2. The boilers are set to give a maximum output of 12.5kW, 18.9kW, 25.2kW or 29.3kW when in condensing mode.
Page 6: General Layout
GENERAL LAYOUT Layout Air Pressure Switch Expansion Vessel Burner Manifold Automatic Air Vent Circulation Pump Drain Off Point Pressure Relief Valve System Pressure Gauge Control Box Condensate Trap Flame Sensing Electrode Spark Electrode Burner Primary Heat Exchanger Fan Assembly Secondary Heat Exchanger On/Off/Reset Selector Switch Central Heating Temperature Control Flame Failure or Blocked Condensate Drain...
Page 7: Appliance Operation
APPLIANCE OPERATION Operating Mode (Fig. 2) Boiler Primary Circuit 1. With a demand for heating, the pump circulates water through the primary circuit. At a pre-determined flow rate the hydraulic differential pressure switch operates, initiating the ignition sequence. 2. The main burner ignites at low rate, then the gas valve controls the gas rate to maintain the heating temperature measured by the temperature sensor.
Page 8: Technical Data
Installation Lift Weight Electrical Protection IPX5D Pump - Available Head SEDBUK Declaration For Performa System 12 HE The seasonal efficiency (SEDBUK) is 86.8% (88.9% LPG) Band B This value is used in the UK Government’s Standard Assessment Procedure (SAP) for energy rating of dwellings. The test data from which it has been calculated have been certified by 0051.
Page 9 TECHNICAL DATA System 18 HE Appliance Type NO x Class Central Heating Primary Circuit Pressures Appliance Category CAT II 2H 3P Condensate Drain 1” BSP Safety Discharge Heat Input Max Operating Flue Terminal Diameter 100mm Min Operating Dimensions Projection 125mm 18.7 10.6 Recommend Operating...
Page 10 TECHNICAL DATA System 24 HE Appliance Type NO x Class Central Heating Primary Circuit Pressures Appliance Category CAT II 2H 3P Condensate Drain 1” BSP Safety Discharge Heat Input Max Operating Flue Terminal Diameter 100mm Min Operating Dimensions Projection 125mm 24.8 10.6 Recommend Operating...
Page 11 TECHNICAL DATA System 28 HE Appliance Type NO x Class Central Heating Primary Circuit Pressures Appliance Category CAT II 2H 3P Condensate Drain 1” BSP Safety Discharge Heat Input Max Operating Flue Terminal Diameter 100mm Min Operating Dimensions Projection 125mm 28.9 11.9 Recommend Operating...
Page 12: Dimensions And Fixings
DIMENSIONS AND FIXINGS Dimensions 3° A 780mm B 345mm C 450mm D 107mm Ø Min. E 185mm F 190mm G 131mm 360° Orientation Tube Ø 100mm Tap Rail 28mm Condensate Drain 130 mm 130 mm 65 mm Heating Heating Pressure Relief Return Flow Inlet...
Page 13: System Details
SYSTEM DETAILS Central Heating Circuit 1. The appliance is suitable for fully pumped SEALED SYSTEMS ONLY. Treatment of Water Circulating Systems • All recirculatory water systems will be subject to corrosion unless an appropriate water treatment is applied. This means that the efficiency of the system will deteriorate as corrosion sludge accumulates within the system, risking damage to pump and valves, boiler noise and circulation problems.
Page 14 SYSTEM DETAILS System Filling and Pressurising 1. A filling point connection on the central heating return pipework must be provided to facilitate initial filling and pressurising and also any subsequent water loss replacement/refilling. Double Stop Check Stop 2. The filling method adopted must be in accordance Valve Valve Valve...
Page 15: Site Requirements
SITE REQUIREMENTS 20mm/5mm Min Location see *NOTE: 5mm Min 450mm 1. The boiler may be fitted to any suitable wall with the flue passing through an outside wall or roof and discharging to atmosphere in a position permitting satisfactory removal of combustion products and providing an adequate air supply.
Page 16 SITE REQUIREMENTS Ventilation of Compartments 1. Where the appliance is installed in a cupboard or compartment, no air vents are required. 2. BS 5440: Part 2 refers to room sealed appliances installed in compartments. The appliance will run sufficiently cool without ventilation. Gas Supply 1.
Page 17 SITE REQUIREMENTS Condensate Drain Termination to an internal soil Boiler FAILURE TO INSTALL THE CONDENSATE and vent pipe DISCHARGE PIPEWORK CORRECTLY WILL AFFECT THE RELIABLE OPERATION OF THE BOILER The condensate discharge pipe MUST NOT RISE at any point along its length. There MUST be a fall of AT LEAST 2.5°...
Page 18 SITE REQUIREMENTS Flue NOTE: Due to the nature of the boiler a plume of water vapour will be discharged from the flue. This should be taken into account when siting the flue terminal. 1. the following guidelines indicate the general requirements for siting balanced flue terminals.
Page 19 SITE REQUIREMENTS Flue Dimensions The standard horizontal flue kit allows for flue lengths between 100mm and 685 from elbow to terminal (Fig. 10). The maximum permissible equivalent flue length System 12 &18 HE 5 metres System 24 HE 4 metres System 28 HE 3 metres Flue Trim...
Page 20 SITE REQUIREMENTS 7.11 Flue Options 1. The Potterton Performa System HE range can be fitted with flue systems as illustrated. 2. The standard flue is suitable only for horizontal applications. 3. Maximum permissible equivalent flue lengths are:- 12,18 Horizontal Concentric...
Page 21 INTRODUCTION Initial Preparation The gas supply, gas type and pressure must be checked for suitability before connection (see Section 7.4). 1. After considering the site requirements (see Section 7.0) position the fixing template on the wall ensuring it is level both horizontally and vertically. 2.
Page 22: Installation
Wall Plate INSTALLATION Fitting The Boiler 1. Remove the sealing caps from the boiler connections. 2. Lift the boiler using the lower edges. Engage the slots at the top rear of the boiler on the wall plate (Fig. 14). 3. Insert the sealing washers between the valves and pipes on the wall plate and the boiler connections.
Page 23 INSTALLATION Fitting The Flue HORIZONTAL FLUE 1. The standard flue is suitable for lengths between 100mm minimum and 685mm maximum, as measured from the edge of the flue elbow outlet to the joint between the terminal and air duct (Fig. 16). 2.
Page 24 11. Fit the flue trim if required, and if necessary fit a terminal guard (see Section 7.9 & 7.10). VERTICAL FLUE 1. Only a flue approved with the Potterton Performa System HE range can be used. 2. For information on vertical flues consult the Potterton Flue Guide brochure.
Page 25 INSTALLATION Making The Electrical Connections To connect the mains input cable proceed as follows:- 1. Slacken the facia securing screws and lift the outercase panel so that its securing tabs are clear of the facia. Remove the panel. Control Box Cover 2.
Page 26: Commissioning
COMMISSIONING Commissioning the Boiler Screw 1. Reference should be made to BS 5449 when commissioning the boiler. 2. Ensure that the filling loop is connected and open, Automatic then open the heating flow and return valves on the Air Vent boiler.
Page 27 COMMISSIONING Checking the Burner Pressure 1. Turn on the gas and electrical supplies to the boiler and ensure that all external controls are calling for heat. Pressure Test Point Sealing Screw 2. Set the temperature control to maximum and the selector switch to the Off position (Fig.
Page 28: Completion
10.0 COMPLETION 10.1 Completion Case Front Panel 1. Hinge the facia panel upwards and refit the case front panel. Tighten the securing screws (Fig. 34). 2. Instruct the user in the operation of the boiler and system, explaining the operational sequence. 3.
Page 29: Servicing
11.0 SERVICING 11 .1 Annual Servicing Case Front Panel 1. For reasons of safety and economy, it is recommended that the boiler is serviced annually. Servicing must be performed by a competent person. 2. After servicing, complete the relevant section of the “Benchmark”...
Page 30 11.0 SERVICING 11.1 Annual Servicing (Cont) Baffle Spring Clip 12. Ease the front edge of the left hand baffle upwards, disengaging the spring clip. Disengage the tabs on the baffle from the slots in the fan hood (Fig. 38). 13. Undo the screws securing the fan and hood to the appliance back panel.
Page 31: Changing Components
12.0 CHANGING COMPONENTS IMPORTANT: When changing components ensure that both the gas and electrical supplies to Pressure Switch the boiler are isolated before any work is started. When the new component has been fitted turn the selector switch fully anticlockwise against the spring pressure to the ‘Reset’...
Page 32 12.0 CHANGING COMPONENTS 12.3 Heat Exchanger (Fig. 44) 1. Remove the fan as described in section 12.1. 2. Drain the primary circuit. Prise the pipe connecting clips off the joints in the flow and return pipes. Remove the heat exchanger return pipe. 3.
Page 33 12.0 CHANGING COMPONENTS 12.5 Injectors (Fig. 46) Injector Inlet Elbow Manifold 1. Remove the burner as described in Section 12.4. Injector 2. Undo the screws securing the injector manifold to the inlet elbow and remove the manifold. Gasket 3. Unscrew and replace injectors as required and examine the sealing gasket, replacing as necessary.
Page 34 12.0 CHANGING COMPONENTS 12.8 Gas Valve (Fig. 48) Modulator 1. Undo the nut on the gas feed pipe under the Wires boiler. Ignition 2. Completely undo the securing screws and hinge Gas Valve Lead the facia panel down. 3. Disconnect the wires from the valve modulator and the ignition lead from the spark generator.
Page 35 12.0 CHANGING COMPONENTS 12.12 Pump - Head Only (Fig. 51) 1. Drain the primary circuit and remove the socket head screws securing the pump head to the body and draw the head away. 2. Undo the screw on the pump wiring cover and remove the cover.
Page 36 12.0 CHANGING COMPONENTS Pressure Gauge Capillary 12.15 Pressure Gauge (Figs. 54 & 55) 1. Drain the primary circuit and undo the nut on the pressure gauge capillary. 2. Remove the timer cover and ease the timer wiring aside. Undo the screws securing the gauge retaining Fig.
Page 37 12.0 CHANGING COMPONENTS 12.18 Main PCB (Fig. 59) 1. Note the setting of the temperature control knob. Rotate the knob fully anticlockwise and carefully pull it off the drive pin. 2. Completely undo the screws securing the control box cover and release the cover retaining barbs from their slots.
Page 38 12.0 CHANGING COMPONENTS 12.20 Central Heating Differential Valve (Figs. 60 & 61) 1. Drain the primary circuit. 2. Undo the screw securing the microswitch to the differential valve. Allow the microswitch to rest to one side. 3. Undo the pressure gauge capillary nut and heating flow pipe nut from the valve.
Page 39 12.0 CHANGING COMPONENTS 12.23 Secondary Heat Exchanger) (Fig. 63) 1. Drain the primary circuit Secondary Heat Exchanger 2. Undo the four screws securing the right hand case panel. Remove the panel. Pipe Connecting Clip 3. Prise the connecting clips from the heat exchanger return pipe and the boiler return pipe.
Page 40: Electrical
13.0 ELECTRICAL 13.1 Illustrated Wiring Diagram Pump Air Pressure Switch Hydraulic Differential Pressure Switch Control PCB Return Heating Temperature Sensor Flame Sensing Central Heating Electrode NTC Sensor Mains Input Link Fuse Overheat Stat Flue Stat - brown - black - blue Reset Selector Switch - red Gas Valve...
Page 41: Short Parts List
14.0 SHORT PARTS LIST 14.1 Short Parts List Key G.C. Description Manufacturers No. No. Part No. E66 383 Fan (12,18, 24 HE) E66 527 Fan (28 HE) 393 374 Pressure Switch 247380 Heat Exchanger (12,18 HE) Heat Exchanger (24,28 HE) Burner (12 HE) Burner (18 HE) Burner (24,28 HE)
Page 42: Fault Finding
15.0 FAULT FINDING Carry out initial fault finding checks 1. Check that gas, water and electrical supplies are available at the boiler. Electrical supply = 230V ~ 50 Hz. CH water system pressurised to 0.5 bar when the boiler is cold. The preferred minimum gas pressure is 19.5mbar (natural gas), or 36mbar (propane).
Page 43 15.0 FAULT FINDING Fault Finding Solutions Sections A to E Is there 230V at: Main terminals L and N Check electrical supply Main terminal fuse Replace fuse neon Replace PCB illuminated Selector terminals a & b Check wiring and a & 3. PCB - A4 Replace selector connector terminals 4 &...
Page 44 15.0 FAULT FINDING Check the burner setting pressure of the gas valve (see Section 9.2 of Commissioning) Voltage at modulating coil of gas valve is: Max. burner press.approx 9V DC (13V DC LPG) Replace gas valve Min. burner press.approx 1V DC Current at modulating coil of gas valve is: (Use an instrument with average function for this measure)
Page 45 16.0 NOTES Publication No. 5111817...
Page 46 16.0 NOTES Publication No. 5111817...
Page 47 Publication No. 5111817...
Page 48 B A X I P O T T E R T O N A Trading Division of Baxi Heating UK Ltd Brownedge Road Bamber Bridge Preston Lancashire PR5 6UP After Sales Service 08706 096 096 Technical Enquiries 08706 049 049 Website www.potterton.co.uk 923.690.1 company...
