In mode, the
A L
UTOMATIC EGEND
range best suited to keep recent sonar returns visible;
however, the depth range can be adjusted to optimize
the display for viewing the second return. The display
can also be optimized for maximum display resolution,
making it possible to distinguish fish very close together
or close to the bottom.

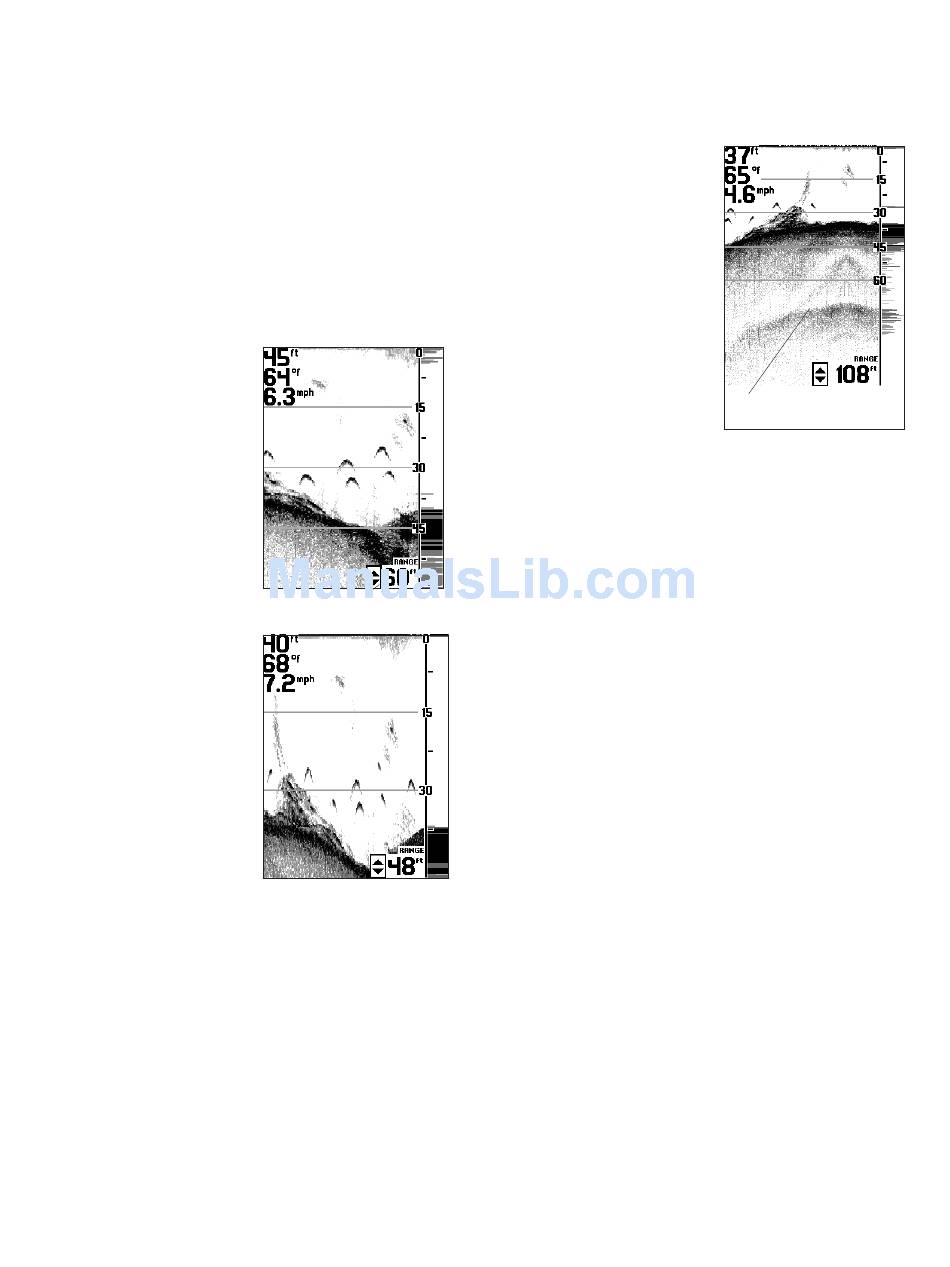

Optimizing the Depth Range for Sonar Targets
When the image of the bottom does not appear close
to the bottom of the LCD display, the Legend 3000
Series is not fully
optimizing the display to
show sonar targets, such
as fish, that are very close
together. To enhance the
ability of the unit to
separate sonar targets and
to optimize the display for
maximum resolution, follow
these steps:
1. Make sure the Legend
3000 Series is operating
in Automatic Mode.
2. Push the knob. An
R
ANGE
adjustment indicator
appears at the lower
right corner of the
.
W
INDOW
3. Turn the knob
R
ANGE
counterclockwise until
the image of bottom is
close to the bottom of
the LCD display but still
shows the area
interest.
Note: As the depth of the water
increases, the
L 3000 S
EGEND
changes the depth range to
keep the bottom on-screen. The
range to keep the bottom contour close to the bottom of the
display.
To return the depth range to normal viewing, turn the
unit off and back on again using the
the only way to reset the depth range to normal
viewing.
selects the depth
3000 S
ERIES

Automatic Mode

Adjustment Indicator
C
HART
of
Optimized Display
ERIES
uses a depth
L 3000 S
EGEND ERIES
knob. This is
G
AIN
USING THE LEGEND 3000 SERIES
MODES OF OPERATION / OPTIMIZING THE DISPLAY
Optimizing the Depth
Range for Second Return
To optimize the depth
range for viewing the
second return, follow these
steps.
1. Make sure the
L
EGEND
is operating
S
ERIES
Automatic.
2. Push the knob. An
R
ANGE
adjustment indicator
appears at the lower right
corner of the
C W
HART
3. Turn the
R
ANGE
clockwise until
second return is visible
on the display.
4. To return the depth range to normal viewing, rotate
the knob counterclockwise until the depth
R
ANGE
range stops updating.
Note: The second return does not appear at many of the deeper
depth ranges. The appearance of the second return depends
on depth of the water, water conditions, bottom hardness and
the gain setting.
The operates with this offset depth
L 3000 S
EGEND ERIES
range until it is returned to the original settings, or the
unit is turned off, after which the unit defaults to
factory settings.
Optimized Display showing
second return
3000
in
.
INDOW
knob
Second return
the
7
