sonar returns, and will display a Fish Symbol when very selective requirements are met.
When a fish is detected, a fish icon and its depth are displayed above the return that has
been classified as being a fish. Fish symbols come in three different sizes to indicate
the intensity of the return; in addition, there is a unique symbol set associated with
each of the six beams, for a total of 18 possible fish symbols which can be displayed.

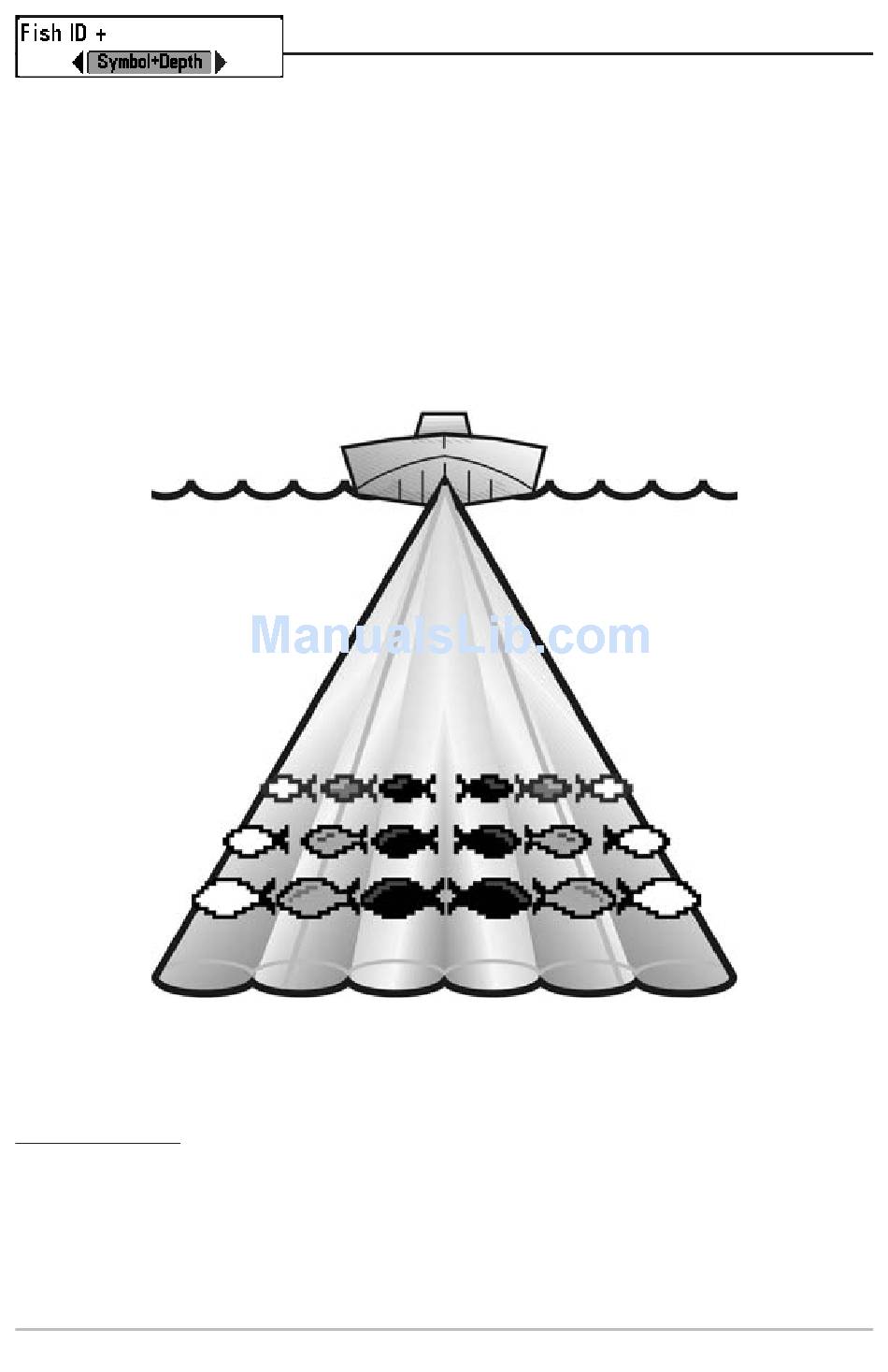

The following graphic illustrates the different Fish ID+™ symbols and shows the beams
with which they are associated. For instance, a hollow fish facing left indicates it was
detected in the far left beam and a hollow fish facing right indicates it was detected in
the far right beam.
When Fish ID+™ is turned off, the Fishing System shows only the raw sonar returns on
the display.
To set Fish ID+™:
1. Highlight Fish ID+ on the Sonar main menu.
2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to change the Fish ID+ setting.
(Off, Symbol Only, Symbol+Depth, Default = Symbol+Depth)
35
Fish ID+™
Fish ID+™ uses advanced signal processing to interpret
