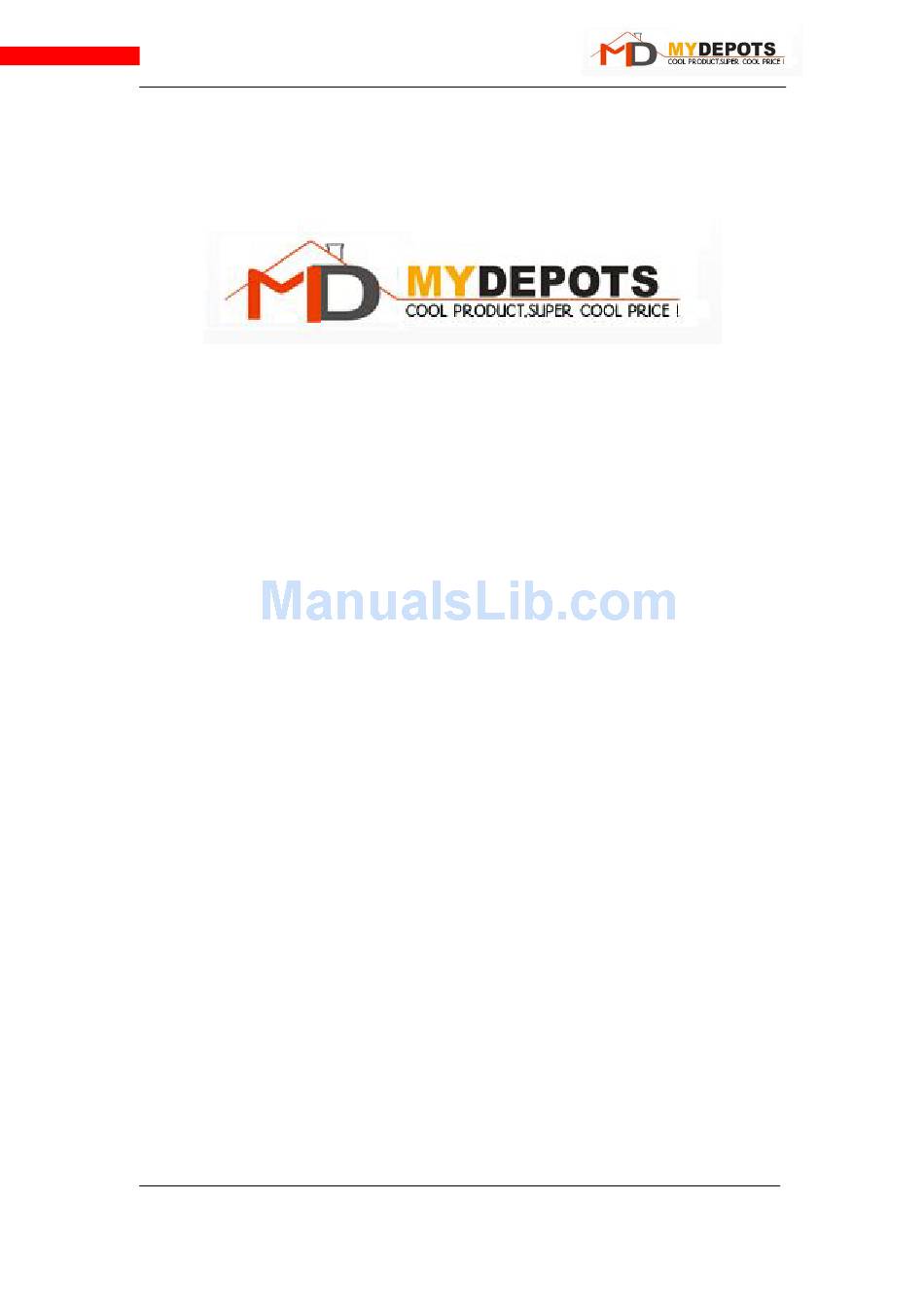

- Page 1 Manual for Remote View -Iphone H.264 Network Embedded DVR INSTRUCTION MANUAL FOR REMOTE VIEW&CONTROL ---------------- Iphone edition---------------- Visionari Limited Liability Company Visionari Copyright(1.5)2010Version http://www.mydepots.com...
- Page 2 DVR could be visited from WAN(you could found these settings from “MD-Instruction Manual for Remote Control-Router UPNP Supported.pdf” Or : “MD-Instruction Manual for Remote control-Router Without UPNP.pdf Visionari Limited Liability Company Visionari Copyright(1.5)2010Version http://www.mydepots.com...
- Page 3 Step 1: Plug network cable line into LAN, assure the light is on, indicating network is normal. Figure 1 Step 2: Coming into DVR’s main menu, select 【ADVANCE】 Figure 2 Step 3: Then select 【MOBILE】 Figure 3 Visionari Limited Liability Company Visionari Copyright(1.5)2010Version http://www.mydepots.com...
- Page 4 Attention here: Please select correct bandwidth according to local mobile carriers as well as net standard your cell phone supports. 2.5G: For GPRS and CDMA users 2.75G: For EDGE users 3G: For 3G users Figure 4-1 Visionari Limited Liability Company Visionari Copyright(1.5)2010Version http://www.mydepots.com...
- Page 5 Step 5-1: Visit your router’s IP address (It’s easily found from your router’s surface), now take writer’s router address as example(The operation steps are different according to different routers, but actually they’re in the same way) Figure 5-1 Visionari Limited Liability Company Visionari Copyright(1.5)2010Version http://www.mydepots.com...
- Page 6 【Port from】 : fill in 【MEDIA PORT】 , previously we keep it as 00100, so here keep accordance. 【Protocol】: select 【Both】 【IP Address】: input your DVR’s IP, you can see writer fill as 192.168.1.201. 【Port to】: same as 【Port from】 【Enable】: click it to enable. Figure 5-3 Visionari Limited Liability Company Visionari Copyright(1.5)2010Version http://www.mydepots.com...
- Page 7 >Your router must be with UPNP function >You must select 【TYPE】as 【DHCP】on DVR’s 【NETWORK】interface. Step 6-1: Input your router’s IP in browser’s address bar, and land your router’s managing interface, then find 【UPNP】 Figure 6-1 Visionari Limited Liability Company Visionari Copyright(1.5)2010Version http://www.mydepots.com...
- Page 8 Equally, land your router’s managing interface, inspect setting list for UPNP, check whether mobile port are automatically added here or not, of course, here , DVR’s web port, media port should be added already. Now we can see they’re all here. Figure 6-3 Visionari Limited Liability Company Visionari Copyright(1.5)2010Version http://www.mydepots.com...
- Page 9 Memo: If you wanna uninstall, then Under your iPhone main menu，Press and hold the 【Meye】icon for a few seconds，you will see the Delete Button to uninstall the 【Meye】. Step 8-4: Main menu, After installation, you’ll find menu as below, Figure 8-4 Visionari Limited Liability Company Visionari Copyright(1.5)2010Version http://www.mydepots.com...
- Page 10 Capture the image from your camera Setup your ip_address and port and your Settings account info Next group Next channel group （1~4，5~8，9~12，13~16） Step 8-5: Click 【Settings】 you’ll see setting interface as below: Figure 8-5 Visionari Limited Liability Company Visionari Copyright(1.5)2010Version http://www.mydepots.com...
- Page 11 If you are having trouble connecting, please check the wireless network configuration on your phone. Visionari Limited Liability Company Visionari Copyright(1.5)2010Version http://www.mydepots.com...
