MyDepots H.264 Network Embedded DVR Instruction Manual

Instruction manual for remote control
Hide thumbs Also See for H.264 Network Embedded DVR:

Advertisement

Quick Links

Download this manual See also: User Manual
1
Manual for Remote Control-Router Without UPNP
H.264 Network
Embedded DVR

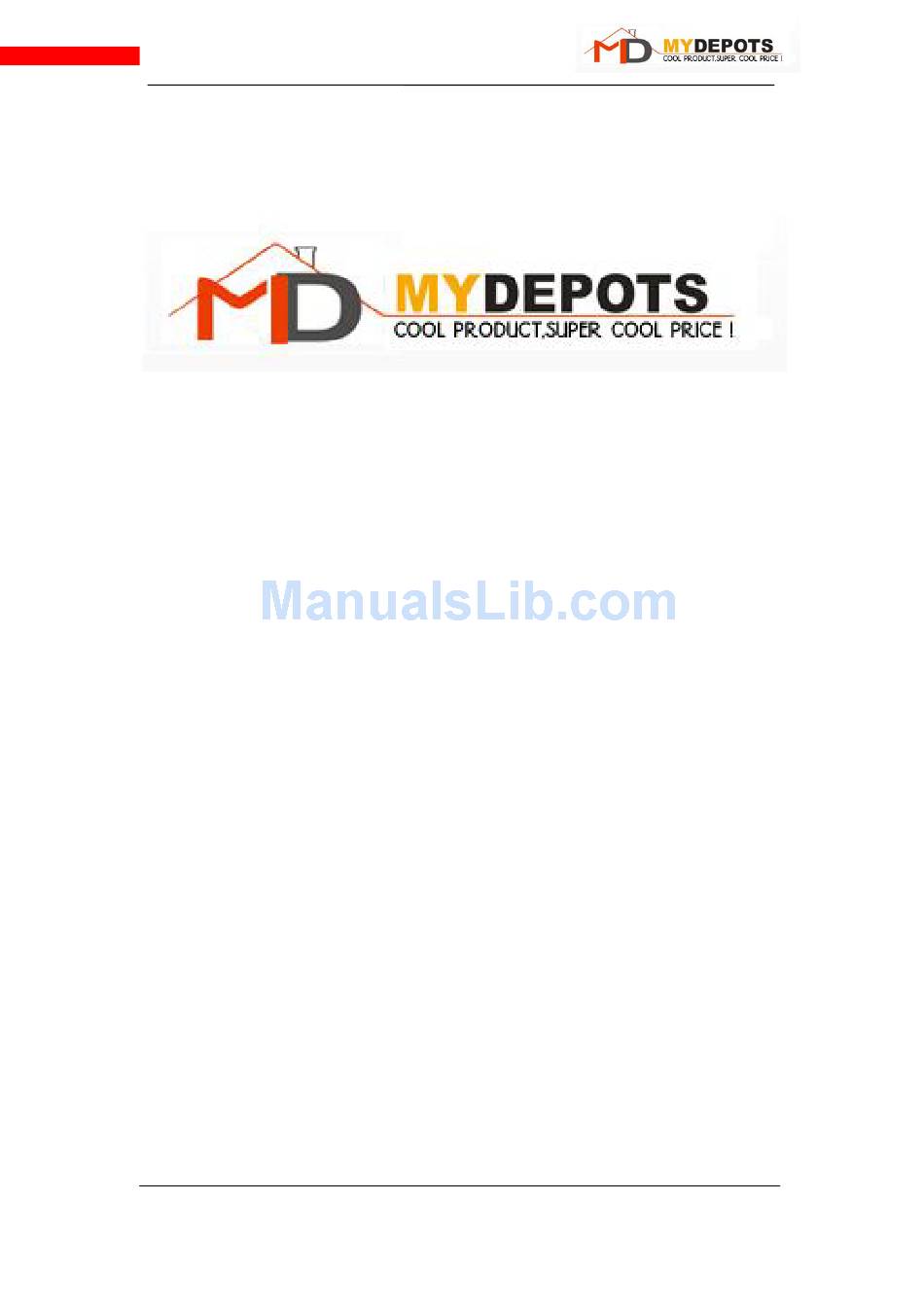

INSTRUCTION MANUAL FOR REMOTE CONTROL
--------------Router Without UPNP Function-------------
Visionari Limited Liability Company
Visionari Copyright(1.4)2010Version
http://www.mydepots.com
