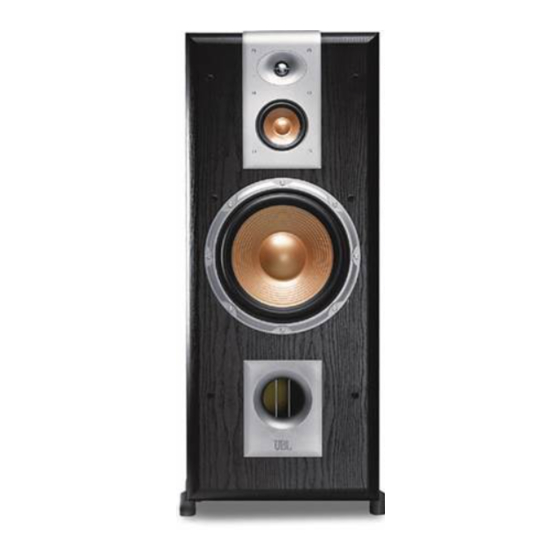

JBL Studio S310II Technical Manual

Technical Manual
S310
II
Studio ™ Series
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance
• Max Amp Power
• Frequency Response
• Sensitivity
• Crossover Frequencies

SYSTEM COMPONENTS:

• Enclosure
• Grille
• Low-Frequency Transducer 10" (254mm) PolyPlas,
DC Resistance
• Mid-Frequency Transducer
DC Resistance
• High-Frequency Transducer 1" (25mm) titanium dome,
DC Resistance
• Crossover Network
PACKAGING
Upper/Lower
Foam
338030-001
Outer Carton
338027-001
JBL Consumer Products, 250 Crossways Park Dr., Woodbury, New York 11797
8 ohms
200 watts
37Hz – 20kHz (-3dB)
91dB (1 watt @ 1 meter)
850Hz, 3500Hz
S310 (not for sale)
II
335146-002
™ shielded
(335150-002)
5.4 ohms ±10%
4" (101mm) PolyPlas, ™ shielded
(338040-001)
4.3 ohms ±10%
shielded (338042-001)
3.4 ohms ±10%
335411-002
Microfoam
(2 pcs.)
OWNER'S
MANUAL
Owner's Manual
338018-001
Warranty Card
338322-001
Survey Card
331384-001
Spike Foot Kit
338076-001
AURAL SWEEP TEST SPECIFICATIONS:
• A. System Aural Sweep Test 6.0V Input 40Hz to 20kHz
• B. L.F. Aural Sweep Test
• C. M.F. Aural Sweep Test
• D. H.F. Aural Sweep Test
PHYSICAL SPECIFICATIONS:
• Enclosure dimensions
(H x W x D)
• Weight
WARRANTY:
• Refer to Warranty Statement packed with each product.

WIRING DIAGRAM

Driver
High-Frequency
338042-001
YELLOW/BLACK
Driver
Mid-Frequency
338040-001
WHITE/BLACK
Driver
Low-Frequency
335150-002
S310
II
L1
2.4mH
RED
+IN
INPUT
BLACK
–IN
C7
16µF/100V
C4
0.01µF/250V
2.4 ohms
C8
7µF/100V
C6
0.01µF/250V
6.0V Input 40Hz to 1kHz
4.0V Input 500Hz to 4kHz
2.83V Input 3kHz to 20kHz
38" x 13" x 12-1/2"
965mm x 330mm x 318mm
55 lb/25kg each
Crossover Network
335411-002
YELLOW
WHITE
GREEN
GREEN/BLACK
SCHEMATIC
GREEN
C1
C2
60µF
0.01µF
100V
250V
R1
2.4 ohms
10W
BLK/GREEN
R2
L2
2.4 ohms
300µH
10W
WHT/BLACK
R6
40 ohms
5W
WHITE
R7
10W
YELLOW
R5
L4
20 ohms
.3µH
5W
YEL/BLK
+
250
L.F.
205 –
–
110
M.F.
+
205
+
205
H.F.
–
110
07/02
