IR-EXT-050C
IR over CAT5 Extender
User Manual
Made in Taiwan

Advertisement

Table of Contents
loading

Related Manuals for Satson IR-EXT-050C

Summary of Contents for Satson IR-EXT-050C

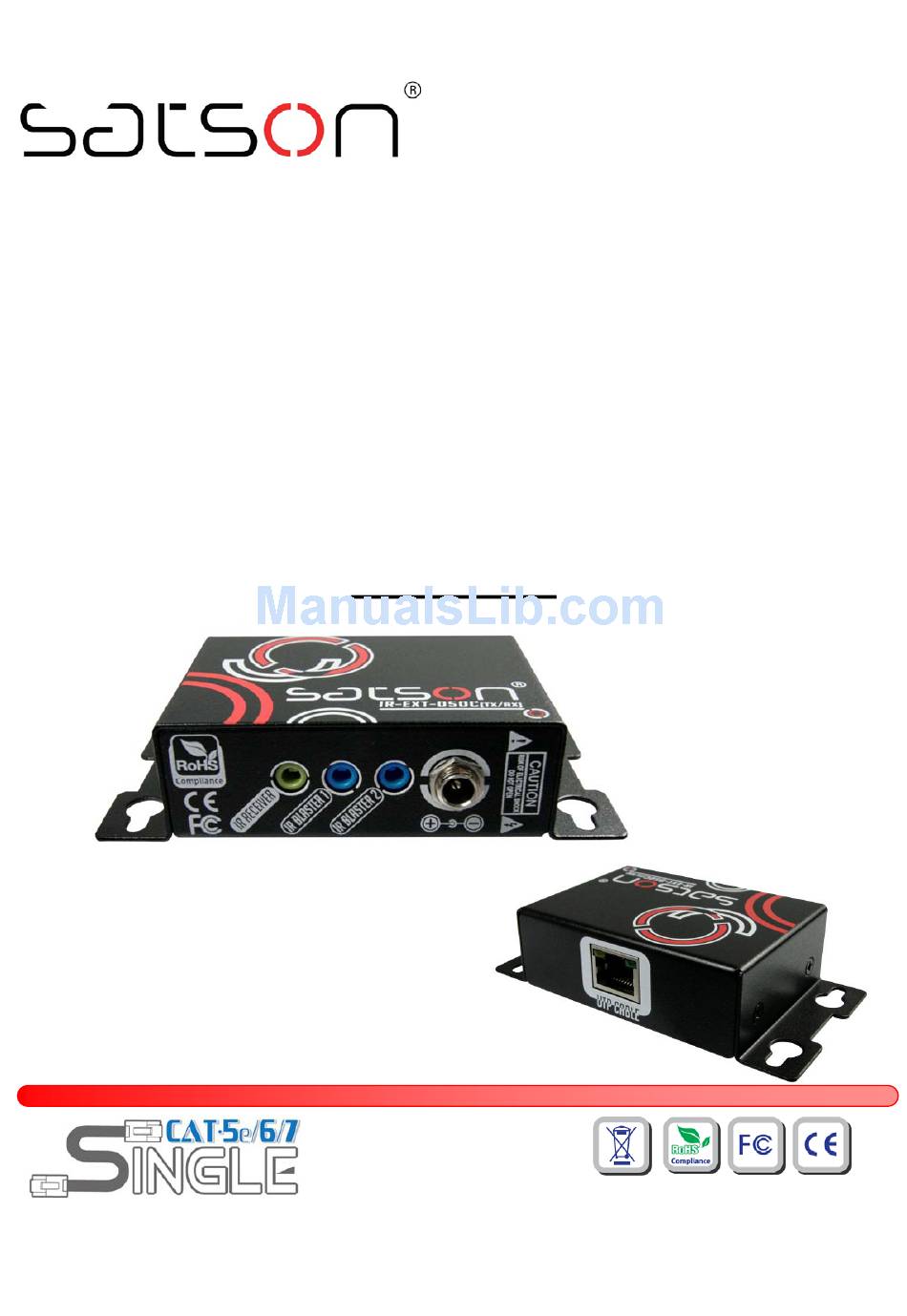

  • Page 1 IR-EXT-050C IR over CAT5 Extender User Manual Made in Taiwan...

  • Page 2: Safety And Notice

    However, like all electronic equipments, the IR-EXT-050C should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 Introduction The IR-EXT-050C IR over CAT5 Extender boosts up your IR control distance at least 100m (330ft). With single cost effective CAT-5 cable, users can readily extend and duplicate IR access to IR controllable devices such as Blue-ray disc players and TV to increase application flexibility. Typical applications include digital signage, education and demonstration system, and home theater.

  • Page 4: Specifications & Package Contents

    Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x IR-EXT-050C Package Contents 1x User Manual 1x 5V 2A interlocked wall wart power adapter In fact, there is no diffference between TX and RX. Therefore customer can take any as TX or RX without...

  • Page 5: Panel Descriptions

    Panel Descriptions IR-EXT-050C-TX/RX Front Panel 1. IR receiver: Connect to a IR receiver cable 2. IR local output1: Connect to a IR transmitter cable 3. IR local output2: Connect to a IR transmitter cable 4. +5V power input: Connect to the +5V power adaptor IR-EXT-050C-TX/RX Rear Panel 5.

  • Page 6: Ir Pass-Through

    IR Pass-through IR Extenders IR Blaster IR Receiver IR Sockets IR Blaster: Plug in the IR blaster here to emit all IR command signals received from the IR receiver to control the source devices. IR Receiver: Plug in the IR receiver here to receive all IR command signals from the IR remote controls of the source devices.
  • Page 7 Notice 1. The transmission length is largely affected by the type of Cat-5/5e/6 cables. The testing result shows solid UTP cables (usually in bulk cable 300m/1000ft form) can transmit a lot longer signals than stranded UTP cables (usually in patch cord form). Shielded STP cables are better suited than unshielded UTP cables. A solid UTP Cat-5e cable shows longer transmission range than stranded STP Cat-6 cable.
