- Page 1 Calisto 620-M Bluetooth wireless speakerphone + Bluetooth USB adapter User guide...
-
Page 2: Table Of Contents
Contents Welcome System requirements What's in the box Basics Speakerphone controls Charge your speakerphone Battery charging status Low battery warnings Pairing Initial pairing To re-pair your Bluetooth USB adapter Reconnect Connect PC and call Bluetooth USB Adapter LED Indicators Pair mobile phone and call Features Call features for your speakerphone and Bluetooth mobile phone Advanced features... -
Page 3: Welcome

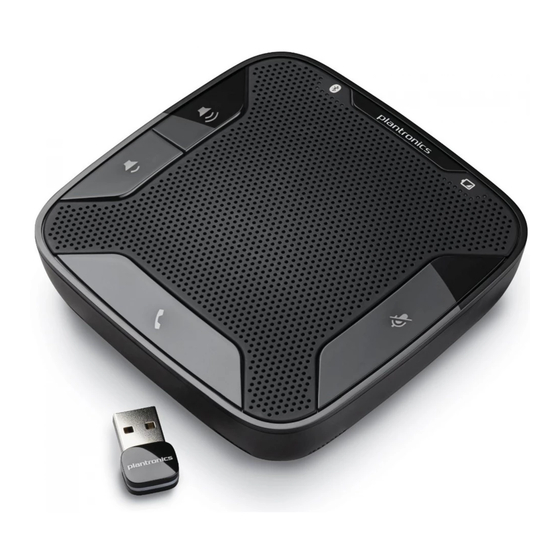

The Calisto 620-M is optimised for use with Microsoft Lync and Office Communicator 2007. This user guide contains instructions for setting up and using your Calisto 620-M speakerphone and BT300C Bluetooth USB adapter. (P620 wireless speakerphone and a BT300C Bluetooth USB adapter) Calisto 620-M highlights and features ®... -
Page 4: What's In The Box
What's in the box USB charging Bluetooth USB Carrying case cable adapter AC USB wall charger Wireless speakerphone... -
Page 5: Basics
Basics Bluetooth USB adapter LED indicator light Speakerphone Volume up and volume down buttons Mute/un-mute microphone button Bluetooth status LEDs Call button Battery status LEDs Mini USB adapter stowed on bottom of the speakerphone Back panel Off, on, Bluetooth pairing switch (3 position switch) Power connector, firmware update connector... -
Page 6: Speakerphone Controls
Speakerphone controls Volume Up/Volume Down Buttons Increase/decrease volume Press up/down volume buttons to desired volume Maximum or minimum volume Hold up/down buttons until max/min reached Ringer volume Press up/down volume buttons while no call is active Pairing LED Flashing Blue/Red In pairing mode;... -
Page 7: Charge Your Speakerphone
NOTE Use only the provided Calisto 620-M USB wall charger. Other Plantronics wall chargers will not work with the Calisto 620-M; however, the Calisto 620-M charger can be used to charge other Plantronics devices requiring a micro USB power supply. -
Page 8: Low Battery Warnings
Low battery warnings Battery Level Red LED Flashes PC Status* 2 to 6 hours of talk time remaining Less than 2 hours of talk time remaining Less than 30 minutes of talk time remaining (recharge) NOTE Plantronics Spokes software must be installed; status shown in icon tray. -
Page 9: Pairing
Your Bluetooth USB adapter comes pre-paired to your Speakerphone. NOTE The Bluetooth USB adapter is only for use with the Calisto 620-M and is not for use with other Bluetooth devices. The Calisto 620-M Bluetooth USB adapter is marked with a graphical identifier. -
Page 10: Connect Pc And Call
"Download Now". NOTE The Calisto 620-M works plug-and-play with Microsoft Lync/Office Communicator and requires no drivers or additional software; however, the optional Plantronics Spokes software does enable additional features. Please see the Plantronics Spokes software section of this user guide for more information. -
Page 11: Pair Mobile Phone And Call
Pair mobile phone and call Ensure your speakerphone is fully charged. Press and hold the power switch on the speakerphone to the RIGHT until the indicator light flashes blue and red. The speakerphone is now in pairing mode. NOTE If you don't see the blue and red flash, slide the power switch all the way LEFT to turn your speakerphone off. -
Page 12: Features
Medium (2 seconds) press of the call button Advanced features Listening to Audio via A2DP (Advanced Audio Distribution Profile for Bluetooth) Your Calisto 620-M speakerphone can play media files (music, podcasts, etc.) from any A2DP- enabled mobile device. Play/Pause You can pause/resume your music from the mobile phone by pressing the call button once. -
Page 13: Important Tips For Using Your Speakerphone
Important Tips for Using your Speakerphone For best results Calisto 620-M is a business-quality communication device with sensitive microphones; following the recommendations below will assure a good user experience for you and people at the other end of the call. -
Page 14: Plantronics Spokes Software
• Displays active Plantronics devices supported by Plantronics Spokes software. • Audio settings — provides a convenience shortcut to Windows audio configuration options. • Device settings — no device settings are available for Calisto 620-M in Plantronics Control Panel. Applications tab •... - Page 15 Calisto 620 wireless speakerphone Spoke software support: 2.7.14092.0 and above *Spokes embedded in vendor‐provided plug‐in; Spokes and IBM plug‐in available at Plantronics web site, Swyx plug‐in available from Swyx. Phone functions Description Incoming calls Answer/end incoming softphone calls from the speakerphone interface Mute unmute Mute/unmute speakerphone mic (no transmit audio) from softphone or speakerphone Volume control Adjust softphone (receive) volume up/down Call reject Reject an incoming call (press mute button for 3 seconds) Mobile/telephone presence Mobile call presence When on a mobile call via speakerphone, Spokes changes presence status on MSFT OC/Lync and Skype indicating you are On a call or Do not disturb, respectively. Multiple softphone status If on a call on any Spokes 2.7‐supported softphone, MSFT OC/Lync and Skype will indicate you are On a call or Do not disturb, respectively. Media player support Pause/mute/do nothing When an audio stream is active and the user is listening to a supported media player and a call is received, audio can be paused or muted in accordance with user preferences as setup in the PLT Control Panel (PCP) Play/unmute/do nothing When the call ends, audio can play (resume) or be unmuted in accordance with user’s PCP‐configured preferences. Device firmware upgrade Update manager support Direct Firmware Update (DFU) via Spokes software; Spokes update manager (Speakerphone) automatically sends update notifications when available My headset updater support DFU support for the Calisto 620 USB Bluetooth adapter via My headset updater; (USB Bluetooth adapter) follow the prompts at: ...
-
Page 16: Troubleshooting
LED isn't indicating that the unit is charging. My Calisto 620-M is not charging Make sure the provided Calisto 620-M USB wall charger (only) is via the AC wall charger. being used for charging; other Plantronics wall chargers will not work with Calisto 620-M, however, the Calisto 620-M charger can be used with other Plantronics products. - Page 17 Wi-Fi and/or other Bluetooth devices. Calisto 620-M, is this distortion or • If you use Calisto 620-M near a Wi-Fi access point or in a some sort of product defect? Bluetooth-intensive environment, some interference can be experienced in the form of audible artefacts through Calisto 620-M's speaker.
- Page 18 USB adapter (to cover a large area)? Can I use Calisto 620-M in my car? Theoretically yes, but Calisto 620-M is not designed to be used in a car. My Calisto 620-M carrying case is The Calisto 620-M carrying case is form-fitting to the too small to carry the wall charger speakerphone and is designed to protect the speakerphone only.
-
Page 19: Need More Help
NEED MORE HELP? www.plantronics.com/support Plantronics, Inc. Plantronics BV 345 Encinal Street South Point Building C Santa Cruz, CA 95060 Scorpius 140 United States 2132 LR Hoofddorp, Netherlands © 2013 Plantronics, Inc. All rights reserved. Plantronics and Calisto are trademarks or registered trademarks of Plantronics, Inc. The Bluetooth trademark is owned by Bluetooth SIG, Inc.
