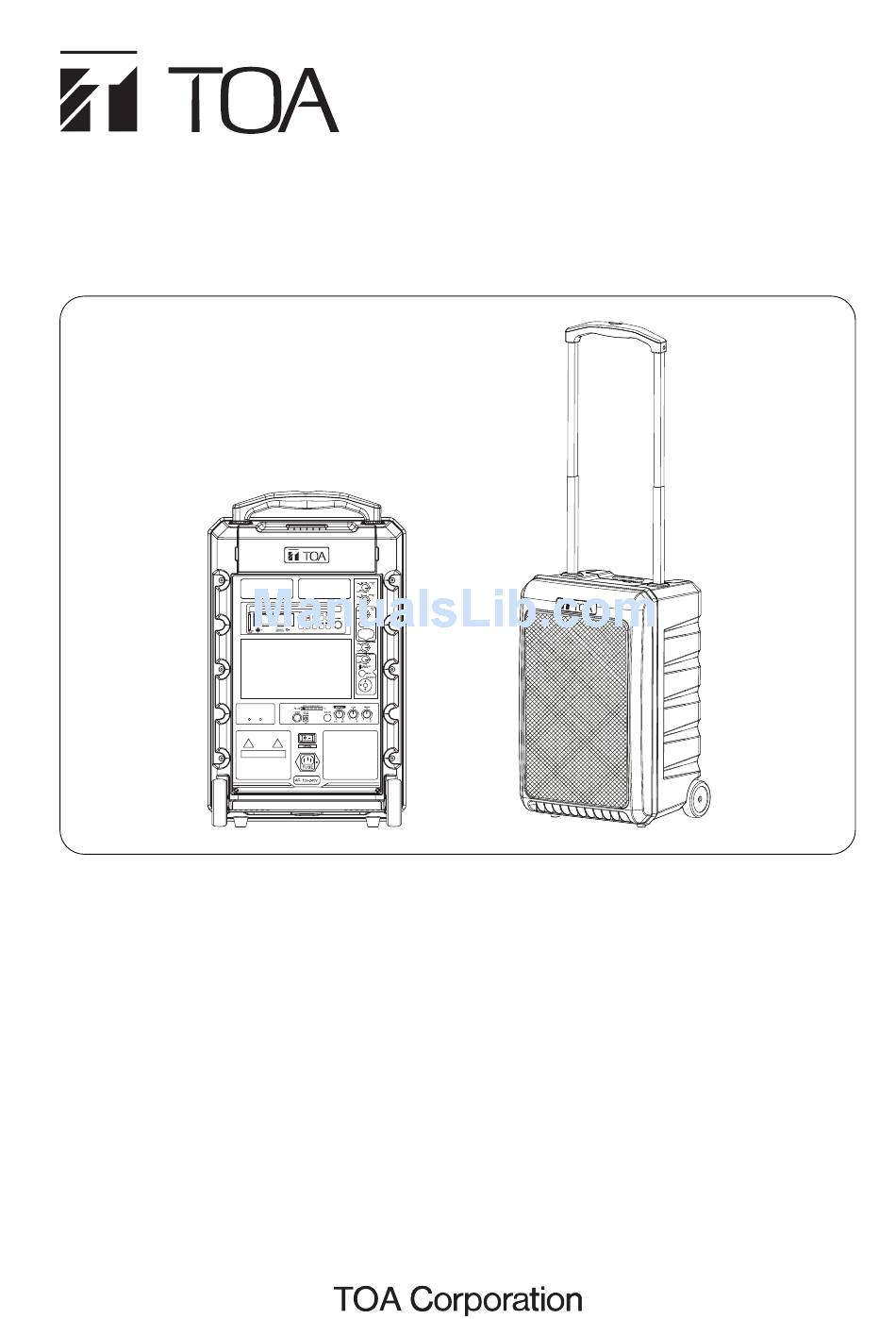

PORTABLE AMPLIFIER

TABLE OF CONTENTS

6. AUDIO MUSIC PLAYER ................................... 6
7. WIRELESS RECEIVER MODULE .................... 7
8.1.
Thank you for purchasing TOA's Portable Amplifier.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
.................................. 2
................................ 3
............. 4
............................ 5
...... 5
.... 8
.... 8
INSTRUCTION MANUAL
WA-Z100SD AS
........................................... 9
.............. 10
........ 11
.............. 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA-Z100SD AS and is the answer not in the manual?

Questions and answers

Related Manuals for Toa WA-Z100SD AS

Summary of Contents for Toa WA-Z100SD AS

  • Page 1: Table Of Contents

    7. WIRELESS RECEIVER MODULE ....7 8. TRANSMITTERS 8.1..8 WM-Z100H Wireless Handheld microphone 8.2. WM-Z100L ..8 Wireless Lavaliere microphone Thank you for purchasing TOA's Portable Amplifier. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Safety Precautions

    Should the following irregularity be found during use, immediately switch off the power,disconnect the power supply plug from the AC outlet and contact your nearest TOA dealer. Make no further attempt to operate the unit in this condition as this may cause fire or electric shock.

  • Page 3: General Description

    Do not use trolley on ragged ground to avoid any damage. 2. GENERAL DESCRIPTION TOA’s WA-Z100SD is a portable amplifier that has an elegant design, durable and water-resistant case. It offers reliable performance, clear, powerful sound, and is simple to operate. Equipped with an audio music player player, music can be played from CD, USB or SD / MMC Card.

  • Page 4: Nomenclature And Functions

    3. NOMENCLATURE AND FUNCTIONS 50cm(H) 32cm(W) 1. Carry Handle : To pull or retract the carry handle, press one touch button. 2. Rear Cover : Fixed related operational unit with audio accessories, such as CD player and batteries. 3. Front Cover : Speaker with fixed grill net. 4.

  • Page 5: Master Panel Control

    4. MASTER PANEL CONTROL 1. CD VOL : Volume control with on/off. 2. DAR/DMP VOL/Power switch : audio player’s volume control with on/off. (Not in use) 3. Line in VOL : Volume control for external audio input. 4. Phone jack/RCA Audio Line in : To amplify external audio inputs like CD, DVD.

  • Page 6: Audio Music Player

    6. AUDIO MUSIC PLAYER POWER FIND FUNC vol- vol+ 1. POWER : In power OFF mode, press this key to switch ON the power. In power ON mode, press this key for more than 2 sec. to switch OFF the power. 2.

  • Page 7: Wireless Receiver Module

    7. WIRELESS RECEIVER MODULE WTU-Z100 (Optional) UHF PLL Non-Diversity receiver module 1. RA Signal Indicator : The yellow LED RA lights up when wireless audio signal is being received and transmitted. 2. LED display : When selecting channels, the selected channel is shown on the display. 3.

  • Page 8: Transmitters

    8. TRANSMITTERS 8.1. WM-Z100H Wireless Handheld microphone (Optional) 1. Steel grille : Protect capsule from any damage. 2. Aluminium neck ring : logo printing and fixed top and capsule. 3. Battery compartment : 1.5V x 2 pcs or 1.2V x 2 pcs Remove the batteries when not in use for long period of time.

  • Page 9: Replacement Of Battery

    9. REPLACEMENT OF BATTERY 1. Please switch power off before changing batteries and modules. 2. Take out 6 pieces of screws and remove battery plates from main panel board and take batteries out. Install batteries 12V/5AH into battery compartment. 3. Make sure the battery pack is properly inserted then close the cover by tightening the screws. Connect red terminal into battery’s positive R1 red line terminal, black terminal into battery’s negative B2 black line terminal, and connect negative B1 and positive R2 together.

  • Page 10: Specifications

    (servicing) instruction in the literature accompanying the appliance. 11. SPECIFICATIONS 11.1. General Specifications Model WA-Z100SD AS Speaker 8 ohm / 1” tweeter, 4 ohm / 10” Woofer UHF PLL Non-Diversity receiver module (up to 2 pcs of optional receivers) Receiver module...

  • Page 11: Microphone Specifications

    11.2. Microphone Specifications Model WM-Z100H SE1AS Design type Handheld Microphone Carrier frequency range UHF 665-681 MHz Operating temperature -10 °C to + 50 °C Microphone capsule Dynamic Channel selectable Preset 16 Channels Frequency stability ±0.005% RF output power 10mW Max. 130mA ±10mA Currency consumption Frequency response...
  • Page 12 URL: http://www.toa.com.sg TOA Corporation 533-02-026-50...
