Summary of Contents for Samsung WD906U4SA Series
-

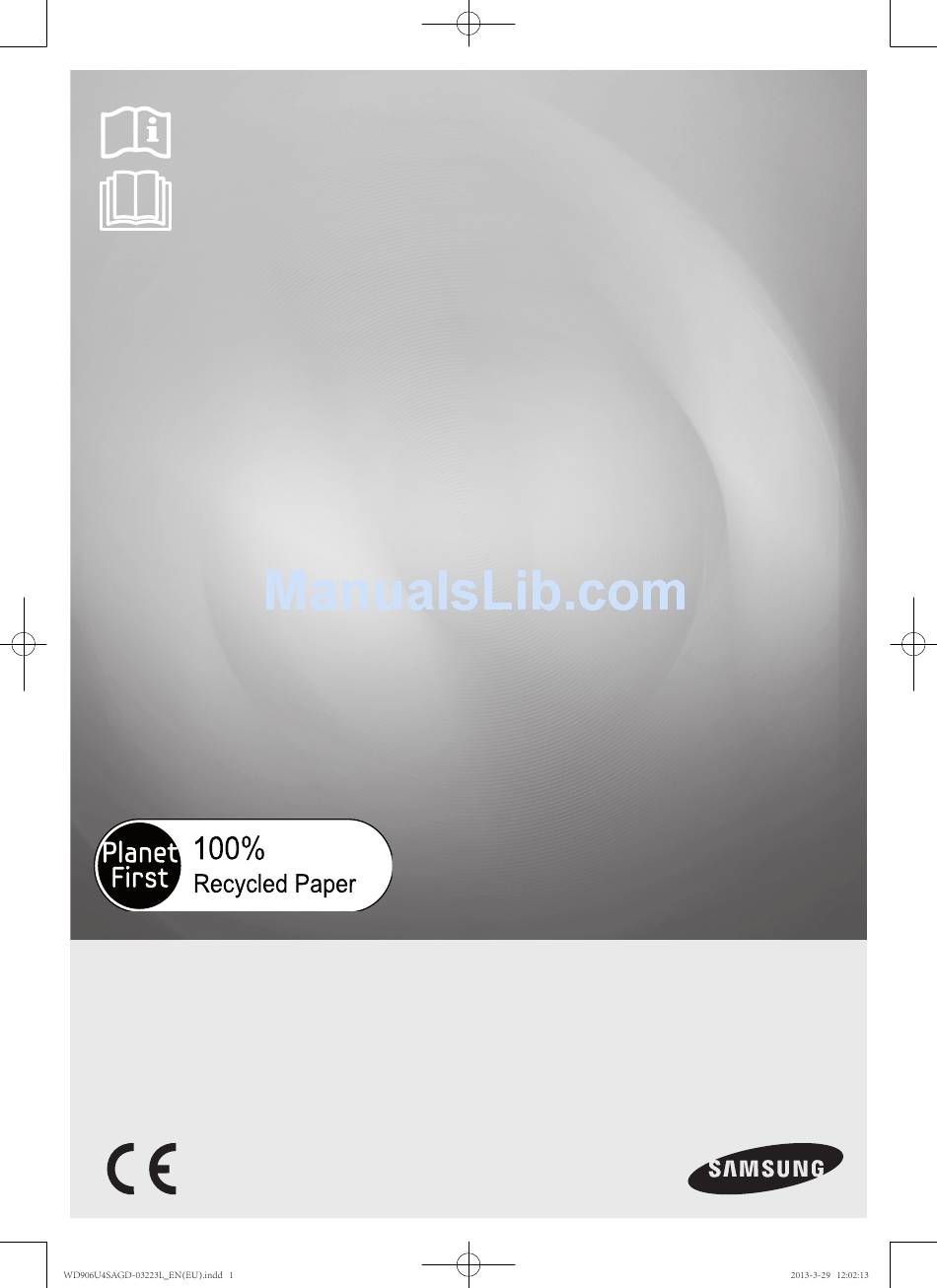

Page 1: User Manual
WD906U4SA** WD806U4SA** Washing Machine user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. To receive a more complete service, please register your product at www.samsung.com/register... - Page 2 Bubble allows detergent to distribute evenly and penetrate fabrics faster and deeper. • Less Noise & Vibration This Samsung washer performs very quietly minimizing noise and vibration with smart control technology, which enables it to maintain the lowest possible vibration. Thus, the drum keeps perfect balance.
- Page 3 This manual contains important information on the installation, use, and care of your new Samsung washing machine. Refer to it for descriptions of the control panel, instructions on how to use the washing machine, and tips for making the most of its state-of-the-art features and functions.
-
Page 4: Safety Information
The appliance is designed for home use only. Congratulations on your new Samsung washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many benefits and features. - Page 5 Do not let children (or pets) play on or in your washing machine. The washing machine door does not open easily from the inside, and children may be seriously injured if trapped inside. This appliance can be used by children aged from 8 WARNING years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way...
- Page 6 safety information sEVERE WARNING sIGNs foR INstALLAtIoN WARNING The installation of this appliance must be performed by a qualified technician or service company. - Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury. The appliance is heavy, take care upon lifting it Plug the power cord into an AC 220V / 50Hz wall socket or higher and use the socket for this appliance only. In addition, do not use an extension cord.
- Page 7 Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance. - This may result in electric shock or fire. Do not pull the power cord, when unplugging the power plug. - Unplug the power plug by holding the plug. - Failure to do so may result in electric shock or fire. Do not lay the power cord and tubes where you may fall over them.
- Page 8 safety information Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other flammable or explosive substances. - This may result in electric shock, fire or an explosion. Do not open the washer door by force while it is operating (high-temperature washing/ drying/spinning). - Water flowing out of the washer may result in burns or cause the floor to be slippery. This may result in injury. - Opening the door by force may result in damage to the product or injury. Do not insert your hand under the washer.
- Page 9 The product you have purchased is designed for domestic use only. The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse. safety information _9...
- Page 10 safety information Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, fire, problems with the product, or injury. Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in electric shock, fire or problems with the product. Do not place an object that generates a electromagnetic field near the washer.
- Page 11 Do not use natural hand-washing soap for the washer. - If it hardens and accumulates inside the washer, it may result in problems with the product, discolouration, rust or bad odors. Do not wash large laundry items such as bedding in the washing net. - Place socks and brassieres into the washing net and wash them with the other laundry. - Failure to do so may result in injury due to abnormal vibrations. Do not use hardened detergent. - If it accumulates inside the washer, it may result in water leakage.
-
Page 12: Table Of Contents
contents sETTING UP yOUR WAshING 13 C hecking the parts mAChINE Meeting installation requirements Electrical supply and grounding Water Supply Drain Flooring Surrounding temperature Alcove or closet installation 15 I nstalling your washing machine WAshING A lOAD Of lAUNDRy 21 W ashing for the first time Basic instructions Using the control panel Child lock... -
Page 13: Setting Up Your Washing
Be sure to have your installer follow these instructions closely so that your new washing machine works properly and so that you’re not at risk of injury when doing laundry. ChECkING thE pARts Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer. Work top Release lever Detergent drawer Control panel plug Door... -
Page 14: Meeting Installation Requirements
setting up your washing machine mEEtING INstALLAtIoN REQuIREmENts Electrical supply and grounding Never use an extension cord. Use only the power cord that comes with your washing machine. WARNING When preparing for installation, ensure that your power supply offers: • AC 220V / 50Hz fuse or circuit breaker • Individual branch circuit serving only your washing machine Your washing machine must be grounded. If your washing machine malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. -
Page 15: Drain
Drain Samsung recommends a standpipe height of 65cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory. -
Page 16: Removing The Shipping Bolts
setting up your washing machine sTEP 2 Removing the shipping bolts Before installing the washing machine, you must remove all shipping bolts from the back of the unit. 1. Loosen all the bolts with the supplied wrench. option 2. Hold the bolt with the spanner and pull it through the wide section of the hole. Repeat for each bolt. -
Page 17: Connecting The Water Supply Hose
sTEP 3 Adjusting the Levelling feet When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible. 1. Slide the washing machine into position. 2. Level your washing machine by turning the levelling feet in and out as necessary by hand. 3. When your washing machine is level, tighten the nuts using the wrench supplied with your washing machine. sTEP 4 Connecting the water and drain Connecting the water supply hose... - Page 18 setting up your washing machine Connecting the water supply hose 1. Remove the adaptor from the water supply hose. Adaptor Water supply hose 2. First, using a ‘+’ type screwdriver, loosen the four screws on the adaptor. Next, take the adaptor and turn part (2) following the arrow until there is a 5 mm gap. 5 mm 3. Connect the adaptor to the water tap by tightening the screws firmly while lifting the adaptor upwards.
- Page 19 6. Turn on the water supply and ensure that no water leaks from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps. Do not use your washing machine if there is a water leak. This may cause electric shock or injury. WARNING • If the water tap has a screw type tap, connect the water supply hose to the tap as shown. Use the most conventional type of tap for the water supply. In case the tap is square or too big, remove the spacing ring before inserting the tap into the adaptor. Connecting the Aqua Hose (Selected models) The Aqua Hose was invented for perfect leakage protection.
- Page 20 setting up your washing machine Connecting the drain hose The end of the drain hose can be positioned in three ways: 1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60 and 90 cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure the guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose from moving.
-
Page 21: Washing A Load Of Laundry
With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash first. WAshING foR thE fIRst tImE Before washing laundry for the first time, you must run a complete empty cycle (i.e. no laundry). 1. Press the Power button. 2. Add a little detergent to the detergent compartment the detergent drawer. -
Page 22: Using The Control Panel
washing a load of laundry usING thE CoNtRoL pANEL DIGITAl GRAPhIC Displays the remaining wash cycle time, all cycle information, and error DIsPlAy messages. Select the tumble pattern and spin speed for the cycle. For detailed information, refer to “Washing clothes using the cycle selector”. (see page 30) Cotton - For average or lightly soiled cottons, bed linen, table linen, underwear, towels, shirts, etc. synthetics - For averagely or lightly soiled blouses, shirts, etc., made of polyester (diolen, trevira), polyamide (perlon, nylon) or other similar blends. - Page 23 Baby Care - High temperature wash and extra rinses ensure that no washing powder remains to mark your thin clothes. super Eco Wash - Low temperature Eco Bubble ensures that you achieve perfect wash results while allowing effective energy saving. outdoor Care - Use for outdoor wear such as mountain clothes, skiwear, and sports wear. Fabrics include functional technology finishes and fibers such as spandex, stretch, and micro-fiber.
- Page 24 washing a load of laundry Eco Bubble selection is turned on as a default. Press the Eco Bubble option button once to deselect and the Bubble Generator OFF (shown on the panel), press it again to turn the function back ON. • Some wash cycles must have Eco Bubble option ON (will show on ECO bUbblE the panel, and the Generator will turn on automatically). sElECTION bUTTON • Other wash cycles do not need this option and automatically turn the Generator OFF.
-
Page 25: Child Lock
Child lock The Child Lock function allows you to lock the buttons so that the wash cycle you’ve chosen can’t be changed. Activating/Deactivating If you want to activate or deactivate the Child Lock function, press the Temp. and Rinse buttons at the same time for 3 seconds. “Child Lock ” will be lit when this feature is activated. When the Child Lock function is activated, only the Power button works. The Child Lock function remains on even after the power is turned on and off or after the disconnecting and reconnecting the power cord. -
Page 26: Drain Only Function
washing a load of laundry Drain only function When you want just drain water from washing machine, follow directions below. 1. Press the power button. 2. Turn the Cycle Selector to the Spin position. 3. Press the spin button repeatedly until “No spin( )” light comes on. 4. Press the start/pause button. my cycle Allows you to activate your custom wash (temperature, spin, soil level, etc.) with one button convenience. By pushing the my Cycle button, press the My Cycle button to load and use the saved My Cycle options. The chosen course and option lights will flicker. You can set all options as follows in the My Cycle mode. 1. Turn the water supply on. 2. -
Page 27: Eco Bubble
Eco Bubble Eco Bubble allows detergent to distribute evenly and penetrate fabrics faster and deeper. Course bubble function Canceling the bubble function Cotton, Synthetics, Daily Wash , Available 15’ Quick Wash Available Super Eco Wash, Outdoor Care, Not available Baby Care, Wool • A different bubble function may be applied depending the course. Eco Bubble selection is default. Press it once to deselect bubble option, press it again to select bubble option. -
Page 28: Air Wash
washing a load of laundry AIR Wash AIR Wash can refresh laundry without using water owing to its powerful airing system. Clothing that can be refreshed includes woolen coats, cotton jumpers, sweaters and suits. [Two items or less (less than 1 kg)] 1. Open the door, place the laundry into the washing machine and close the door. 2. Press the Power button. 3. -
Page 29: Using Dry Course
usING DRy CouRsE Refer to the label of drying capacity and be sure to put in the clothes to the lower level than the marked line for the dried clothes of 6.0kg (4.0kg)(Selected model). 1. Open the door, put in the clothes and close the door again. 2. Press the Power button and then press the Drying button. : The standard course will be selected automatically. Drying is not available for Eco Drum Clean, AIR Wash and Wool courses. 3. Select Drying button as follows. Drying Programs • Every press of this button will select drying type repeatedly in the following order: Cup Board... -
Page 30: Washing Clothes Using The Cycle Selector
Washing clothes using the cycle selector Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. 1. Turn on your sink’s water tap. 2. Press the Power button. 3. Open the door. 4. Load the articles one at a time loosely into the drum, without overfilling it. 5. Close the door. 6. Add detergent, softener, and pre-wash detergent (if necessary) into the appropriate compartments. Pre-wash is only available when selecting the Cotton, Synthetics, Daily Wash, Baby care, Super Eco Wash cycles. It is only necessary if your clothing is heavily soiled. 7. Use the Cycle selector to select the appropriate cycle according to the type of material: Cotton, Synthetics, Daily Wash, 15’ Quick Wash, Baby Care, Super Eco Wash, Outdoor Care,... -
Page 31: Washing Clothes Manually
Washing clothes manually You can wash clothes manually without using the Cycle Selector. 1. Turn the water supply on. 2. Press the Power button on the washing machine. 3. Open the door. 4. Load the articles loosely into the drum one at a time, without overfilling it. 5. Close the door. 6. Add detergent and, if necessary, softener or prewash detergent, into the appropriate compartments. 7. Press the Temp. button to select the temperature. ( : Cold Water, 20 ˚C, 30 ˚C, 40 ˚C, 60 ˚C, 95 ˚C) 8. -
Page 32: Etergent And Additives Information
washing a load of laundry Determining the load capacity Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing. fabric Type load Capacity model WD906 WD806 Cotton - average/lightly soiled 9.0 kg 8.0 kg - heavily soiled synthetics 3.5 kg 3.0 kg outdoor Care 2.0 kg 2.0 kg Wool 2.0 kg 2.0 kg • When the laundry is unbalanced (“UE” lights up on the display), redistribute the load. -
Page 33: Detergent Drawer
Detergent drawer Your washing machine has separate compartments for dispensing detergent and fabric softener. Add all laundry additives to the correct compartment before starting your washing machine. Do not open the detergent drawer while your washing machine is running or you might be exposed to hot water or steam. 1. Pull out the detergent drawer on the left side of the control panel. 2. -
Page 34: Cleaning And Maintaining Your
cleaning and maintaining your washing machine Keeping your washing machine clean improves its performance, wards off unnecessary repairs, and lengthens its life. ECo DRum CLEAN This course is a self-cleaning course that removes mold that may occur inside the washing machine. 1. Press the Power button. 2. -
Page 35: Raining The Washing Machine In An Emergency
the ECo Drum Clean Auto Alarm function • If the “ECO Drum Clean” indicator on the display and the lamp on the Cycle Selector are lit after a wash, it indicates that tub (drum) cleaning is required. In this case, remove the laundry from the washing machine, turn the power on, and clean the drum by performing the ECO Drum Clean course. • If you do not perform the ECO Drum Clean course, the “ECO Drum Clean” indicator on the display and the lamp on the Cycle Selector are turned off. However, the “ECO Drum Clean” indicator on the display and the lamp on the Cycle Selector are turned on again after two washes are performed. However, this will not result in a problem with the washing machine. -
Page 36: Leaning The Debris Filter
cleaning and maintaining your washing machine CLEANING thE DEBRIs fILtER We recommend cleaning the debris filter 5 or 6 times a year, or when the error message of “5E” is displayed. (Refer to “Draining the washing machine in an emergency” in the previous section.) If foreign substances accumulate debris filter, the performance of the bubble function will be degraded. Before cleaning the debris filter, make sure to unplug the power cord. CAutIoN 1. Remove the remaining water first (refer to “Draining the washing machine in an emergency” on page 35.) If you separate the filter without draining the remaining water, the remaining water may trickle out. 2. Open the filter cover by using a key or coin. 3. -
Page 37: C Leaning The Detergent Drawer And Drawer
CLEANING thE DEtERGENt DRAWER AND DRAWER RECEss 1. Press the release lever on the inside of the Release lever detergent drawer and pull the drawer out. liquid detergent box (option) 2. Remove the softener divider and the liquid detergent box(option) from the detergent drawer. softener divider 3. Wash all parts under running water. 4. Clean the drawer recess with an old toothbrush. 5. Replace the softener divider and the liquid detergent box (option) by pushing it firmly into the drawer. 6. Push the drawer back into place. 7. To remove any remaining detergent, perform a rinse cycle without any laundry in the drum. -
Page 38: Epairing A Frozen Washing Machine
cleaning and maintaining your washing machine REpAIRING A fRoZEN WAshING mAChINE If the temperature drops below freezing and your washing machine is frozen: 1. Unplug the washing machine. 2. Pour warm water over the tap to loosen the water supply hose. 3. Remove the water supply hose and soak it in warm water. 4. Pour warm water into the washing machine drum and let it sit for 10 minutes. 5. Reconnect the water supply hose to the water tap and check if the water supply and drain are operating normal. stoRING youR WAshING mAChINE If you need to store your washing machine for an extended time, it’s better to drain and disconnect it. Washing machines can be damaged if water is left in the hoses and internal components before storage. 1. Select the Cotton cycle and add bleach to the bleach compartment. Then, push the Quick Wash button and run your washing machine through the cycle without a load. -
Page 39: Troubleshooting And
• Make sure the laundry load is balanced. • Straighten the drain hose. Eliminate kinked hoses. the washing machine does • Make sure the debris filter is not clogged. not drain and/or spin • The door will not open until 3 minutes after the machine stops or the Door is locked shut or will not open. power turns off. If the problem persists, contact your local Samsung Customer Service. troubleshooting and information codes _39... -
Page 40: Nformation Codes
• If the voltage of the supplied power is instable, the washing machine will be paused to protect its electric devices. • If the correct voltage is supplied, the cycle will resume automatically. For any codes not listed above, or if the suggested solution doesn’t fix the problem, call your Samsung Service Centre or local Samsung dealer. 40_ troubleshooting and information codes... -
Page 41: Cycle Chart
cycle chart CyCLE ChARt user option) Max load(kg) DETERGENT spin speed(mAx) rpm max Temp PROGRAm (˚C) WD906 WD806 Pre-wash wash softener WD906U4 WD806U4 Cotton 1400 1400 3.5 1200 1200 synthetics Daily Wash 4.0 1400 1400 15’ Quick Wash 2.0 ... -
Page 42: Appendix
appendix fABRIC CARE ChARt The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing (and dry cleaning when necessary). The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundery problems. Resistant material Can be ironed at 100 ˚C max Delicate fabric... -
Page 43: Specifications
TyPE fRONT lOADING WAshING mAChINE WD906U4SA** WD806U4SA** DImENsIoNs W600mm X D650mm X H850mm W600mm X D600mm X H850mm WAtER pREssuRE 50 kPa ~ 800 kPa 50 kPa ~ 800 kPa WAtER VoLumE ℓ ℓ WD906U4SA** WD806U4SA** NEt WEIGht 69 kg 70 kg WAsh AND spIN CApACIty 9.0 kg [DRY LAUNDRY] 8.0 kg [DRY LAUNDRY] DRy CApACIty 6.0 kg 5.0 kg MODEL WD906U4SA** WD806U4SA** 220 V 100 W 220 V 100 W WASHING 240 V 100 W 240 V 100 W... - Page 44 PERGUNTAS OU COMENTÁRIOS? País lIGUE OU VIsITE O sITE 0330 SAMSUNG (7267864) www.samsung.com Code No. DC68-03223L_EN...
