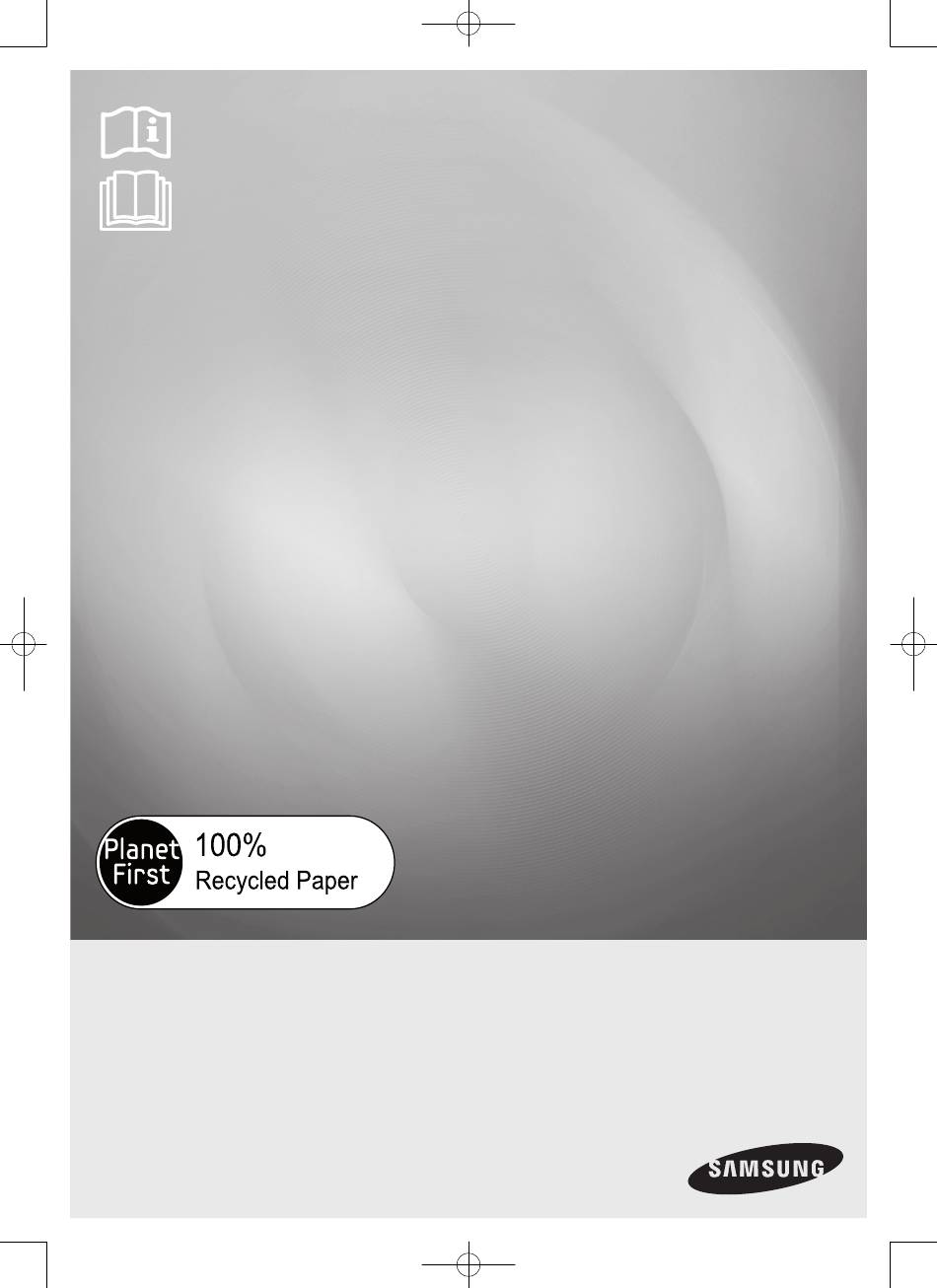

- Page 1 WD106U4SA** WD906U4SA** WD806U4SA** Washing Machine user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. WD106U4SAGD-03223T-02_EN.indd 1 2015/5/26 10:21:47...
-
Page 2: Table Of Contents
Repairing a frozen washing machine Storing your washing machine TroublEshooTing and Check these points if your washing machine... informaTion codEs Information codes cyclE charT Cycle chart appEndix Fabric care chart Protecting the environment Specifications English - 2 WD106U4SAGD-03223T-02_EN.indd 2 2015/5/26 10:21:48... -
Page 3: Safety Information
The appliance is designed for home use only. Congratulations on your new Samsung washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many benefits and features. - Page 4 For appliances with ventilation openings in the base, that a carpet must not obstruct the openings. The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. English - 4 WD106U4SAGD-03223T-02_EN.indd 4 2015/5/26 10:21:49...
- Page 5 The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged. Remove all objects from pockets such as lighters and matches. English - 5 WD106U4SAGD-03223T-02_EN.indd 5 2015/5/26 10:21:49...
- Page 6 Europe: Children of less than 3 years should be kept away unless continuously supervised. English - 6 WD106U4SAGD-03223T-02_EN.indd 6 2015/5/26 10:21:49...
- Page 7 Do not use a damaged power plug, damaged power cord or loose wall socket. - This may result in electric shock or fire. Do not pull or excessively bend the power cord. Do not twist or tie the power cord. English - 7 WD106U4SAGD-03223T-02_EN.indd 7 2015/5/26 10:21:49...
- Page 8 - If trapped inside, the child may become trapped and suffocate to death. Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washer before using it. English - 8 WD106U4SAGD-03223T-02_EN.indd 8 2015/5/26 10:21:49...
- Page 9 Unplug the power plug when the appliance is not being used for long periods of time or during a thunder/lightning storm. - Failure to do so may result in electric shock or fire. English - 9 WD106U4SAGD-03223T-02_EN.indd 9 2015/5/26 10:21:49...
- Page 10 The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.
- Page 11 - This may result in spontaneous combustion or ignition due to the heat of the oxidation of the oil. Do not use hot water from water cooling/heating devices. - This may result in problems with the washer. English - 11 WD106U4SAGD-03223T-02_EN.indd 11 2015/5/26 10:21:49...
- Page 12 - This may result in discolouration, deformation, damage, electric shock or fire. Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failure to do so may result in electric shock or fire. English - 12 WD106U4SAGD-03223T-02_EN.indd 12 2015/5/26 10:21:49...
-
Page 13: Setting Up Your Washing Machine
Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer. Work top... -
Page 14: Meeting Installation Requirements
You can reduce the risk of leaks and water damage by: • Making water taps easily accessible. • Turning off taps when the washing machine is not in use. • Periodically checking for leaks at water inlet hose fittings. Before using your washing machine for the first time, check all connections at the water valve and taps for leaks. WArninG English - 14 WD106U4SAGD-03223T-02_EN.indd 14 2015/5/26 10:21:50... -
Page 15: Flooring
Drain Samsung recommends a standpipe height of 65cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory. - Page 16 WArninG Insert the cap fixer, (one of the accessories in the vinyl pack), into the hole from which you removed the power cord at the back of the product. English - 16 WD106U4SAGD-03223T-02_EN.indd 16 2015/5/26 10:21:51...
-
Page 17: Step 3 Adjusting The Levelling Feet
2. Connect the other end of the hot water supply hose to your sink’s hot water tap and tighten it by hand. 3. Use a Y-piece if you only want to use cold water. English - 17 WD106U4SAGD-03223T-02_EN.indd 17 2015/5/26 10:21:51... - Page 18 5. Connect the other end of the water supply hose to the inlet water valve at the rear of the washing machine. Screw the option hose clockwise all the way in. English - 18 WD106U4SAGD-03223T-02_EN.indd 18 2015/5/26 10:21:52...
- Page 19 It is attached to the water supply hose and automatically cuts off the water flow if the hose is damaged. It also displays a warning indicator. • Connect the water supply hose to the tap as shown. English - 19 WD106U4SAGD-03223T-02_EN.indd 19 2015/5/26 10:21:53...
-
Page 20: Connecting The Drain Hose
6 calibration mode Samsung washing machine detects the laundry weight automatically. For more accurate weight detection, please run Calibration Mode after the installation. Calibration mode is done by following the steps below. 1. Remove laundry or any contents in the machine and turn off the machine. -
Page 21: Washing A Load Of Laundry
With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash first. WAShinG for the firSt time Before washing laundry for the first time, you must run a complete empty cycle (i.e. no laundry). -
Page 22: Using The Control Panel
• Deodorization - Reduces bad smells from the laundry • Sanitization - Deodorize and sanitize the laundry by stronger AIR Wash action with higher temp. Drying - Select to dry laundry automatically by detecting the amount and weight of the laundry. English - 22 WD106U4SAGD-03223T-02_EN.indd 22 2015/5/26 10:21:54... -
Page 23: Temperature Selection Button
• The Cup Board, Low Temp, Iron and Time Dry options detect the weight of the laundry in order to display an accurate drying time and dry them more completely. • The drying conditions may differ depending on the type and the amount of laundry. • Drying is not available for Eco Drum Clean, AIR Wash and Wool courses. English - 23 WD106U4SAGD-03223T-02_EN.indd 23 2015/5/26 10:21:55... -
Page 24: Power Button
Press it once to turn your washing machine on, press it again to turn your washing machine off. powEr buTTon If the washing machine is left on for more than 10 minutes without any buttons being touched, the power automatically turns off. English - 24 WD106U4SAGD-03223T-02_EN.indd 24 2015/5/26 10:21:55... -
Page 25: Child Lock
” indicator will be lit, and the clock will begin counting down until it reaches the set time. 4. To cancel a Delay End function, press the power button and then turn the washing machine on again. English - 25 WD106U4SAGD-03223T-02_EN.indd 25 2015/5/26 10:22:01... -
Page 26: Drain Only Function
If you press My Cycle and release it within 3 seconds, the previously saved course and options appear. If you press and hold My Cycle for 3 second or longer, the currently set course and options are saved and the LED blinks for 3 seconds. English - 26 WD106U4SAGD-03223T-02_EN.indd 26 2015/5/26 10:22:02... -
Page 27: Eco Bubble
• The amount of the laundry is automatically detected and the laundry is washed. • Once a washing machine operation begins, you cannot add or select the bubble function. • Enough bubbles are generated with the specified amount of detergent. • Please clean the Debris filter frequently. Periodic cleaning helps generate sufficient bubbles. • Depending on the detergent and the laundry, the bubbles may be absorbed and seem like a small quantity. • Although bubbles are generated once the wash begins, it may take several minutes for users to see them. English - 27 WD106U4SAGD-03223T-02_EN.indd 27 2015/5/26 10:22:02... -
Page 28: Air Wash
• Sensitive clothes made of leather, mink, fur, silk, etc. • Underwear trimmed with lace, ‘glued’ doll cushions, and dress suits may have their decorations loosened. • Clothes trimmed with buttons can cause them to break. • Starchy clothes can become deformed. • Hard bedding such as a wooden pillows (neck-rest) - Pillows or blankets filled with plastic or starch rather than cotton - Electric blankets • Furry blankets • Bulky blankets • Latex pillow English - 28 WD106U4SAGD-03223T-02_EN.indd 28 2015/5/26 10:22:02... -
Page 29: Using Dry Course
4. Put suitable amount of detergent and fiber softener in the detergent tray and close it again. 5. Press start/pause button. : It automatically performs an optimal function from washing to drying. • The selected course can’t be altered after the start of drying. • If cold water is not supplied, drying will not be performed. • In case you wish to dry after hand washing, select both Spin and Dry at the same time. English - 29 WD106U4SAGD-03223T-02_EN.indd 29 2015/5/26 10:22:02... -
Page 30: Washing Clothes Using The Cycle Selector
Washing clothes using the cycle selector Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. -
Page 31: Washing Clothes Manually
Your new washing machine, combined with modern detergents, will give perfect washing results, thus saving energy, time, water and detergent. However, if your cotton is particularly dirty, prewash with a protein-based detergent. English - 31 WD106U4SAGD-03223T-02_EN.indd 31 2015/5/26 10:22:02... -
Page 32: Detergent And Additives Information
It may cause your washing machine to not rinse properly or result in the overflow becoming blocked. please note the following when using the Wool course. • Use a neutral liquid detergent for wool only. • When using a powder detergent, it may remain on the laundry and cause damage to the material (wool). English - 32 WD106U4SAGD-03223T-02_EN.indd 32 2015/5/26 10:22:02... -
Page 33: Detergent Drawer
• DO NOT fill above the MAX line. • When using powdered detergent, remove the liquid liquid detergent box from the detergent drawer. Powdered detergent box detergent will not dispense with liquid detergent box. • After a wash, some liquid may remain in the detergent drawer. English - 33 WD106U4SAGD-03223T-02_EN.indd 33 2015/5/26 10:22:03... -
Page 34: Cleaning And Maintaining Your Washing Machine
• Powder-type cleansing agent: Use a [powder-type bleaching agent] or a [cleansing agent for drum cleaning only]. • Liquid-type cleansing agent: Use a [liquid-type oxygen bleaching agent] or a [cleansing agent for drum cleaning only]. English - 34 WD106U4SAGD-03223T-02_EN.indd 34 2015/5/26 10:22:04... -
Page 35: Draining The Washing Machine In An Emergency
5. Allow all the water to flow into a bowl. Remain water maybe more than you expected. Prepare larger bowl. 6. Reinsert the emergency drain cap and the drain tube. 7. Replace the filter-cover. emergency drain cap English - 35 WD106U4SAGD-03223T-02_EN.indd 35 2015/5/26 10:22:06... -
Page 36: Cleaning The Debris Filter
1. Wipe the washing machine surfaces, including the control panel, with a soft cloth using a nonabrasive household detergent. 2. Use a soft cloth to dry the surfaces. 3. Do not pour water onto the washing machine. English - 36 WD106U4SAGD-03223T-02_EN.indd 36 2015/5/26 10:22:07... -
Page 37: Cleaning The Detergent Drawer And Drawer Recess
Also clean inside and outside the threaded connector. 4. Push the filter back into place. 5. Screw the hose back onto the washing machine. 6. Make sure the connections are watertight and turn on the tap. English - 37 WD106U4SAGD-03223T-02_EN.indd 37 2015/5/26 10:22:08... -
Page 38: Repairing A Frozen Washing Machine
If your washing machine has been stored in below-freezing temperatures, allow time for any leftover water in your washing machine to thaw out before using it. English - 38 WD106U4SAGD-03223T-02_EN.indd 38 2015/5/26 10:22:08... -
Page 39: Troubleshooting And Information Codes
• The door will not open until 3 minutes after the machine stops or the Door is locked shut or will not open. power turns off. If the problem persists, contact your local Samsung Customer Service. English - 39 WD106U4SAGD-03223T-02_EN.indd 39 2015/5/26 10:22:08... - Page 40 • If the correct voltage is supplied, the cycle will resume automatically. For any codes not listed above, or if the suggested solution doesn’t fix the problem, call your Samsung Service Centre or local Samsung dealer.
-
Page 41: Cycle Chart
3. Course time in individual homes may differ from the values given in the table due to variations in the pressure and temperature of the water supply, the load and the type of laundry. 4. When the Intensive Wash function is selected, the cycle time is increased for each cycle. English - 41 WD106U4SAGD-03223T-02_EN.indd 41 2015/5/26 10:22:08... -
Page 42: Fabric Care Chart
• Use stain removal products and bleaches before the wash cycle only when strictly necessary. • Save water and electricity by only washing full loads (the exact amount depends upon the program used). English - 42 WD106U4SAGD-03223T-02_EN.indd 42 2015/5/26 10:22:10... -
Page 43: Specifications
WD106U4SA** SPIN 230 V 400 W PUMPING 34 W MODEL WD106U4SA** Spin reVolUtionS 1400 The appearance and specifications of the product are subject to change without prior notice for purposes of product enhancement. English - 43 WD106U4SAGD-03223T-02_EN.indd 43 2015/5/26 10:22:11... - Page 44 WD906U4SA** SPIN 230 V 400 W PUMPING 34 W MODEL WD906U4SA** Spin reVolUtionS 1400 The appearance and specifications of the product are subject to change without prior notice for purposes of product enhancement. English - 44 WD106U4SAGD-03223T-02_EN.indd 44 2015/5/26 10:22:11...
- Page 45 WD806U4SA** SPIN 230 V 400 W PUMPING 34 W MODEL WD806U4SA** Spin reVolUtionS 1400 The appearance and specifications of the product are subject to change without prior notice for purposes of product enhancement. English - 45 WD106U4SAGD-03223T-02_EN.indd 45 2015/5/26 10:22:11...
- Page 46 WD106U4SAGD-03223T-02_EN.indd 46 2015/5/26 10:22:11...
- Page 47 WD106U4SAGD-03223T-02_EN.indd 47 2015/5/26 10:22:11...
- Page 48 QUESTIONS OR COMMENTS? country call or VisiT us onlinE aT 1800-88-9999 MALAYSIA www.samsung.com/my/support 603-77137477 (Overseas contact) NIGERIA 0800-726-7864 www.samsung.com/africa_en/support Code No. DC68-03223T-02_EN WD106U4SAGD-03223T-02_EN.indd 48 2015/5/26 10:22:11...
