andrews PAC15 Operating Instructions & Safety Manual

PAC15
Portable Air Conditioning

Operating Instructions

& Safety Guide
Click www.andrews-sykes.com
or Call Us Free 0800 211 611
General Safety
Keep children and animals away from air conditioning units. Never
leave them alone in a room where the units in use.
This equipment should only be used by a competent person who
has read and understood these instructions.
Never operate this equipment if you are ill, feeling tired or under the
influence of alcohol or drugs.
Keep the Air Conditioning vents clear of all obstructions.
Never put anything on top of the unit or block the air outlets.
Make sure equipment is switched off and unplugged after use.
Never leave switched on or unattended.
Do not use the unit where sunlight is shining directly onto it.
Check condition of equipment before use. If unit is showing signs
of damage contact your supplier immediately.
Electrical Safety
This unit requires a 230 volt electrical supply. It plugs into a standard bs1363
domestic socket.
Always inspect plugs and leads for damage before plugging into the supply -
DO NOT UsE IF ANY DAMAGE Is FOUND
Ensure cables are run as not to cause a hazard.
If an extension lead is used, ensure it is of the correct standard , and fully
uncoiled when being used.
Do not lay electrical cables in wet / damp areas.
Do not move equipment whilst operating.
Do not pull equipment by its cable.
It is recommended that electrical equipment is used via a suitable RCD.
Machine not working?
ONLY A COMPETENT ELECTRICIAN sHOULD ATTEMPT TO RECTIFY
ELECTRICAL sUPPLY PRObLEMs. DO NOT REMOVE ANY PANELs FROM
THE MACHINE.
Fig. 4
Problem Likely Cause Solution
No air flow from the Red 'MAINs' light off Turn on electricity and/or check mains
room unit supply fuse
No air flow from the Red 'MAINs' light on. Machine is in defrost mode, do not
room unit White 'DEFROsT' adjust anything, machine will revert to
light on normal run after 10 mins
Insufficient air flow blocked air filter Clean filter
from the room unit
No cooling Green 'COOLING' Revolve thermostat knob fully anti-
light off clockwise to '1'. Wait 10 minutes for
time delay on start-up.
No cooling Amber 'ATTENTION' Press '+' button to re-set and check for:
light illuminated. High
Lack of water flow...kinked hoses?
pressure trip.
shortage of water..... top up.
External heat exchanger unit mounted in
very high temperature?
Water frozen? Add glycol (33%)
External heat exchanger coil blocked
with dirt.... clean
Air cooled units.... lack of air flow from
exhaust.... kinked or blocked duct, duct
too long.
No cooling Amber 'ATTENTION' Press '-' button to re-set and check for:
light illuminated. Low
No air flow, blocked filter?
pressure trip.
Evaporator blocked with ice. Very low air
temperature?
No cooling Amber 'ATTENTION' Condensate pump not reducing water
light illuminated. High level. Kink in condensate tube between
level condensate trip. room unit and external heat exchanger?
Leak inside room unit. Pump filter inside
room unit blocked. Condensate tube frozen
Routine Maintenance
The air filter must be kept clean, never allow to become choked with dust or dirt.
If allowed to do so, the performance of the unit will become impaired, resulting in
loss of air flow, freezing up the evaporator coil and possible component damage.

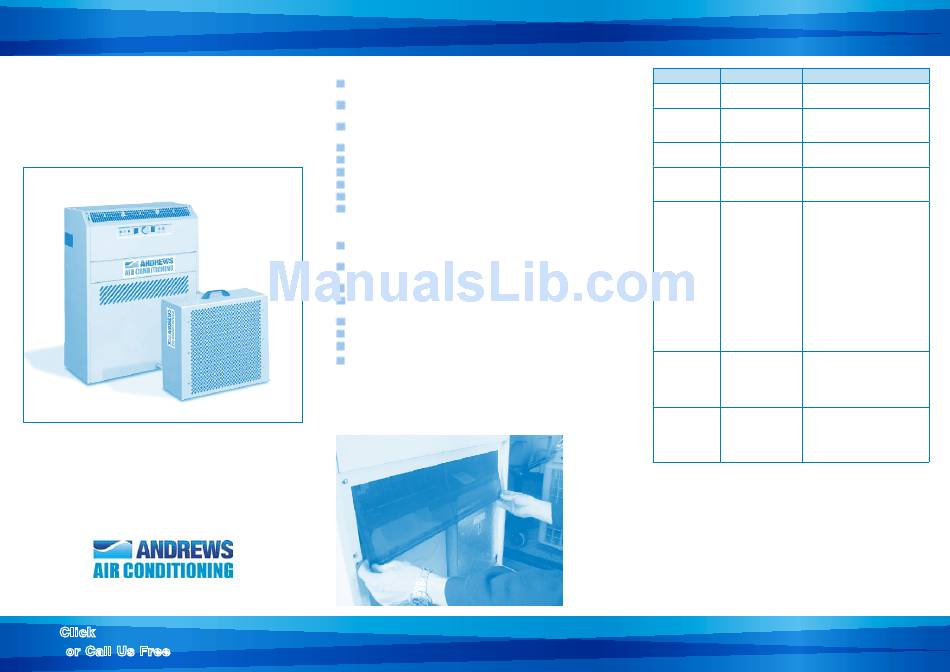

To access the filter, lift out the return air grille on the front face of the unit (fig. 4). On
refitting the filter ensure that it is correctly positioned covering the whole face of the grille.
The filter (see fig. 4) can be washed in warm, soapy water, rinsed and shaken dry
before replacement. Frequency of cleaning depends upon application and can
