AVC Technology VDT7008 User Manual

Combo 8-channe dvr with 10.2 inch lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

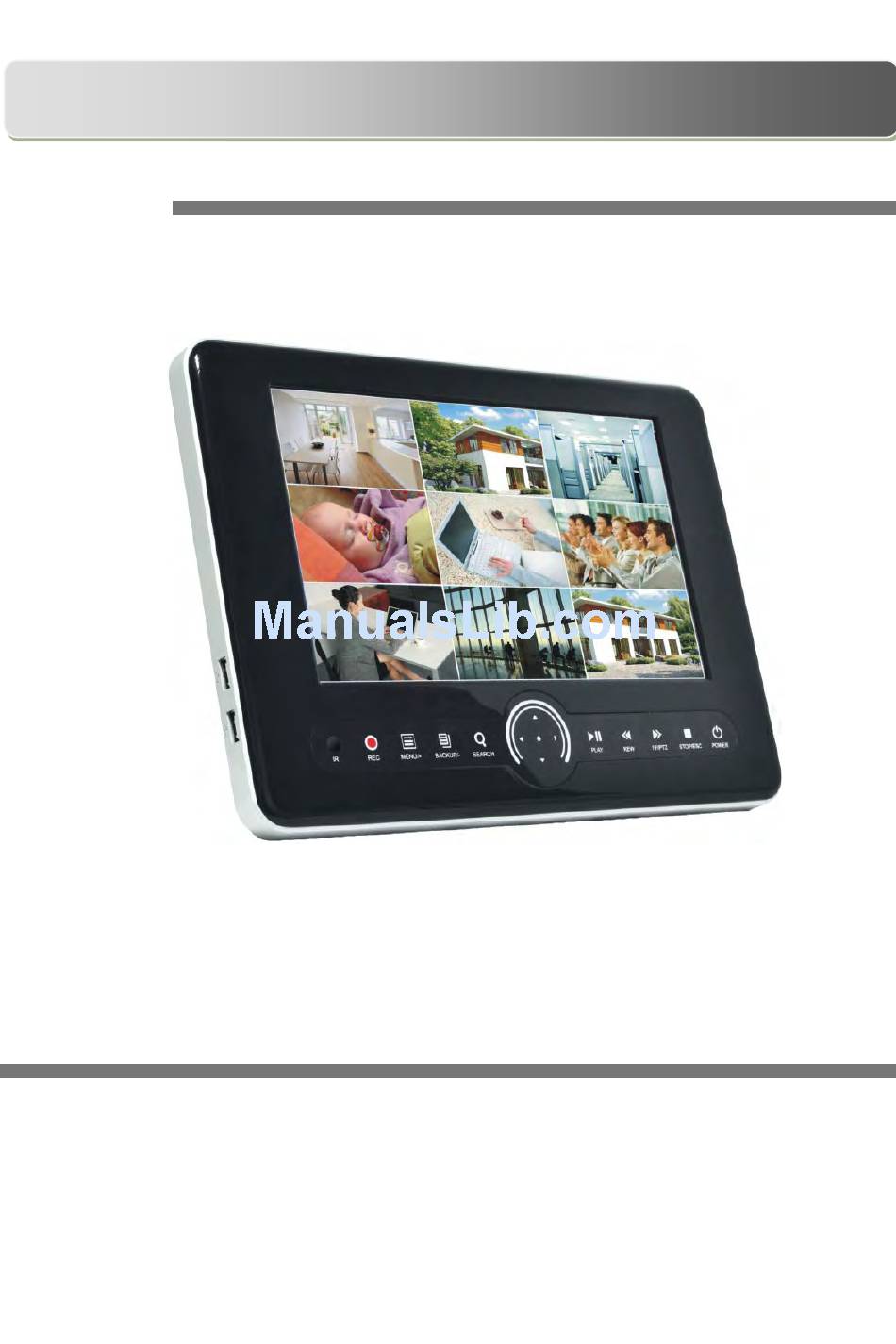

VDT7008 Combo DVR with 10.2 Inch LCD
8-Channel Digital Video Recorder

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDT7008 and is the answer not in the manual?

Questions and answers

Related Manuals for AVC Technology VDT7008

Summary of Contents for AVC Technology VDT7008

  • Page 1: User Manual

    VDT7008 Combo DVR with 10.2 Inch LCD 8-Channel Digital Video Recorder USER MANUAL...
  • Page 2 SAFETY INSTRUCTIONS User Manual Electrical Safety All installation and operation should conform to your local electrical safety codes. We assume no liability or responsibility for any fires or electrical shock caused by improper handling or installation. Transportation Security Avoid heavy stress, violent vibrations or contact with water during transportation, storage and installation of this system.
  • Page 3 WARRANTY INFORMATION User Manual Thank You for Choosing our Product! All of our products are backed by a conditional service warranty covering all hardware for 12 months from the date of purchase. Additionally, our products also come with a free exchange policy that covers all manufacturing defects for one month from the date of purchase.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS ser Manual TABLE OF CONTENTS ................5 1. INTRODUCTION 1.1 DVR Introduction ..................... 5 1.2 Main Features ....................5 ............... 7 2. GETTING STARTED 2.1 Installing Hard Drive ..................7 2.2 Front Panel Instructions .................. 7 2.3 Side Panel Instructions ................... 8 2.4 Rear Panel Instructions ...................
  • Page 5 TABLE OF CONTENTS ser Manual ....................28 4.4.1 Schedule ....................29 4.4.2 Motion ....................30 4.4.3 Sensor .................. 30 4.5 Alarm Configuration ....................30 4.5.1 Sensor ....................33 4.5.2 Motion ..................... 35 4.5.3 Video Loss ................... 36 4.5.4 Other Alarm ....................
  • Page 6 TABLE OF CONTENTS ser Manual .................. 65 7.4.1 Remote Playback ..................68 7.4.2 Remote Backup 7.5 Remote System Configuration ..............69 .............. 70 8. MOBILE SURVEILLANCE 8.1 Phones with Windows Mobile ............... 70 8.2 Phones with Symbian ................... 72 8.3 For iPhone / iPad Mobile Clients ..............74 8.4 The installation &...

  • Page 7: Introduction

    INTRODUCTION User Manual 1. INTRODUCTION 1.1 DVR Introduction This combo DVR uses high performance video processing chips and an embedded Linux system. It utilizes many advanced technologies, such as standard H.264 with low bit rate, triple stream and so on. This DVR system supports mouse controlled navigation and can also be accessed through IE browser with full remote control, mobile viewing by cell phones, etc.
  • Page 8 INTRODUCTION User Manual Supports deleting and locking the recorded files one by one Supports remote playback in Network Client through LAN or internet ALARM 1 channel alarm output and 4 channel alarm input available Supports scheduling for motion detection and sensor alarm Supports pre-recording and post recording Supports linked channels recording once motion or alarm is triggered on designated channel...

  • Page 9: Getting Started

    GETTING STARTED User Manual 2. GETTING STARTED Check the unit and the accessories immediately after opening your system. Please disconnect the power before connecting to other devices. 2.1 Installing Hard Drive This device supports one SATA hard drive up to 2TB. Calculate HDD capacity according to the recording settings.

  • Page 10: Side Panel Instructions

    GETTING STARTED User Manual Number Name Description Receive signal of remote controller RECORD Record Manually Increase the value in setup/Enter menu in live MENU/+ view Decrease the value in setup/Enter backup BACKUP/- mode in live view SEARCH Enter into search mode 1.Change direction to select items DIRECTION/ 2.

  • Page 11: Rear Panel Instructions

    GETTING STARTED User Manual 2.4 Rear Panel Instructions An illustration of the rear Panel interface is shown as Fig 2-5: Fig 2-5 Rear Panel power switch...

  • Page 12: Remote Control

    GETTING STARTED User Manual Speaker 2.5 Remote Control The remote control uses two AAA size batteries. Instructions for operation are as follows: Step 1: Open the cover of the Remote Control Step 2: Place batteries making sure the poles are correct (+ and -) Step 3: Replace the battery cover...
  • Page 13 GETTING STARTED User Manual If the remote does not work check the following: 1. Check the pole position of the batteries 2. Check the remaining charge in the batteries 3. Check to make sure the sensor on the DVR is clear 4.

  • Page 14: Control With Mouse

    GETTING STARTED User Manual Dwell To enter auto dwell mode Backup To enter backup mode To control PTZ camera: Move camera/ZOOM/FOCUS/IRIS/SPEED control Operation processes with remote controller to control multi-DVR The device ID of the DVR is 0. When use of remote controller to control single DVR, it’s not necessarily to reset the device ID, user can do operation directly;...
  • Page 15 GETTING STARTED User Manual Double-click left button on one camera to be full screen display. Double-click again to return to the previous screen display. Click right button to show the control bar at the bottom of the screen as Fig 4-1 main menu toolbar Click right mouse again to hide the control bar.

  • Page 16: Basic Function

    BASIC FUNCTION User Manual 3. BASIC FUNCTION 3.1 Power On/Off Before you power on the unit, please make sure all the connections are good. 3.1.1 Power On Step 1: Connect the power supply; switch on the power button near the power port on the rear panel Step 2: Press the power button on the front panel to start the LCD screen.

  • Page 17: Login

    BASIC FUNCTION User Manual Step 1: Enter into Menu, then select “System Shut Down” icon, the Shut down window will appear Step 2: Click OK, the unit will power off after firmware is shut down. Step 3: Disconnect the power. 3.2 Login User can login and logout of the DVR system.

  • Page 18: Live Playback

    BASIC FUNCTION User Manual The explanation of symbols in the live preview interface: Symbol Meaning Symbol Meaning Green Manual record Alarm recording Motion detection Yellow Blue Schedule record recording 3.4 Live Playback Click the Play button to playback the record. Refer to Figure3-3. User can operate by clicking the buttons on the screen.

  • Page 19: Main Menu Setup Guide

    MAIN MENU SETUP GUIDE User Manual 4. MAIN MENU SETUP GUIDE Click right mouse or press ESC button on the front panel, the control bar will display on the bottom of the screen, refer to Fig 4-1: Fig 4-1 Main Menu Toolbar Click the icon beside the screen display mode to display a channel select dialog.

  • Page 20: Basic Configuration

    MAIN MENU SETUP GUIDE User Manual User can click button and drag it anywhere with the left mouse Click the Menu button, the interface will pop-up as shown in Fig 4-2; press MENU button on the front panel or remote control will also display the main interface. Fig 4-2 Main Menu 4.1 Basic Configuration Basic configuration includes three sub menus: system, date&...

  • Page 21: Time & Date

    MAIN MENU SETUP GUIDE User Manual Step2: In this interface user can setup the device name, device ID, video format, max network users, video output, language and screensaver. The explanations for each display are shown below: Device name: the name of the device. It will display on the client end or CMS and help user to recognize the device remotely.

  • Page 22: Dst

    MAIN MENU SETUP GUIDE User Manual Fig 4-4 Basic Configuration-Time & Date Step 3: Click “default” button to restore default settings; click “apply” button to save the settings; click “exit” button to exit current interface. 4.1.3 DST Step1: Enter into system configurationbasic configurationDST; refer to Fig 4-5: Fig 4-5 Basic Configuration-DST Step 2: In this interface, you can enable daylight saving time, time offset, mode, start &...

  • Page 23: Live

    MAIN MENU SETUP GUIDE User Manual 4.2.1 Live In this interface, user can setup camera names, adjust colors: brightness, hue, saturation and contrast. Step 1: Enter into system configurationlive configurationlive; refer to Fig 4-6: Fig 4-6 Live ConfigurationLive Step 2: Checkmark camera name; click “setting” button, a window will pop-up shown as Fig 4-7: Fig 4-7 Live-Color Adjustment Step 3: In this interface, user can adjust brightness, hue, saturation and contrast in...

  • Page 24: Main Monitor

    MAIN MENU SETUP GUIDE User Manual Recording Status: After clicking to put a checkmark in this function, a little square icon will show on live preview interface when recording. Step 5: Click “default” button to restore default settings; click “apply” button to save the settings;...

  • Page 25: Mask

    MAIN MENU SETUP GUIDE User Manual Fig 4-9 Live Configuration-Spot Step 2: Select split mode: 1×1 and channel Step 3: Dwell time: the time interval for a certain picture display before switching to the next picture display. Step 4: Select the split mode, then setup current picture group. Click button to setup the previous channel groups of pictures, click button to set the latter...

  • Page 26: Record Configuration

    MAIN MENU SETUP GUIDE User Manual Setup Mask Area: click Setting button, enter into live image and press left mouse button and drag mouse to set mask area, refer to picture below. Click Apply button to save the setting. Delete Mask Area: select a certain mask area, click left mouse button to delete that mask area, click Apply button to save the setting.

  • Page 27: Record Stream

    MAIN MENU SETUP GUIDE User Manual Step 2: Checkmark record, audio and record time Step 3: User can setup all channels with same parameters, checkmark “all”, then do relevant setup. Step 4: Click “default” button to restore default setting; click “apply” button to save the setting;...

  • Page 28: Time

    MAIN MENU SETUP GUIDE User Manual Parameter Definition Range from: 1-30（NTSC）1-25(PAL) Resolution Supports CIF, HD1 and D1 Quality The quality of recorded images. The higher the value, the clearer the recorded image is. Six options: lowest, lower, low, medium, higher and highest. 4.3.3 Time Step 1: Enter into system configurationrecord configuration...

  • Page 29: Stamp

    MAIN MENU SETUP GUIDE User Manual 4.3.4 Stamp Stamp：User can display the channel name and time stamp on video. Step 1: Enter into system configuration record configuration stamp; refer to Fig 4-14: Fig 4-14 Record Configuration-Stamp Step 2: Checkmark camera name, time stamp; click Set button, user can use cursor to drag the camera name and time stamp to random positions as shown below: Before Drag After Drag...

  • Page 30: Snap

    MAIN MENU SETUP GUIDE User Manual Step 2: Checkmark recycle record, the recycle record function will be enabled, it will overwrite the earlier recorded files and keep recoding when HDD is full; if not enables the DVR will stop recording when HDD is full. Step 3: Click “default”...

  • Page 31: Motion

    MAIN MENU SETUP GUIDE User Manual Fig 4-16 Schedule-Week Schedule ① Click “add” button to add a certain day schedule; click “delete” button to delete the selected schedule; Copy: user can copy the specify schedule to other dates. Click “OK” button to save the setting, click “Exit” button to exit current interface.

  • Page 32: Sensor

    MAIN MENU SETUP GUIDE User Manual 4.4.3 Sensor Step 1: Enter into system configurationschedule configurationalarm; refer to Fig 4-18: Step 2: The setup steps of alarm are similar to schedule; user can refer to 4.4.1 Schedule for details. Note: the default schedule of motion detection is all of the time, that is, the color of schedule interface is all blue.
  • Page 33 MAIN MENU SETUP GUIDE User Manual Step 3: User can setup all channels with same parameters, checkmark “all”, then to do relevant setup. Fig 4-19 Alarm Configuration-Sensor Basic Step 4: Click “default” button to restore default setting; click “apply” button to save the setting;...
  • Page 34 MAIN MENU SETUP GUIDE User Manual Fig 4-21 Alarm Handling-Trigger Step 3: Checkmark Buzzer, there will be triggered buzzer alarm out; Full screen alarm: when triggered alarm, there will pop up an alarm full screen; Email: click to put a checkmark in this function, when an alarm trigged, a notification email will be sent to user’s designed email box including trigger events, time, snap pictures, device name, ID camera name etc.

  • Page 35: Motion

    MAIN MENU SETUP GUIDE User Manual Step 1: Enter into system configurationalarm configurationsensorschedule; refer to Fig 4-22: Step 2: The setup steps of sensor schedule are similar to schedule; user can refer to 4.4.1 Schedule for details. Note: the default schedule of motion detection is all of the time, that is, the color of schedule interface is all blue.
  • Page 36 MAIN MENU SETUP GUIDE User Manual otherwise, it will be considered the start of a new motion file. Click Trigger button, a dialog box will pop-up: Step 3: The setup steps of motion trigger are similar to alarm handling; user can refer to Chapter 4.5.1 Sensor alarm handling for more details.

  • Page 37: Video Loss

    MAIN MENU SETUP GUIDE User Manual Step 1: Enter into system configurationalarm configurationschedule; refer to Fig 4-25: Fig 4-25 Alarm Configuration-Schedule Step 2: The setup steps of alarm schedule are similar to schedule; user can refer to 4.4.1 Schedule for details. 4.5.3 Video Loss Step 1: Enter into system configurationalarm configurationvideo loss;...

  • Page 38: Other Alarm

    MAIN MENU SETUP GUIDE User Manual 4.5.4 Other Alarm This tab gives a choice to configure alarm for Disk Full, IP Conflict, the Disconnect event, Disk Attenuation Warning or Disk Lost. Fig 4-27 Other Alarm Step1: enter into system configurationother alarm; refer to Fig 4-27: Step 2: Use the dropdown menu and select the event or the alarm.

  • Page 39: Network Configuration

    MAIN MENU SETUP GUIDE User Manual Step 2: In this interface, set relay alarm out name, select hold time which means the interval time between the two consecutive alarms. Step 3: User can setup all channels with same parameters, checkmark “all”, then to do relevant setup.

  • Page 40: Sub Stream

    MAIN MENU SETUP GUIDE User Manual Fig 4-29 Network Configuration-Network Step2: Tick off "Obtain IP address automatically", the device will distribute IP address, subnet mask, gateway IP and DDNS service; Step3: enable PPPOE, user can directly connect the DVR to internet via ADSL, then input the user name and password;...

  • Page 41: Email

    MAIN MENU SETUP GUIDE User Manual Step1: enter into system configurationnetwork configurationsub stream; refer to Fig 4-30: Fig 4-30 network configuration-sub stream Parameter Meaning Range from: 1-25 Resolution Support CIF The higher the value is, the clearer the record image. Six Quality options: lowest, lower, low, medium, higher and highest.

  • Page 42: Server

    MAIN MENU SETUP GUIDE User Manual Send address/password: sender’s email address/password Receive address: receiver’s email address. Here user can enter at least three mail addresses. Click TEST button to test the validity of the mailbox. Attaching image amount: user can attach up to three images at one time. Snap Time Interval(s): User can select snap time interval.

  • Page 43: Other Settings

    MAIN MENU SETUP GUIDE User Manual 4.6.5 Other settings Step1: If you enable DDNS server: you need to input user name, password and host domain name of the registered website, click TEST to test the effectiveness of relevant information. Fig 4-33 network configuration-other settings Step 2: click “default”...
  • Page 44 MAIN MENU SETUP GUIDE User Manual If “Show icons for networked UPnP devices” can’t display in the “Network Tasks” list box, please follow the below operation:  Click “Tools”-- “Folder options”  Select the “Show common tasks in folders” in the “Tasks” check box to display the UPnP icon.
  • Page 45 MAIN MENU SETUP GUIDE User Manual  DVR Setting Domain name According to the domain name registration of “DDNS”，the domain name for DVR is “www. abc.dyndns.tv” Username and password According to the above registration, username is “bcd”. According to the above registration, password is “123456” Application Connect DVR to the Network Client.

  • Page 46: User Management Configuration

    MAIN MENU SETUP GUIDE User Manual http://192.168.0.25, user needs to input that address: http://192.168.0.25:82 into IE browser. 4.7 User Management Configuration Step 1: Enter into system configurationuser management configuration; refer to Fig 4-34: Fig 4-34 User Management Configuration Step2: Click Add button, a dialog box will pop-up shown as Fig 4-35: Fig 4-35 Add-General ...

  • Page 47: Configuration

    MAIN MENU SETUP GUIDE User Manual Fig 4-36 Add User-Authority Step 2: In the authority interface, assign the definite operation right for that user. Step 3: In the user management interface, click Setup button to modify user name, user type and binding PC MAC address if used. Step 4: Select the user that you want to delete in the user list box, then click Delete button to delete this user.
  • Page 48 MAIN MENU SETUP GUIDE User Manual Fig 4-37 P.T.Z Configuration-Serial Port Parameter Meaning Address The address of the PTZ device Baud Rate Baud rate of the PTZ device. Range form: 110, 300, 600, 1200, 2400, 4800, 9600, 19200, 34800, 57600, 115200, 230400, 460800, 21600.
  • Page 49 MAIN MENU SETUP GUIDE User Manual Step 2: In the Advance interface, click preset “Setting” button, a dialog box will pop-up shown as Fig 4-39: Fig 4-39 Advance-Preset Setting In the preset set interface, click Setting button, a dialog will pop-up shown as Fig 4-40: Fig 4-40 Preset Set-Setting User can control the dome rotating up, up left, down, right down, left , left...
  • Page 50 MAIN MENU SETUP GUIDE User Manual Fig 4-41 Cruise Set Click Add button to add cruise line in the list box (max 8 cruise lines can be added); select a cruise line, click Setup button, a dialog box will pop-up shown as Fig 4-42: Fig 4-42 Cruise Set-Modify Cruise Line Click Add icon to set the speed and time of preset point;...

  • Page 51: Reset

    MAIN MENU SETUP GUIDE User Manual Fig 4-43 Track Setting User can control the dome rotating up, up left, down, right down, left, left down, right and up right and stop rotating; adjust the rotate speed and the value of zoom, focus and iris of the dome; click Start Record button to record the moving track of PTZ, click this button again to stop recording;...

  • Page 52: Search, Playback & Backup

    DVR MANAGEMENT ser Manual 5. SEARCH, PLAYBACK & BACKUP Search configuration includes four submenus: time search, event search, image search and file management. 5.1 Time Search Step 1: Enter into Search configurationtime search; refer to Fig 5-1: Fig 5-1 Search Configuration Time Search Step 2: Select channel, screen display mode, the highlighted dates on the calendar means the days have recorded data.

  • Page 53: Event Search

    DVR MANAGEMENT ser Manual Playback Buttons  The method of record backup during a certain period in the playback interface: Select the start time by dragging the slider and click icon. Then select the end time and click this icon again to confirm the record period. Next, click icon to backup the record during this period.

  • Page 54: Image

    DVR MANAGEMENT ser Manual Fig 5-3 Search Configuration-File Management ① Lock: check a file, click Lock button to lock this file, after that, that file will not be deleted or covered (unless you format the hard drive). ② Unlock: check a locked file, click Lock button to unlock this file ③...

  • Page 55: Backup

    DVR MANAGEMENT ser Manual 5.5 Backup This unit supports backup to USB Flash, USB hard drive and USB DVD burner through the USB port on the front panel. You can also backup via IE browser over the Internet. Refer to 7.6.2 Remote Backup. Step 1: Enter into backup configuration;...

  • Page 56: Dvr Management

    DVR MANAGEMENT ser Manual 6. DVR MANAGEMENT 6.1 Checking System Information Check system information includes five submenus: system, event, log, network and online users. System Information In this interface, user can check the hardware version, MCU version, kernel version, device ID, etc. Event Information In this interface, user can check recorded events according to selected date;...

  • Page 57: Disk Management

    DVR MANAGEMENT ser Manual 6.3 Disk Management Format the disk Step1: enter into disk management interface Note: please format the hard disk before record. If not being formatted, it will show the status of the disk-free space, and total space show OM at the bottom of screen.

  • Page 58: Remote Surveillance

    REMOTE SURVEILLANCE ser Manual 7. REMOTE SURVEILLANCE 7.1 IE Remote Surveillance In order to view the DVR from a network it must be connected to a LAN/WAN or internet. The network setup should be done accordingly. Please refer to 4.6 Network Setup.
  • Page 59 REMOTE SURVEILLANCE ser Manual Step 3: If users want to utilize dynamic domain name, please apply for a domain name in a DNS server supported by the DVR or router. Then add to the DVR or router. This unit supports www.dns2p.com，www.meibu.com，www.dyndns.com，and www.no-ip.com.

  • Page 60: Remote Surveillance Through Apple Pc

    REMOTE SURVEILLANCE ser Manual 7.2 Remote Surveillance through Apple PC Note: Because the current plug-in version of client end just only supports 32-bit mode, so the safari browser shall start 32-bit mode. If the browser is the earlier MACOS version, the default setting is 32-bit mode and the setting can be skipped.
  • Page 61 REMOTE SURVEILLANCE ser Manual pop up. Please select “System Preferences””Internet &Wireless”click “Network” Step 2: Enter into Network interface and then click “Ethernet Connected” to check the internet connection of Apple PC. Step 3: After acquiring the IP address, Subnet Mask and so on, please enter into the DVR’s Main MenuSetupNetwork interface to manually input IP address, Subnet Mask and Gateway according to the configuration of PC.

  • Page 62: On Wan

    REMOTE SURVEILLANCE ser Manual Step 5: Click icon and then select the Active X control, the welcome interface will be shown. Click “Continue””Install” button，the following window will pop up： Input the name and password of Apple PC and then click “OK” to install this Active X control.

  • Page 63: The Remote Live Preview Interface

    REMOTE SURVEILLANCE ser Manual Step 2: Enter WAN IP and http port in the Safari browser to install the Active control. The concrete steps are the same as step 5 and 6 of Chapter 7.2.1. Connect the DVR to internet directly. Step 1: The network setups are the same as step one of point 2 on WAN of IE remote surveillance.
  • Page 64 REMOTE SURVEILLANCE ser Manual Symbol and Function Definitions: Channel Screen display mode Volume indicator Snapping Start manual record Start IE record picture Bidirectional Playback Color talk PTZ control Master/sub stream status Note: click button to record manually and the recorded file will be saved on your PC hard drive.
  • Page 65 REMOTE SURVEILLANCE ser Manual BUTTON DESCRIPTION Drag the scroll bar to adjust the brightness of channel Drag the scroll bar to adjust the contrast of channel Drag the scroll bar to adjust the saturation of channel Drag the scroll bar to adjust the hue of channel Click this button to recover the default value of brightness, contrast, saturation and hue.
  • Page 66 REMOTE SURVEILLANCE ser Manual 'Focus' button. Click button near 'Focus' button to focus further away. Click button near 'Focus' button to focus closer. Go to the Preset Select and do auto cruise Track Auto scan Wiper button Light button Right click the mouse on the live interface to generate a pull-down menu as shown below: Fig 7-4 Right Key Sub Menu Stream: this DVR supports master stream and sub stream.

  • Page 67: Remote Playback And Backup

    REMOTE SURVEILLANCE ser Manual Zoom in: Single channel large screen amplification Left click the channel you need to amplify; Click the right mouse, select Zoom in button and then click the left mouse to amplify the image. Press left mouse to drag the cursor, user can view the image.
  • Page 68 REMOTE SURVEILLANCE ser Manual Step 3: User can set the data playing time and display mode in area  as required Fig 7-6 Time Search Interface Step 4: Select an item from the data information list box, click “play” button to playback Step 5: Click the relevant buttons in the interface;...
  • Page 69 REMOTE SURVEILLANCE ser Manual By Event Search: Step 1: Enter into Searchevent search; refer to Fig 7-8: Fig 7-8 Event Search Interface Step 2: Click the highlight date and select record channels and then checkmark the event type: motion and sensor, click “search” button Step 3: The events will be display in the event list box, double-click an item to playback File Management...

  • Page 70: Remote Backup

    REMOTE SURVEILLANCE ser Manual Fig 7-9 File Management Interface 7.4.2 Remote Backup Click Backup button to enter into backup interface, refer to Fig 7-10: Fig 7-10 Remote Backup Interface Step 1: Select channels, set the start and end time, then click “search’ button, the file information will be displayed in the file list box Step 2: Select backup files, click “browse”...

  • Page 71: Remote System Configuration

    REMOTE SURVEILLANCE ser Manual 7.5 Remote System Configuration User can remotely setup the parameters of the device. Functions of remote configuration include: basic configuration, live configuration, record configuration, schedule configuration, alarm configuration, network configuration, PTZ configuration and user configuration. User should first select an item in the menu list on the left, and then setup the relative parameters.

  • Page 72: Mobile Surveillance

    MOBILE SURVEILLANCE User Manual 8. MOBILE SURVEILLANCE This DVR supports mobile surveillance by Iphone, iPad, Andriod, Blackberry or smart phones with Windows Mobile Pro and symbian OS on 3G networks. We tested on Window Mobile Pro 6.1 and 6.5. To access the DVR from a mobile phone you first need to setup the network configuration on the DVR, refer to Chapter 4.6 Network configuration.
  • Page 73 MOBILE SURVEILLANCE User Manual Step 3：Click “Yes” to start downloading and installing: Step 4：PCam will open automatically once the install process is complete. Step 5：Input the DVR’s address, ID and password respectively in the columns of “Server”, “User” and “Password”, and click “Go” to log on the DVR. It will show the picture if accessed successfully.

  • Page 74: Phones With Symbian

    MOBILE SURVEILLANCE User Manual Notice: User name and password here are the same as that used on the DVR. The default is admin and 123456. 8.2 Phones with Symbian Please use the smart phones with Symbian versions supported by this unit. Step 1：First enable the network access on the mobile phone.
  • Page 75 MOBILE SURVEILLANCE User Manual Live view: to do mobile live view Image view: to check the pictures snapped in live view System setting: Login setting and Alarm setting. Help: function indication and help Step 7：Click System setting--->Login Setting to enter login interface.

  • Page 76: For Iphone / Ipad Mobile Clients

    MOBILE SURVEILLANCE User Manual 8.3 For iPhone / iPad Mobile Clients 1. Installing through iphone/iPad Step 1. Open App Store function of iphone Step 2. Select “search” function to search for “SuperLive” Step 3: Click SuperLive, enter into “introduce” interface and then click “FREE”, it will change into “INSTALL”...
  • Page 77 MOBILE SURVEILLANCE User Manual Step 4: Input iTunes Store password and then click “OK”, the software will be installed automatically. Note: If this is the first time you are accessing the Store you need to enter user ID; if you do not have a Store account, you need to create one. Installing through PC.
  • Page 78 MOBILE SURVEILLANCE User Manual Step 3: Select “search” function to search for “SuperCam” Step 4: Click “free application” button Step 5: Input apple ID and password, then click “acquire” Step 6: Checkmark “synchronously apply program” and “SuperLive”, and then click “apply” button...
  • Page 79 MOBILE SURVEILLANCE User Manual Operation Instructions for iphone/iPad Login interface Enter server’s IP address (or domain name), user name and password Click “Remember server” to save the setting; clicking button can quickly input saved server address, user name and password. Main Interface NOTE: If you click on the Help icon you will bring up a help...
  • Page 80 MOBILE SURVEILLANCE User Manual Playback playback recorded files Image image view Server List log record device list Live Settings live view software settings Information Help device information software help center view Logoff logoff and return to login interface Live View Interface Symbol Current viewing channel Symbol...
  • Page 81 MOBILE SURVEILLANCE User Manual Switch to the single image Switch to four images Move the PTZ Up Rotate the PTZ Down Move the PTZ to the Left Move the PTZ to the Right Stop rotating the PTZ Zoom In/Focus In/Iris Add Zoom Out/Focus Out/Iris Sub Preset Select the preset point...
  • Page 82 MOBILE SURVEILLANCE User Manual Configuration interface Main parameters mobile phone video configuration: Record file clip size: Single video size. When the video size is greater than setup value, change to another video file size setting. Reserved disk space: Reserved SD Card disk space, when the available disk space is less than setup value, the video will be stopped Display mode: User can select one live picture...

  • Page 83: The Installation & Operation Methods For Android Mobile Clients

    MOBILE SURVEILLANCE User Manual 8.4 The installation & operation methods for Android mobile clients Software Installation Step 1: run Google Market program Step 2: search for ”SuperCam” Step 3: press “Install” button Step 4: click “OK” button Step 5: user can view the download and install process in notifications; finished download, the software will install automatically.
  • Page 84 MOBILE SURVEILLANCE User Manual Login Enter into server’s IP address (or domain name), user’s ID and password. Click “Remember server” to save the setting; Click button can quick input saved server address, user name and password. Main menu NOTE: If you click on the Help icon you will bring up a help menu with a list of the functions of the different buttons and how to use them.
  • Page 85 MOBILE SURVEILLANCE User Manual Live view Fig 1 Fig 2 Symbol Current viewing channel Symbol Channel status PTZ, click to switch to Fig Switch channels 2 interface Snap record talk Live audio Full screen Return Move PTZ up Move PTZ down Move PTZ left Move PTZ right Stop rotates the PTZ...
  • Page 86 MOBILE SURVEILLANCE User Manual Record playback Fig 3 Fig 4 Click the record file (Fig 3) to playback (Fig 4) Play/pause stop Return to record file Full screen interface (Fig 3) Server list Add a server to list Modify a server on list Delete a server from list Return to main menu Configuration interface...
  • Page 87 MOBILE SURVEILLANCE User Manual Alarm setting Select Sound Alarm, when Video Loss/Sensor/Motion occurs it will trigger sound alarm; Select Vibrate Alarm, when Video Loss/Sensor/Motion occurs it will trigger vibrate alarm Storage setting User can setup the relevant parameters of mobile video. This function only works with an inserted SD card.

  • Page 88: Installation And Operation Methods For Blackberry Mobile Phone Client

    MOBILE SURVEILLANCE User Manual 8.5 Installation and operation Methods for BlackBerry Mobile phone Client Open the browser of BlackBerry phone and enter public IP address of router to access DVR Click “SuperCam” to connect to software Click “Download” button on the popup interface and the download progress will be shown.
  • Page 89 MOBILE SURVEILLANCE User Manual Enter into Menu->Option->Cache Operations, clear up browser cache. If the SuperCam software is used in mobile phone with touch screen, there will be a compatibility problem. Solution: Enter into Options Menu -> Advance options -> Applications-> SuperCam and click “Disable Compatibility”...
  • Page 90 MOBILE SURVEILLANCE User Manual Image image view Record log Server List device list software device Settings Live live view Information settings information view Software Help Logoff logoff and return to login interface help center 3. Live view Mark 1 Current viewing channel Mark 2 Channel status PTZ, click to switch to Fig 2...
  • Page 91 MOBILE SURVEILLANCE User Manual [Add] Add a server (DVR access IP or domain name) [Modify] Modify a server (DVR access IP or domain name) [Delete] Delete a server (DVR access IP or domain name) Software configuration Alarm type: Setup the type of background alarm (Video Loss/Sensor/Motion) Alarm output type: Setup prompt type of background alarm/sound, alarm/vibrate 5.

  • Page 92: Product Specifications

    PRODUCT SPECIFICATIONS User Manual 9. VDT7008 SPECIFICATIONS ITEM DEVICE PARAMETER SPECIFICATION Compression Compression Format Standard H.264 Baseline COMPOSITE 1.0V p-p/75Ω, BNC x 8 Video In Video Out CVBS output LCD Resolution 800*480 Video 352*288/704*576 (PAL) Record Resolution 352*240/704*480 (NTSC) Display Frame Rate...

  • Page 93: Appendix A: Faq's

    APPENDIX A: FAQ’S User Manual APPENDIX A: FAQ’s The DVR does not start after connecting the power, what is wrong? a. The power adapter may have been damaged, or is not providing enough power. Please change the adapter. b. The DVR may not be getting enough power from the outlet or surge protector it is attached to.
  • Page 94 APPENDIX A: FAQ’S User Manual What can I do when the DVR starts and displays “please wait……”all the time? a. First possible reason: hard drive power cable and/or data cable are not securely connected. Solution: Please check the cable connections and make sure they are secure; if still not working, please unplug them and then plug them in again.
  • Page 95 APPENDIX A: FAQ’S User Manual PC MODULE PARAMATERS Intel Celeron 2.4G MOTHERBOARD Intel 845 512M NVIDIA GeForce MX440/FX5200 ATIRADEON 7500/X300 Windows 2000(SP4 above) /Windows XP(SP2 above) /VISTA/Win7 DIRECTX 14. What are the PC configurations for 8-ch real time access with fully open mainstream channel? PC MODULE PARAMATERS...
  • Page 96 APPENDIX A: FAQ’S User Manual Control(refer to 15-1); click Turn User Account on or off. Cancel Use User Account Control (UAC) to help protect your computer. 15-1 b. Right click IE browser (refer to Fig 15-2), select Run as administrator to run browser. 15-2...

  • Page 97: Appendix B: Calculate Recording Capacity

    APPENDIXB User manual APPENDIX B: CALCULATE RECORDING CAPACITY Users can calculate the hard drive size needed according to the time saving specification and DVR recording settings listed below. Below is an estimated table outlining hard drive space used when the DVR is configured at various settings. VIDEO VIDEO BIT RATE...

  • Page 98: Appendix C: Compatible Drives

    APPENDIX C User Manual APPENDIX C: COMPATIBLE DRIVES Compatible USB Drives after Testing BRAND CAPACITY 512MB, 1G, 2GB NETAC KINGSTON AIGO SMATTER VIDER SANDISK Compatible HDD after Testing BRAND CAPACITY Seagate Momentus5400.6 5000C5003717D4D2 500G Seagate Momentus5400.6 5000C5003845EDBF 320G HITACHI C5K500 HCC545032B9A300 320G...
  • Page 99 450017000002 A0...
