AVC Technology CP507 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.avc.com.hr
CP507
CP507 V0.97

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP507 and is the answer not in the manual?

Questions and answers

Related Manuals for AVC Technology CP507

Summary of Contents for AVC Technology CP507

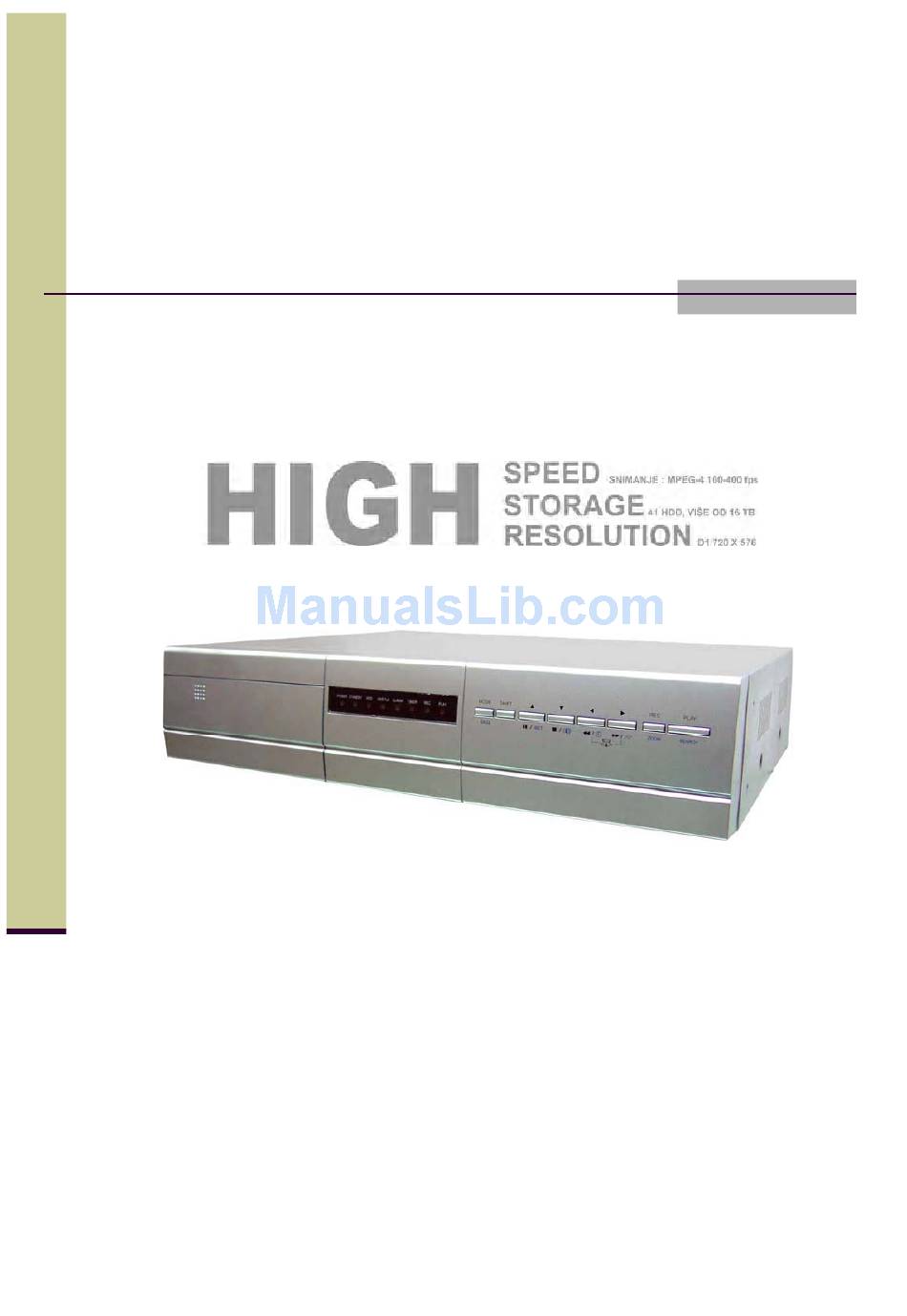

  • Page 1 CP507 CP507 V0.97...
  • Page 2 Thank-You Note Before You Get Start First of all, we would like to express our gratitude to you for purchasing this product. This product is designed to meet your personal needs with our great industry-designing ability and our everlasting perseverance to the quality of all our products. This manual will introduce to you how to install this apparatus.
  • Page 3 IMPORTANT SAFEGUARD IMPORTANT SAFEGUARD CAUTION CAUTION RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK CAUTION: CAUTION: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label. Failure to do so may cause injury or death by electric shock and invalidates the warranty.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS PARTS AND FEATURES PARTS AND FEATURES 1.1 FEATURES --------------------------------------------------------------------------------------------------------- 1.2 PACKAGE CONTENTS ----------------------------------------------------------------------------------------- 1.3 SPECIFICATION -------------------------------------------------------------------------------------------------- 1.4 FRONT PANEL ---------------------------------------------------------------------------------------------------- 1.5 REAR PANEL ------------------------------------------------------------------------------------------------------ INSTALLATION AND CONNECTION INSTALLATION AND CONNECTION 2.1 PHYSICAL CONNECTION -------------------------------------------------------------------------------------- 2.2 GETTING STARTED ---------------------------------------------------------------------------------------------- ADVANCED DESIGN ADVANCED DESIGN...

  • Page 5: Parts And Features

    PARTS AND FEATURES PARTS AND FEATURES 1.1 FEATURES 1.1 FEATURES DVS Features DVS Features MPEG-4 real time compression format High resolution recording (For 16 channels): Frame: 720 480 pixels with 120 IPS NTSC / 720 576 pixels with 100 IPS CIF: 352 240 pixels with 480 IPS NTSC / 352 288 pixels with 400 IPS...

  • Page 6: Specification

    1.3 SPECIFICATION 1.3 SPECIFICATION Video System NTSC / PAL (switch able) Video Compression Format MPEG 4 Video Input 16 / 8 Channels. Composite video signal 1 Vp-p 75 Video Loop Out 16 / 8 Channels. Composite video signal 1 Vp-p 75 Video Output Main Monitor Output: Composite video signal 1 Vp-p 75 Call Monitor Output: Composite video signal 1 Vp-p 75...
  • Page 7 Specification Continued… Motion Detection Area 16 12 grid per camera for all channels Motion Detect Sensitivity 4 adjustable variable with precise calculation for motion detection Pre-alarm Recording Yes (Ready in September, 2005) Backup Device USB1.1 Backup, and network remote backup R.E.T.R.

  • Page 8: Front Panel

    1.4 FRONT PANEL 1.4 FRONT PANEL POWER: (a) Press POWER button to turn on/ turn off the DVS. (Under recording mode, please stop record before turn off the DVS) MENU: (b) Press MENU button to enter main menu. ENTER / RECORD : (c) Press ENTER button to confirm.
  • Page 9 “ ”: (i) Press “ ” button to pause the play back files. “ ”: (j) Press “ ” button to stop the play back files. 10) “ “: (k) Under playback mode, press “ ” button to fast rewind. 11) “...

  • Page 10: Rear Panel

    1.5 REAR PANEL 1.5 REAR PANEL DISK ARRAY PORT: Connect to disk array for extend HDD capacity. Connect to IR receiver. RS485: Connect to external device (such as PTZ camera) with RS485-A and RS485-B. EXTERNAL I/O PORT: Connect to external device. Control external device or controlled remotely by external device.
  • Page 11 10) POWER: Connect to provided Adapter. 11) FAN: For ventilation. 12) VIDEO INPUT (CHANNEL 1 - 16 / CHANNEL 1 - 8) : Connect to video source, such as camera. 13) LOOP (CHANNEL 1 - 16 / CHANNEL 1 - 8): Video output.

  • Page 12: Installation And Connection

    INSTALLATION AND CONNECTION INSTALLATION AND CONNECTION 2.1 PHYSICAL CONNECTION 2.1 PHYSICAL CONNECTION Install HDDs. Please refer to Appendix #1 for installation instructions. Appendix #1 The HDDs must be installed before the DVS is turned on. The illustration below will show you how to connect cameras and monitor to DVS. Connecting the DVS to your existing surveillance system, as shown below.

  • Page 13: Getting Started

    2.2 GETTING STARTED 2.2 GETTING STARTED Before using the DVS, please have the HDDs installed ready. (refer to Appendix (refer to Appendix #1 for installation of HDDs #1 for installation of HDDs Connect the AC Power Cord to Power Adapter and plug into an electrical outlet. The Standby LED light will turn to red.

  • Page 14: Advanced Design

    ADVANCED DESIGN ADVANCED DESIGN “Advanced Motion Detection Setting” allows users to adjust different sensitivity factors base on different environment. And “Quick Event Search” allows users to examine the setting of motion detection factors. In this way, users can use specific motion detection setting to capture every important image.

  • Page 15: Quick Event Search

    3.2 QUICK EVENT SEARCH 3.2 QUICK EVENT SEARCH When finishing the setup of the motion detection, users could simply use the quick event search to examine the setting. There is a simple example for you to understand the principle. For example, Motion detection area: see as the following illustration picture.Motion detection factors: LS:10;...

  • Page 16: Playback

    4.2 PLAYBACK 4.2 PLAYBACK Press “ PLAY ” button, the DVS will display the last recording video. FAST FORWARD (F.F. ) & FAST REWIND (REW): You can increase speed for Fast Forward and Rewind on the DVS. In the Playback mode, Press ”...

  • Page 17: Detailed Menu Configuration

    DETAILED MENU CONFIGURATION DETAILED MENU CONFIGURATION 5.1 MENU TREE 5.1 MENU TREE MENU MENU TITLE TITLE ADVANCE ADVANCE RECORD RECORD TIMER TIMER DATE DATE BRIG BRIG CONT CONT CAMERA CAMERA DATE: DATE: MANUAL RECORD DATE DATE MANUAL RECORD SATU SATU YEAR MONTH DAY YEAR MONTH DAY ENABLE...

  • Page 18: Access Menu

    5.2 ACCESS MENU 5.2 ACCESS MENU Press “MENU” button to enter the main menu list. The default password is 0000. Enter the default password and press “ENTER”. (You can alter the password later) 0000 : press “ENTER” four times. Press “ ” or “ ” to select the numbers (from 0 to 9). There are 4 options available in the Main Menu: (MENU) RECORD...

  • Page 19: Record Record

    5.3 MAIN MENU OPTIONS___RECORD 5.3 MAIN MENU OPTIONS___RECORD (MENU) RECORD RECORD ► TIMER DATE ADVANCE Move the cursor to the “RECORD”, and press ”ENTER”, then the screen will show the following options. RECORD RECORD MANUAL RECORD ENABLE EVENT RECORD ENABLE TIMER RECORD ENABLE OVERWRITE RECORD IMG SIZE...
  • Page 20 EVENT RECORD IPS: Recording is activated by event (alarm and motion trigger). Select the images per second of EVENT RECORD, The options are as the followings: NTSC: FRAME: 120, 60, 30, 15 PAL: FRAME: 100, 50, 25, 12 NTSC CIF: 480, 240, 120, 60 CIF: 400, 200, 100, 50 TIMER RECORD IPS: Recording is activated by timer schedule.

  • Page 21: Main Menu Options_ Date

    DATE: Select the day, or days of the week (SUN/MON/TUE/ WED/ THU/ FRI/ SAT/ MON–FRI / SAT-SUN / DAILY/OFF) that you plan to schedule the DVR to auto recording. NOTE 1 : Specific date could be changed by “ ” or “ ” buttons. NOTE 2 : If you plan to set the timer recording across the midnight, there are two ways for setting the timer recording schedule, please following the instructions below.

  • Page 22: Main Menu Options_ Advance

    5.6 MAIN MENU OPTIONS___ADVANCE 5.6 MAIN MENU OPTIONS___ADVANCE (MENU) RECORD TIMER DATE ADVANCE ADVANCE ► Move the cursor to the “ADVANCE”, and press ”ENTER”, then the screen will show the following options. ADVANCE ADVANCE CAMERA DETECTION DISPLAY ALERT REMOTE SYSTEM NETWORK BACKUP HDD INFO...

  • Page 23: Advance Menu_ Detection

    TITLE: Move the cursor to the title which you want to change the title, and press “ENTER” to go in the setting screen. Assign each channel a title (up to six characters (letters or symbols…)), the default title is the channel number. BRIG / CONT / SATU / HUE: Adjust the Brightness/Contrast/Saturation/Hue of each channel.
  • Page 24 TITLE: Show the title of each channel of the camera. DET: Select “ON” to activate the motion detect function of each channel. Select “OFF” to inactivate the motion detect function of each channel. AREA: Press the “ENTER” button to set detection area. In this function, the default setting is un-detecting any area.

  • Page 25: Advance Menu_ Display

    TS : The sensitivity towards how long the object gets triggered. The smaller the value is, the higher sensitivity for motion detection. The highest sensitivity setting is 00, and the lowest sensitivity setting is 15. The default setting is 02. RE : The value of RE is a reference for detection.
  • Page 26 DWELL DURATION (SEC): Set the duration time of each camera for CALL MONITOR (2, 4, 8, 16 sec.) DE-INTERLACE: Set the “DE-INTERLACE” function on / off (Under Developing). 5.10 ADVANCE MENU ___ALERT 5.10 ADVANCE MENU ___ALERT Move the cursor to the “BUZZER”, and press ”ENTER”, then the screen will show the following options.

  • Page 27: Advance Menu_ Remote

    5.11 ADVANCE MENU ___REMOTE 5.11 ADVANCE MENU ___REMOTE Move the cursor to “REMOTE”, and press ”ENTER”, then the screen will show the following options. REMOTE REMOTE TITLE DEVICE PROTOCOL RATE P - D 02400 CAMERA NORMAL 02400 CAMERA NORMAL 02400 CAMERA NORMAL 02400...

  • Page 28: Advance Menu_ Network

    5.12 ADVANCE MENU ___SYSTEM 5.12 ADVANCE MENU ___SYSTEM Move the cursor to the “SYSTEM”, and press ”ENTER”, then the screen will show the following options. SYSTEM SYSTEM SERIAL TYPE RS - 485 BAUD RATE 02400 HOST ID PASSWORD 0000 RESET DEFAULT RESET CLEAR HDD MASTER...

  • Page 29: Advance Menu_ Backup

    LANGUAGE: Press “ENTER”, and select the language of the OSD. VERSION: The firmware version information will be shown on the screen. VIDEO FORMAT: The information of the DVR’s video format will be shown on the screen. 5.13 ADVANCE MENU ___NETWORK 5.13 ADVANCE MENU ___NETWORK Move the cursor to the “SYSTEM”, and press ”ENTER”, then the screen will show the following options.
  • Page 30 5.14 ADVANCE MENU ___ BACKUP 5.14 ADVANCE MENU ___ BACKUP Move the cursor to the “SYSTEM”, and press ”ENTER”, then the screen will show the following options. BACKUP BACKUP USB BACKUP Select “USB BACKUP” and then press “Enter”. USB BACKUP USB BACKUP TIME 2005-05-30 13 : 30 : 50...

  • Page 31: Advance Menu_ Event Log

    5.15 ADVANCE MENU ___HDD INFO 5.15 ADVANCE MENU ___HDD INFO You can get all the capacity information of the connected HDD. HDD INFO HDD INFO HDD NUM HDD SIZE HDD NUM HDD SIZE MASTER 400.517 SLAVE NOHDD EXT001 400.517 EXT002 400.517 EXT003 400.517...

  • Page 32: Additional Operation

    ADDITIONAL OPERATION ADDITIONAL OPERATION 6.1 SEARCH 6.1 SEARCH Press “ ” + “ ” buttons on the front panel of the DVR to enter the search mode. Then the screen will show the following options. SEARCH SEARCH MASTER FULL LIST RECORD LIST SYSTEM...

  • Page 33: Digital Zoom

    6.2 2X DIGITAL ZOOM 6.2 2X DIGITAL ZOOM Press “ZOOM” button on the front panel of the DVR to enlarge the picture of selected channel (2X digital zoom). You will have ¼ view size of the enlarged picture. Therefore use the to navigate.

  • Page 34: Usb Upgrade

    6.5 USB UPGRADE 6.5 USB UPGRADE Users can use USB for upgrade. Please format the USB memory device first. Get the upgrade files from your distributor. Save the upgrade files in your USB device (Do not change the file name). Go to the “MAIN MENU –...
  • Page 35 Press “Next”. Choose destination location and press “Next”. Set program shortcuts and press “Next”. Confirm setup settings and press “Next” to begin copying files. Click “Finish” button to complete the setup. And you will see the icon “ “ on the desktop.
  • Page 36 Software Operation: Software Operation Click twice to enter Login page. Method 1 ~ Local setting : Local setting : The default DVR IP is “192.168.1.10”, and default “user name” and “password” are both “admin”. Users could use “IP:192.168.1. _ (1~255, except 10)”, “user name: admin”, and “password: admin”...
  • Page 37 If you see the video screen as below, means that you have been successfully connected. 219.85.22.168 Introduction of Basic Operation : Video Web Server Control Panel. Digital Device Control Panel ~ 16CH DVR Digital Device Control Panel ~ 16CH DVR e f g h 219.85.22.168...
  • Page 38 Image Transfer Rate Per Second Data Transfer Rate Connect / Disconnect Resolution: NTSC: 320 228 ; 640 PAL: ; 640 Image Quality (High, Medium, Low) Snapshot : press this button to have a snapshot of the image which will be saved in the designated destination.
  • Page 39 Digital Device Control Panel ~ PTZ Digital Device Control Panel ~ PTZ 219.85.22.168 Hot Point: You can control your PTZ camera screen to a specific Preset 1 ~ 16 point by using cursor. AUTO Zoom Tele Zoom Wide Focus Near Focus Far Max Zoom In Max Zoom Out...
  • Page 40 Playback Operation. Snapshot Stop Pause Fast Rewind (1X, 2X, 4X, 8X, 16X) Slow Rewind (1X, 1/2X, 1/4X, 1/8X, 1/16X) PLAY (1X) Slow Playback (1X, 1/2X, 1/4X, 1/8X, 1/16X) Fast Forward (1X, 2X, 4X, 8X, 16X) OSD ( show / hide ) Config.

  • Page 41: Network Network

    Advanced Setting: Advanced Setting 219.85.22.168 Press “System Config ” button to enter the system setting page. In this “System setting” page, you can select the function which you want to set up. After setting, please press “APPLY” button to save the settings. System setting includes: Network, DDNS, Account, Online User, Alarm, Mail, FTP, Alarm Database, File Path, Device, Detection, Camera, and Toolbox.
  • Page 42 DDNS DDNS DDNS is a service for transforming web address to IP address. It only will be necessary when you have applied DDNS and use Dynamic IP for the Video Web Server. Account Account Set up the user’s account ( Max 5 accounts) , password, life time, and authority level ( Max 5 accounts on...
  • Page 43 Online User Online User You can get all the online users’ information here (Name, IP Address, Authority Level, Resolution, and Image Quality). 61.66.138.53 Alarm Alarm Alarm Trigger: Enable or disable Email and FTP notification function. Alarm Method: Two selections—Email or FTP. Post Number: MJPEG pictures (1-10 pictures).
  • Page 44 Mail Mail When alarm is triggered, the Video Web Server will capture the instant picture (10 JPEG pictures max), and e-mail it to the assigned recipients. You can get information (SMTP server) from your e-mail system supplier. You can add the email addresses where motion trigger captured pictures or film will be sent to by setting “Modify alarm...
  • Page 45 Alarm Database Alarm Database It’s a database, which precisely lists all alarm triggered events, with IP address of Video Web Server, alarm triggered time, and number of frames. You can directly play, delete, or clear all alarm recording events with ease. Click on the “Refresh”...
  • Page 46 Device Device You can edit all the external device in this Windows. Select the device, and then press “Edit” button to set up “Device Type”, “ID No.”, “Protocol Type” and “Baud Rate” to control the equipments via Video Web Server. This video web server supports different AP screens for control the following peripherals:...
  • Page 47 Camera Camera You can get the information of the DVR firmware version in the window. You can select “turbo step” (1 - 10). To speed up menu selecting or the control of the PTZ camera under video web server, you can activate "Turbo"...

  • Page 48: Connect To Ap Via Ie Browser

    6.7 CONNECT TO AP VIA IE BROWSER 6.7 CONNECT TO AP VIA IE BROWSER You can also connect to the video Web Server E via IE browser. This function is suitable in both Windows 2000 and Windows XP. This function is suitable in both Windows 2000 and Windows XP. Step 1: Type IP address into the URL address box and press “enter”.
  • Page 49 Step 4: Choose “Windows Offline Installation” or “Windows Online Installation”. Step 4 • Windows Offline Installation • Windows Online Installation Step 5: Take “Windows Offline Installation” as a example. Step 5 Save the setup file “jre-1_5_0_04-windows-i586-p” on the desktop of PC. Click “...

  • Page 50: Retr

    6.8 R.E.T.R. 6.8 R.E.T.R. Before you activated the R.E.T.R. function, please set the detection area and activated the motion detection function first. There are three way to activate the Remote Event Trigger Recording function. DVR Front Panel: Press “Menu” + “ ” buttons on the DVR front panel. And R.E.T.R. function will activate 3 / 5 / 10 minutes later.

  • Page 52: Install The Hdd

    APPENDIX #1 APPENDIX #1 APPENDIX #1 – INSTALL THE HDD APPENDIX #1 – INSTALL THE HDD Carefully following the steps to ensure correct installation. *** Note: If you want to install two HDDs, please set one HDD to “Master Mode” or “Single Mode”, and the other one to “Slave Mode”.

  • Page 53: Pin Configuration

    APPENDIX #2 APPENDIX #2 APPENDIX #2 – PIN CONFIGURATION APPENDIX #2 – PIN CONFIGURATION PIN 1. GROUND PIN 2. ~ PIN 9. ALARM INPUT ALARM INPUT To connect wire from ALARM INPUT ( PIN 2 -- 9 ) to GND ( PIN 1 ) connector, DMR will start recording and buzzer will be on.

  • Page 54: Ir Transmitter

    APPENDIX #3 APPENDIX #3 APPENDIX #3 – IR TRANSMITTER APPENDIX #3 – IR TRANSMITTER CAMERA control buttons: Button (1) to (10). (button (9) is used for control the switch) DVS control buttons: Button (11) to (29). OTHER control buttons – Support controlling both CAMERA & DVS. Button (30) to (33). Digital Zoom is not supported now.
  • Page 55 CAMERA Preset: Press this button to set the preset points of the PTZ. Use the “ “ “ “ to move the cursor. Use the “ENTER” button to enter the submenu, and confirm the selection. Use the “MENU” button to enter the menu mode, confirm the change and exit the menu mode.
  • Page 56 ID : Press the “ID” button, the “CAMERA ID” will be shown the screen. Light : Press the “Light” button, to turn on / turn off the power of remote switch. Menu : Press the “Menu” button, to enter the main menu of the CAMERA. Digital Zoom : Press the “Digital Zoom”...
  • Page 57 Menu : Press the “Menu” button, to enter the main menu of the DVS. Channel selection buttons : Press buttons, to select the 16 / 9 / 4 channel display. Set: Press the “Set” button, to swap channel display position. For example, if you want to swap “01”...
  • Page 58 OTHER OTHER POWER : Press the “POWER” button, to turn off the power of DVS. (If the DVS is under recording, then you must stop recording first.) Number selections buttons : Press the “ “ buttons, to select numbers / to select the channel number UP, DOWN, LEFT, RIGHT: Press the “UP”, “DOWN”, “LEFT”, “RIGHT”...

  • Page 59: Recording Time Table

    APPENDIX #4 APPENDIX #4 APPENDIX #4 – RECORDING TIME TABLE APPENDIX #4 – RECORDING TIME TABLE Take NTSC system as an example. Record mode Quality 500GB record time Record day 4CIF Frame Best 166h 266h 364h 436h High 197h 335h 421h 526h Normal...
