- Page 1 Installation & Operating Instructions for UH-300 / UH-301 / UH-303 Ultrasonic Humidifiers Humidity Source, LLC 90 Dayton Ave. Bldg. 1-D, Passaic, New Jersey 07055 TEL 973-815-1001 FAX: 973-815-1342 www.humiditysource.com...
-
Page 2: Specifications
Specifications: Model No. UH-300/301/303 Item Industrial Humidifier Power Supply 110VAC 60Hz Power Consumption 340W microns Particle Size Humidification 7.5 lb/hr Capacity Noise Level < 48dB Feed Water Pressure 10 to 70 psig Dimensions W 18 ¼ X D 7 ¼ X H 11 ¾ in... -
Page 3: Name Of Each Part
1. Screws Name of each part: 2. Cover 3. Mist generator 4. Humidifier Outlet 5. Filter Screen 6. Float Valve 7. Water Level Sensor 8. Power Switch 9. Fan 10. Transformer 11. Converter 12. SSR 13. Water connection 14. Power Cord 15. -
Page 4: Installation

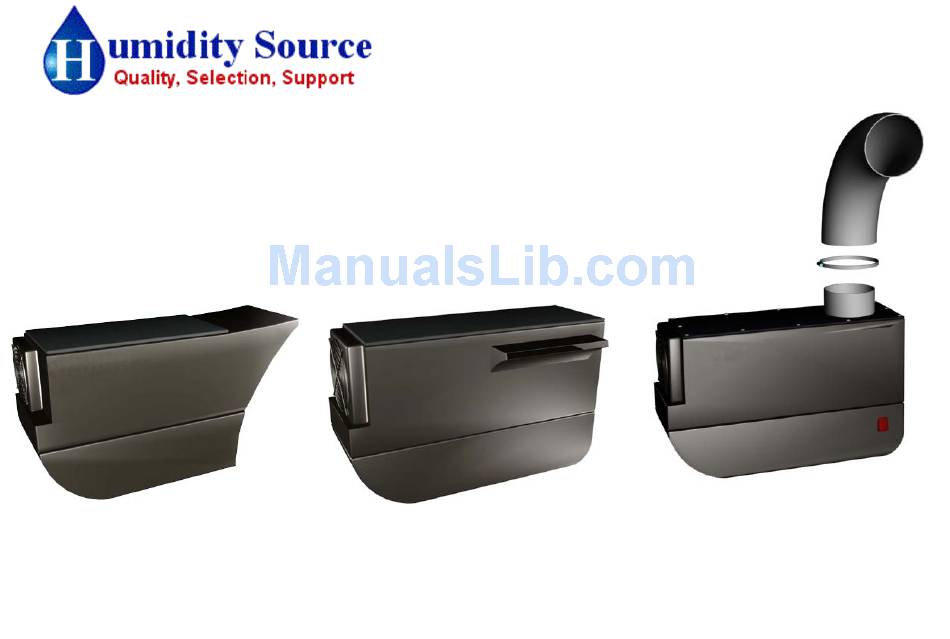

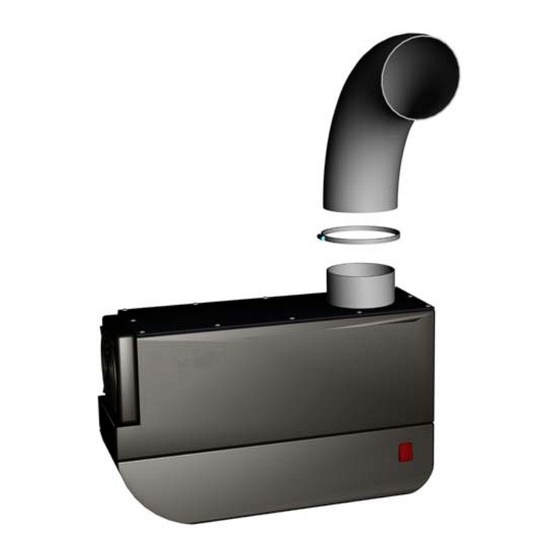

Installation: UH-300 UH-300 Put on table, shelf or floor Hang from the ceiling with bracket UH-303 UH-301 Mount on wall with flexible hose to duct Attach to the wall with mounting bracket... - Page 5 How to Attach the Flex Hose on UH-303 Name of each part 1. Flexible hose for connecting to duct 2. Flex hose clamp 3. Outlet collar How to attach the Flex Hose 1. Apply silicon sealant to the outlet collar 2.
- Page 6 5. Connect the new mist generator cables to the converter using the same colors as above. Refer to the picture [How to connect the cables] 6. Reinstall cover. Humidity Source, LLC 90 Dayton Ave. Bldg. 1-D, Passaic, New Jersey 07055 TEL 973-815-1001 FAX: 973-815-1342...
-
Page 7: How To Operate
How To Operate: If the humidifier is not going to be used for an extended period of time, drain water completely and leave dry. When restarting, wait until the water level has been at the full operating level for a minimum of 5 minutes before operating the humidifier. -
Page 8: How To Connect The Cables
How to connect the cables AC 110V or 220V Arrows below indicate mist generator cables: White cable = white arrow(-) Red cable = red arrow(+)
