umidity Source
H
Quality, Selection, Support

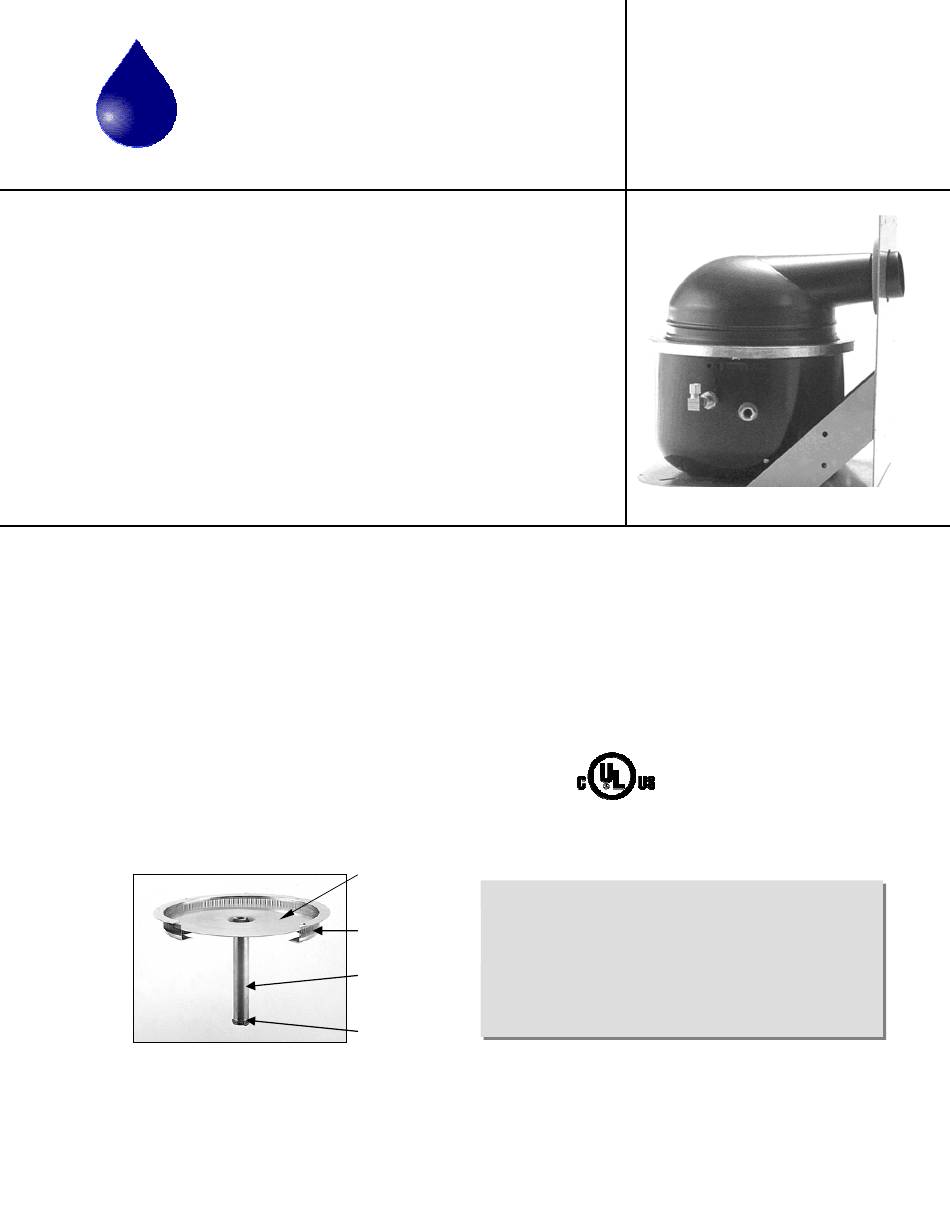

Sample specifications for SW-2
Humidifiers shall be of the high speed centrifugal atomizing type.
Construction shall be of heavy gauge copper, brass and non-ferrous
alloy. Heavy duty shaded pole motor with overload protection shall
drive the centrifugal disc and pump assembly to draw water up from the
seamless copper reservoir, against breaker combs, producing a finely
atomized mist. Rotating parts shall be electronically balanced to
eliminate vibration. An automatic float valve shall maintain water level
in the reservoir.
Vapor output of the humidifier shall be constant while in operation and
shall not depend on the temperature of the air or water.
Humidifier(s) shall be Model SW-2 as manufactured by Humidity
Source, LLC. Must be UL listed for US and Canada.
CAPACITY
Moisture Output – 2 lb./hr.
WEIGHT
Net: 10 lb.
Shipping: 11 lb.
Operating: 15 lb.
WATER CONNECTIONS & PRESSURES
Supply: 1/8" Male Pipe Thread
Overflow: ¼" Female Pipe Thread
Operating Pressure Range: 10-150 psig
SPECIFICATIONS
Disk
Vapor Making
Heart of the unit
Comb
The heart of Humidity Source humidifier units is the patented
masterfully engineered Centrifugal Atomizer.
centrifugal force up through the rotating impeller cap and pump tube,
Pump Tube
then spun across the disk rotating at 3250 RPM striking the Vapor-
Maker Comb creating an extremely fine vapor. An integral fan under
the rotating disk blows the vapor out of the unit resulting in a fine
Impeller
atomized vapor that is quickly absorbed into the air.
Cap
1
MODEL
SW-2
Support bracket optional
Electric Motor
50 Watts
115 volts, single phase, 60 Hz.
CARTON SIZE
15 ½" X 12 ¼" X 15 ¼"
CENTRIFUGAL ATOMIZER
Water is drawn by
