7.15. Dispenser assembly

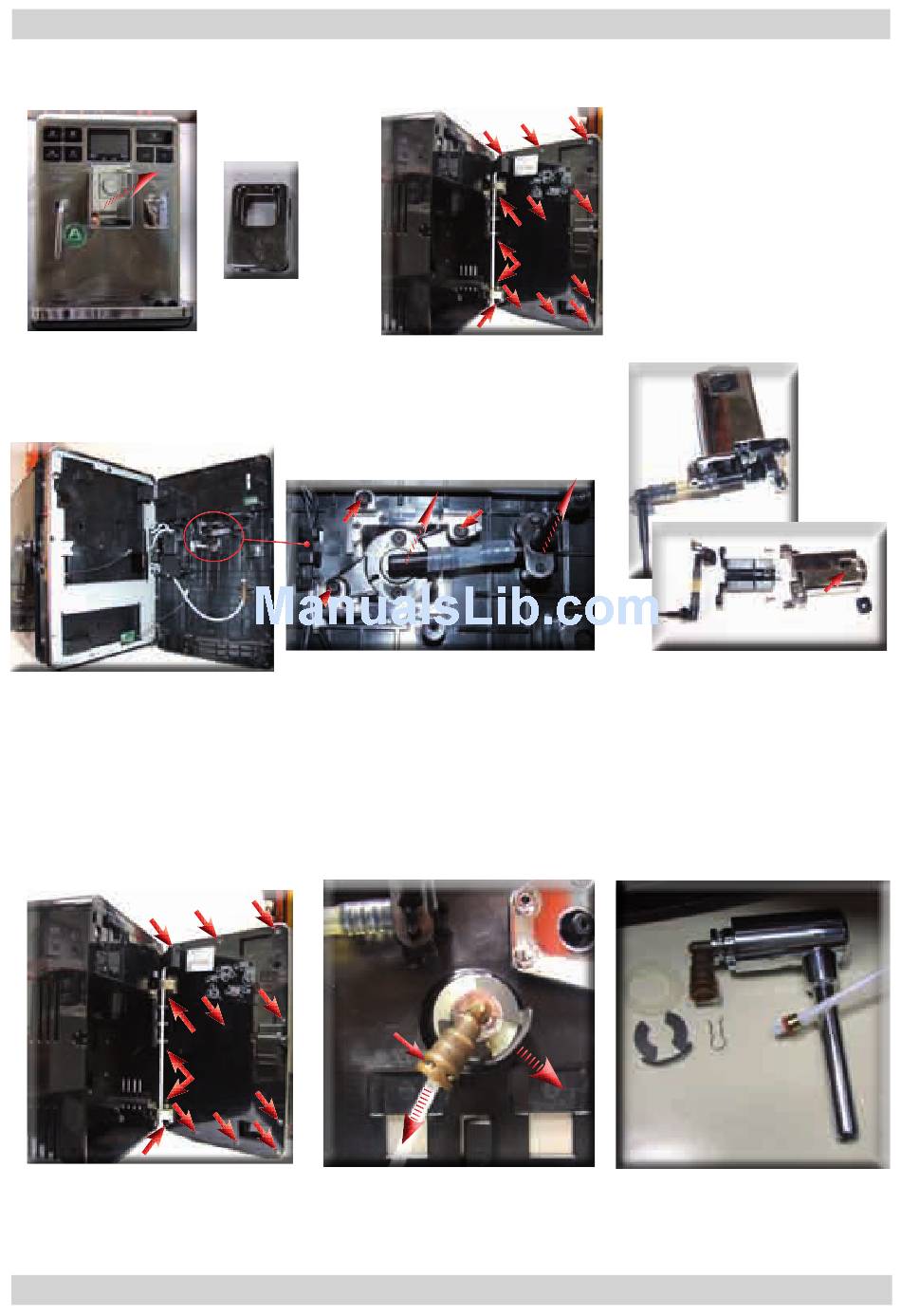

Extract the dispenser assembly
Loosen the screws located inside the door and slide out the coffee

7.16. Steam pipe assembly

Loosen the screws as illustrated to
remove the inner front panel cover
Saeco International Group
Loosen the screws as illustrated
to remove the inner front panel
cover
dispenser as shown
Remove the fork spring and the steam pipe washer, disconnect the pipe
from the Teflon by removing the fork
Rev. 00 / June 2010
07 DISASSEMBLY
A A
B B
Remove the dispenser (photo B);
when replacing it, make sure the
spring highlighted is positioned
correctly
Page 07 / 09
