EXPRELIA

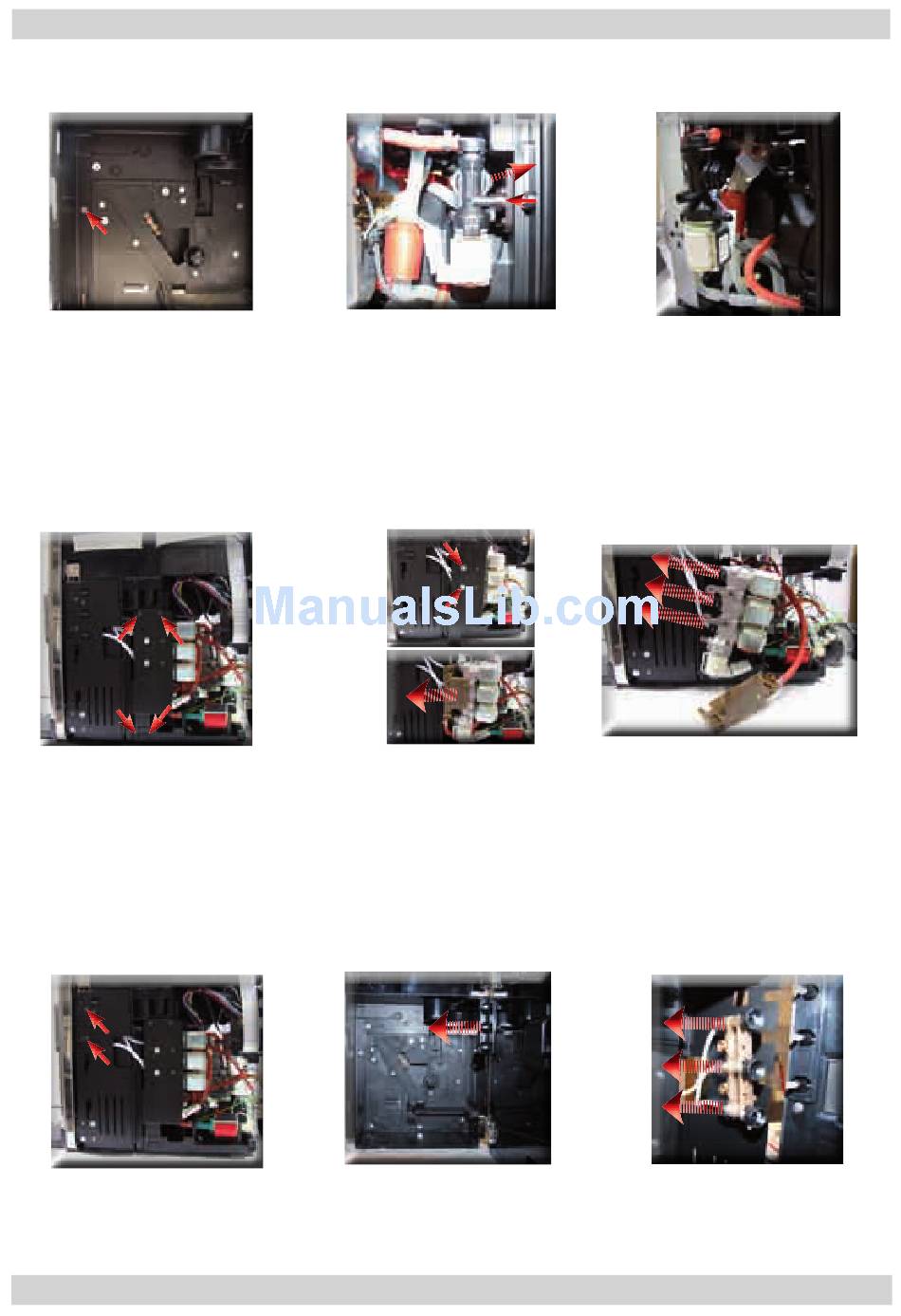

7.1.

Multi-way valve

Unscrew the screws as
indicated to reach the screw
anchoring the multi-way valve
to the support

7.13. Frother unit valve assembly

Unscrew the screws anchoring the
valve support to the housing and
to the horizontal plate as shown

7.14. Door tube coupling

Loosen the screws as
illustrated
Saeco International Group
Loosen the screw as
illustrated and remove
the clip
Unscrew the screws
shown and pull out
the valve assembly
Extract the coupling
guard
Rev. 00 / June 2010
07 DISASSEMBLY
Disconnect the
electrical and water
circuit connections
A A
Unhook the support for
coupling the drain (A) and
extract the three Teflon tubes
as shown
Unhook the coupling (A) and
extract the three Teflon tubes
as shown
Page 06 / 09
