EXPRELIA

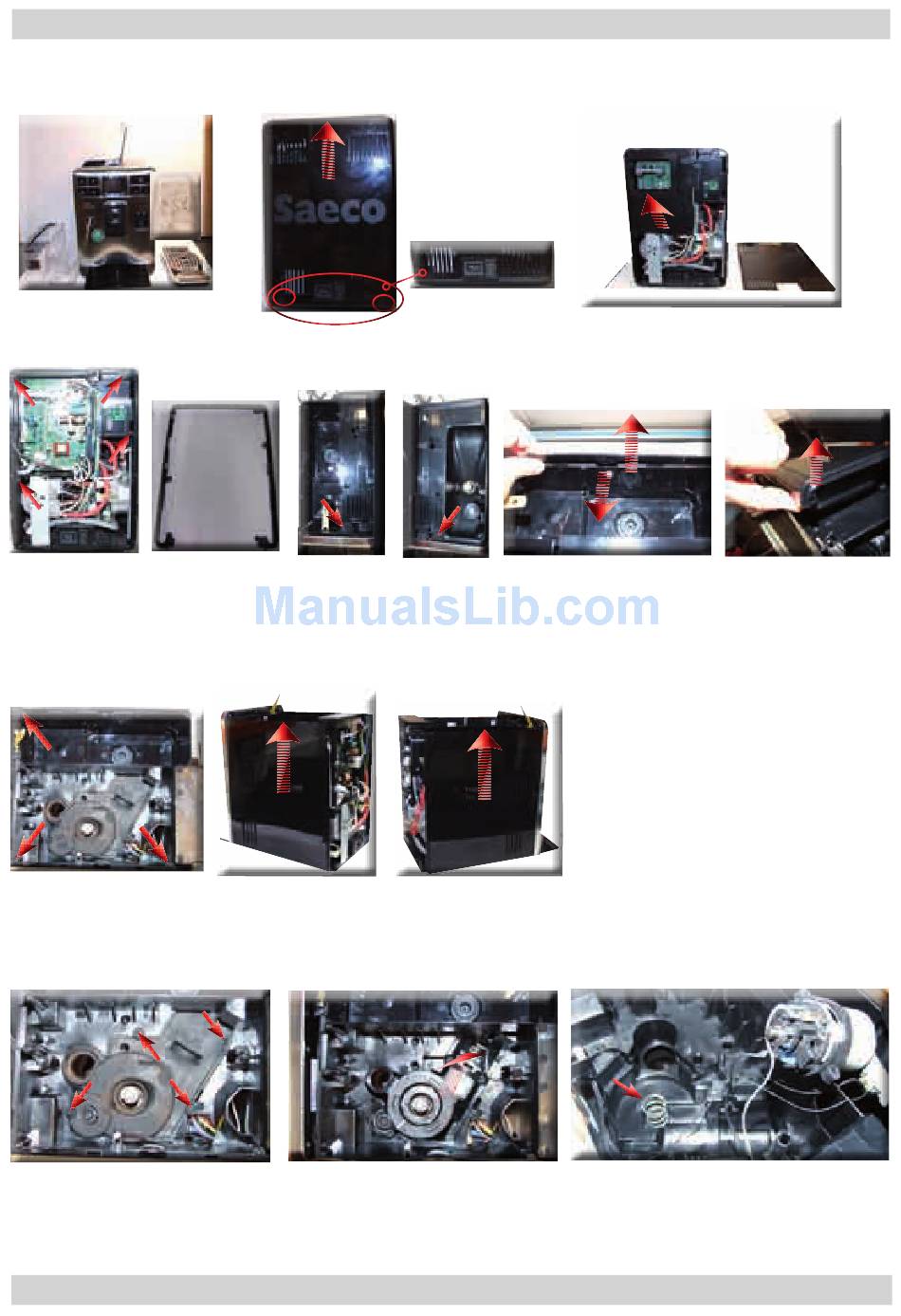

7.1.

Outer elements

Remove the water tank,
coffee container cover and
water drip tray
Loosen the screws as
indicated and remove the rear
frame
7.2.

Coffee grinder

Loosen the screws as
illustrated and remove the
sound insulating cover of the
coffee grinder
Saeco International Group
Take off the caps
covering the screws
and unscrew them.
Raise the rear cover
and take it off
A A
B B
Unscrew the screws as indicated under the water container cover
(A) and the coffee bean hopper (B). Unhook and gently raise the
casing cover (C) by a few cm. Go onto the opposite side and raise
the cover as shown in the photo (D)
Raise the coffee
grinder and remove the
connections
Rev. 00 / June 2010

07 DISASSEMBLY

Extract the PWR cover
C C
Unscrew the screws shown and
pull out the RH and LH panel
assembly
When reassembling the coffee
grinder, make sure the spring is
repositioned correctly (see photo)
D D
01
Page / 09
