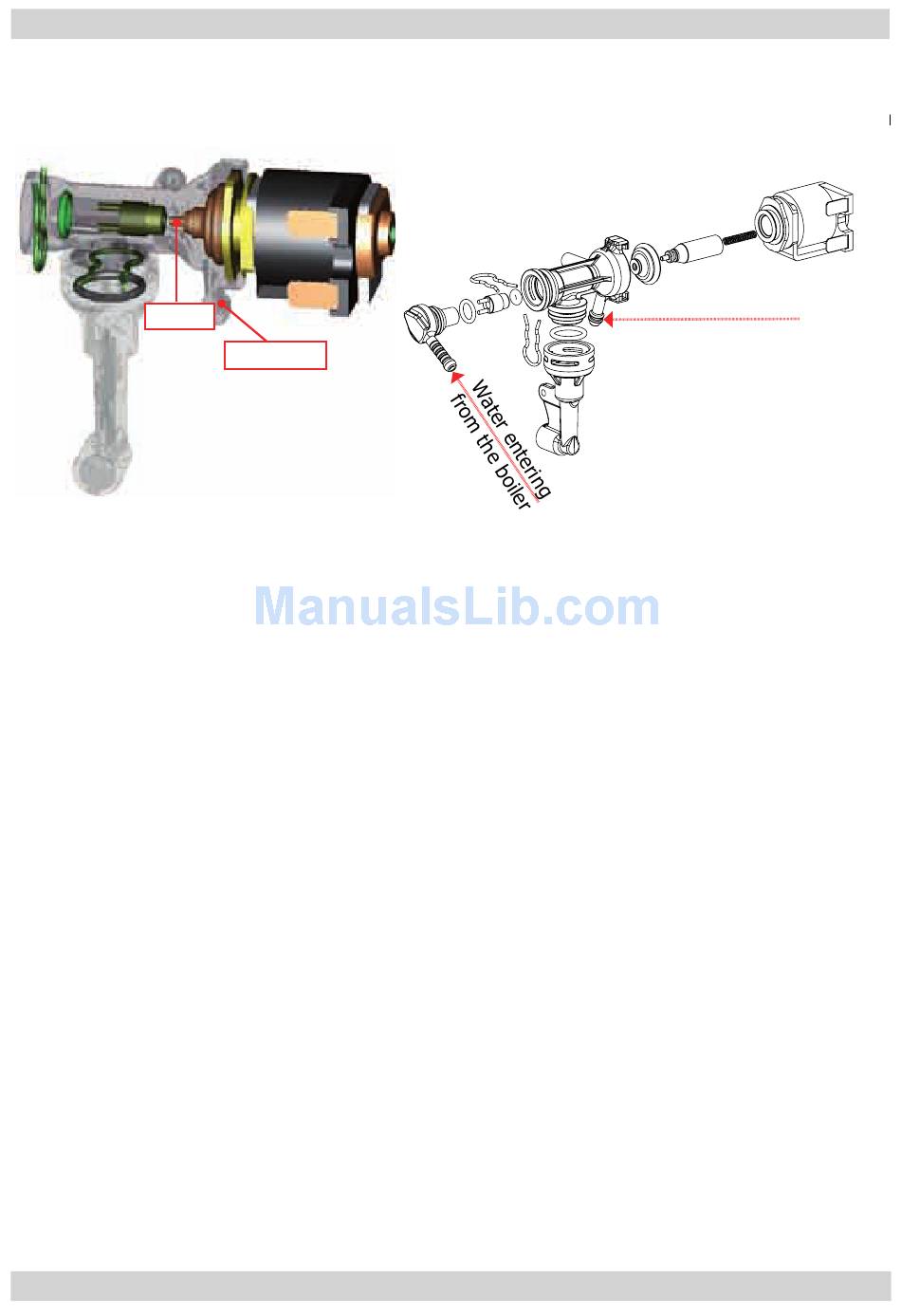

Multi-way valve

Drain to drip tray
Needle
Drain
Functions:
Safety valve: functions as a safety valve by opening towards the drain in the event that the pressure rises above
16-19 bar
Filling the circuit: the solenoid valve opens (drain position) and the pump is activated, automatically refilling the
circuit by expelling the air in the pipe
Unit discharge: before the unit descends it opens briefly, discharging the pressure created to prevent spraying and
making the pad drier
Coffee beverage: when a coffee beverage is selected, the pump is charged briefly during the grinding process and
the valve assumes the drain position in order to fill the pipes with hot water.
