Bunker Hill Security 95914 Owner's Manual & Safety Instructions

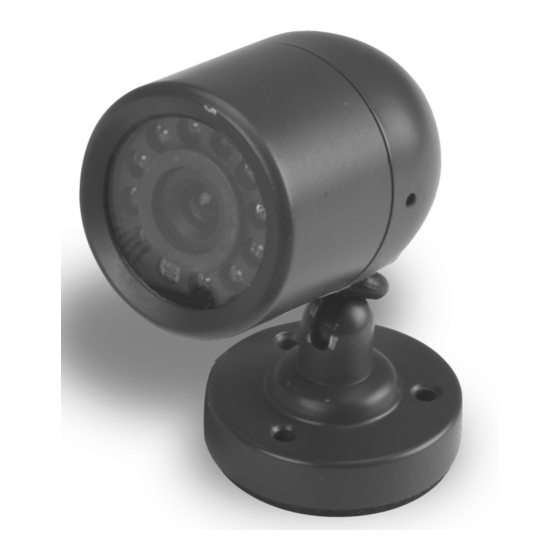

Weatherproof color security camera
Hide thumbs
Also See for 95914:
- Set up and operating instructions manual (11 pages) ,
- Owner's manual (13 pages)
Advertisement
Table of Contents
- 1 Camera
- 2 Power Adapter
- 3 Cable
- 4 Modular Jack
- 5 Item
- 6 Troubleshooting
- 7 Record Product's Serial Number here
- 8 Note: if Product Has no Serial Number, Record Month and Year of Purchase Instead
- 9 Note: some Parts Are Listed and Shown for Illustration Purposes Only
- 10 And Are Not Available Individually as Replacement Parts
- Download this manual
See also:
Owner's Manual
Owner's Manual & Safety Instructions
Save This Manual
inspection, maintenance and cleaning procedures. Write the product's serial number in the back of the manual
near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
REV 14d
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2007 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product
described herein. Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly, operating,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Advertisement
Table of Contents
Related Manuals for Bunker Hill Security 95914
Summary of Contents for Bunker Hill Security 95914
- Page 1 No portion of this manual or any artwork contained herein may be reproduced in Failure to do so can result in serious injury. any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing SAVE THIS MANUAL.
-
Page 2: Camera
This enables better control in unexpected situations. Wear ANSI-approved safety goggles during installation. This product is not a toy. Mount it out of reach of children. For technical questions, please call 1-888-866-5797. Page 2 Item 95914... -
Page 3: Power Adapter
Tag damaged on the camera. These carry products “Do not use” until repaired. important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement. SAVE THESE INSTRUCTIONS. Item 95914 For technical questions, please call 1-888-866-5797. Page 3... -
Page 4: Cable
300 x 380 TV lines Daylight: Color Image Type Infrared: Black & White Cable 80 feet Operating Temperature 14º to 122º F 40º down, 20º up, Angle 360º side to side Page 4 For technical questions, please call 1-888-866-5797. Item 95914... -
Page 5: Modular Jack
At night windows can reflect back as to avoid a tripping hazard. into the Camera, interfering with the image. Test the Camera in the intended location before mounting. Rev 14d, 14d, 14d, 14d Item 95914 For technical questions, please call 1-888-866-5797. Page 5... -
Page 6: Item
Screw Figure D Camera Base Mount the Camera to the chosen location, using the three included bolts through the three holes in the Camera Base. Rev 07i, 08j, 10a, 10l Page 6 For technical questions, please call 1-888-866-5797. Item 95914... - Page 7 Audio Input Port. be used indoors in a clean, dry location. Figure E TELEVISION (NOT INCLUDED) POWER ADAPTER (2) MODULAR JACK (4) CABLE (3) REV 07i, 09g Item 95914 For technical questions, please call 1-888-866-5797. Page 7...
- Page 8 Power Adapter (2) should appear on the screen. from the electrical outlet. The Camera will operate continuously (day and night) while the Power Adapter (2) is plugged in. Page 8 For technical questions, please call 1-888-866-5797. Item 95914...
-
Page 9: Troubleshooting
Image on the television Camera not mounted correctly. Reposition camera mount to mounting holes is upside down. at the top rear of the camera (see page 8). REV 14d Item 95914 For technical questions, please call 1-888-866-5797. Page 9... -
Page 10: Table Of Contents
Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Page 10 For technical questions, please call 1-888-866-5797. Item 95914... - Page 11 BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. Item 95914 For technical questions, please call 1-888-866-5797. Page 11...
