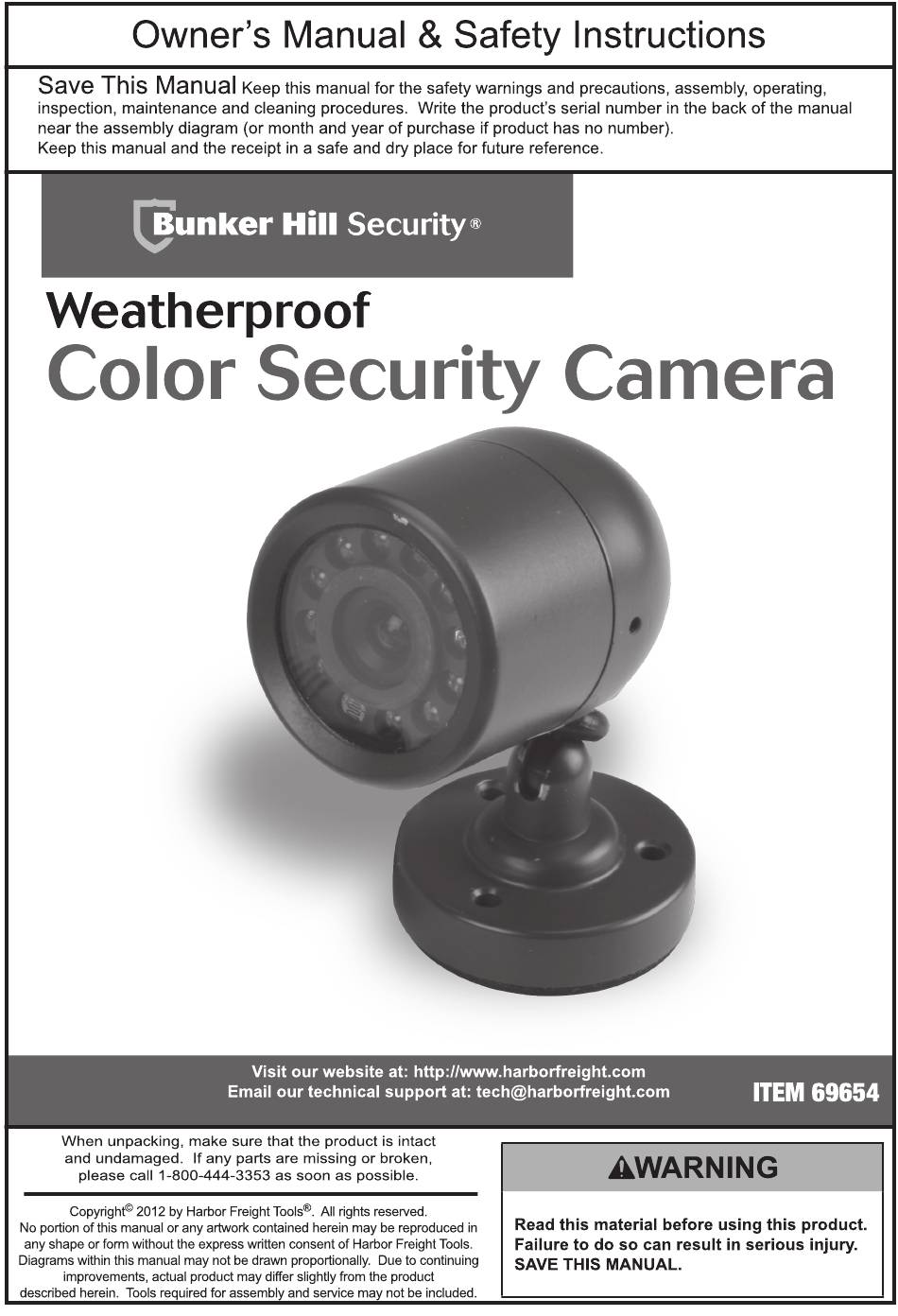

Bunker Hill Security 69654 Owner's Manual & Safety Instructions

Weatherproof color security camera
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 69654 and is the answer not in the manual?

Questions and answers

Related Manuals for Bunker Hill Security 69654

Summary of Contents for Bunker Hill Security 69654

  • Page 2: Important Safety Information

    This enables better control in unexpected situations. Wear ANSI-approved safety goggles during installation. This product is not a toy. Mount it out of reach of children. Page 2 For technical questions, please call 1-800-444-3353. SKU 69654...

  • Page 3: Operation Safety

    Tag damaged the camera. These carry important products “Do not use” until repaired. safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement. SAVE THESE INSTRUCTIONS. SKU 69654 For technical questions, please call 1-800-444-3353. Page 3...

  • Page 4: Extension Cords

    300 x 380 TV lines Daylight: Color Image Type Infrared: Black & White Cable 80 feet Operating Temperature 14º to 122º F 40º down, 20º up, Angle 360º side to side Page 4 For technical questions, please call 1-800-444-3353. SKU 69654...

  • Page 5: Installation Instructions

    At night windows can reflect back as to avoid a tripping hazard. into the Camera, interfering with the image. Test the Camera in the intended location before mounting. Rev 07i, 09e, 10a, 10l SKU 69654 For technical questions, please call 1-800-444-3353. Page 5...
  • Page 6 Screwdriver Screw Figure D Camera Base Mount the Camera to the chosen location, using the three included bolts through the three holes in the Camera Base. Page 6 For technical questions, please call 1-800-444-3353. SKU 69654...

  • Page 7: Cable Connection

    CAUTION! The Power Adapter MUST into the television’s Audio Input Port. be used indoors in a clean, dry location. Figure E TELEVISION (NOT INCLUDED) POWER ADAPTER (2) MODULAR JACK (4) CABLE (3) SKU 69654 For technical questions, please call 1-800-444-3353. Page 7...
  • Page 8 Power Adapter (2) should appear on the screen. from the electrical outlet. The Camera will operate continuously (day and night) while the Power Adapter (2) is plugged in. Page 8 For technical questions, please call 1-800-444-3353. SKU 69654...

  • Page 9: Inspection, Maintenance, And Cleaning

    Image on the television Camera not mounted correctly. Reposition camera mount to mounting holes is upside down. at the top rear of the camera (see page 8). SKU 69654 For technical questions, please call 1-800-444-3353. Page 9...

  • Page 10: Parts List And Diagram

    Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Page 10 For technical questions, please call 1-800-444-3353. SKU 69654...

  • Page 11: Please Read The Following Carefully

    BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. SKU 69654 For technical questions, please call 1-800-444-3353. Page 11...

  • Page 12: Limited 90-Day Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
