Page 1: User Guide

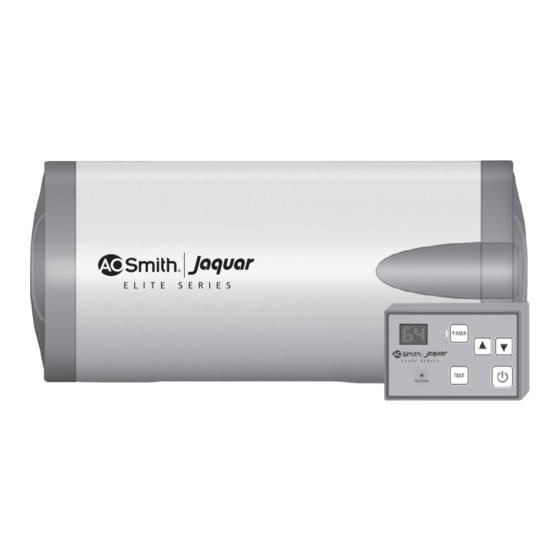

Water Heater EWJH 15 & 25 Litres GLASS COATED DOUBLE COATED WIRED REMOTE HIGH STRENGTH HEATING ELEMENT GLASS LINING CONTROLLER STEEL TANK User Guide... -
Page 2: Table Of Contents
What's in the box? User Guide Electric Water Heater with Mounting Wired Remote Controller Accessories Safety Valve Discharge Tube Contents User Instructions ..................1 Specifications ..................2 Key Features ................... 5 Installation....................6 Directions for use ................. 11 Troubleshooting ................... 13 Circuit Diagram .................. -
Page 3: User Instructions
This user guide is meant for your future reference and is applicable for the following models. EWJH - 15 EWJH - 25 EWJH 15 - LHS EWJH 25 - LHS Please refer the invoice or the product nameplate for identifying the model name. Please follow the instructions accordingly. -
Page 4: Specifications
35-75 Rated water pressure N/cm Water head (metres) Inlet/Outlet connections [Inch] ½ ½ For Left Hand Side Inlet Outlet Models Model EWJH 15 - LHS EWJH 25 - LHS Volume [L] Power [W] 2000 2000 Voltage/Frequency [V/Hz] ~230/50 ~230/50 Actual Stdg. Loss [kWh/24h/45°C diff.] 0.525... - Page 5 Dimensions and Part Descriptors Model EWJH - 15 EWJH - 25 A1 [mm] A2 [mm] B [mm] C [mm] D [mm] E [mm] Part Descriptors Outlet Inlet Wired Remote Controller Red Cap Blue Cap Jacket Left Cover Right Cover Service Cover Anode Heating Element Tank...
- Page 6 Dimensions and Part Descriptors Model EWJH 15 - LHS EWJH 25 - LHS A1 [mm] A2 [mm] B [mm] C [mm] D [mm] E [mm] Part Descriptors Outlet Inlet Wired Remote Controller Red Cap Blue Cap Jacket Left Cover Right Cover...
-
Page 7: Key Features
Key Features Glass Coated Heating Element Scale and sediment build-up on the surface of the element can lead to premature failure. A. O. Smith Glass Coating helps to prevent scale formation and extends the life of the heating element. Double Coated Inner Tank Double coating of the glass lining increases glass thickness and ensures good glass coverage, thus reducing the risk of tank steel corrosion. -
Page 8: Installation
400 mm Screw Hanger Water heater Fig. 1B Applicable for models EWJH 15 - LHS and EWJH 25 - LHS Fig. 4 Inserting the water heater into mounting bracket 1. Make sure that the wall can withstand at least twice the weight of the water heater when completely filled with water. - Page 9 Note: Steps 1 through 7 shown above is applicable for models EWJH 15 and EWJH 25. Similar steps needs to be followed for EWJH 15 - LHS and EWJH 25 - LHS.
- Page 10 *Flexible Hose Blue Cap Discharge Tube To Drain Fig. 5B Applicable for models EWJH 15 - LHS and EWJH 25 - LHS Hot Water Tap Cold Water Tap *Flexible Hoses to be procured by the customer, not part of standard product.
-
Page 11: Electrical Connections
Plumbing Make necessary plumbing with reference to the installation diagram. (Fig. 5) A. O. Smith recommends nylon/SS braided hoses having a minimum pressure rating of 8 Bar and hoses should be compatible for hot water applications. Connect the cold water pipe to the inlet [Blue Cap]. Connect the hot water pipe to the outlet [Red Cap]. - Page 12 Draining For draining water from the water heater, following steps needs to be followed: 1. Switch off the electric supply to the water heater. 2. Open the hot water taps until the water is not hot any more. 3. Close cold water supply. 4.
-
Page 13: Directions For Use
Directions for use Caution: • Before using the water heater, make sure the inner tank is completely filled with water and the power plug has been connected properly. • Operating the water heater with insufficient or No water may result in permanent damage to the water heater and may cause damage to the property and injuries to the users. - Page 14 The value of the set temperature can be increased or decreased by one unit when the button is pressed. If the button is pressed continuously, the setting temperature increases or decreases continuously. If the button is released, it will exit the temperature setting mode after the flashing stops.
-
Page 15: Troubleshooting
Troubleshooting Problem Possible Cause(s) Solution • No display on wired Heater is not plugged in Plug in the heater remote controller Thermal cutout trips Call Customer Care Centre • No hot water No power supply in power Check the power socket socket on the wall Control circuit or internal Call Customer Care Centre... -
Page 16: Circuit Diagram
Circuit Diagram High Limit Brown Mains Board Element Blue Black Control Board Sensor Green and Yellow Link Water Tank 7- Core Harness... - Page 17 Dear Customer, Congratulations! You have bought a world-class product manufactured by A. O. Smith India Water Heating Private Limited. It is a wholly owned subsidiary of A. O. Smith Corporation (A. O. Smith). A. O. Smith is one of the largest water heater manufacturer in the world and a global leader in innovative technology and energy efficient solutions.
-
Page 18: Warranty Card
Warranty Card We hereby warrant this product against failure arising through faulty designs, material or workmanship for a period as mentioned below from the date of purchase subject to certain conditions specified. EWJH / EWJH - LHS • Tank 7 years •... - Page 19 Dear Customer, Congratulations! You have bought a world-class product manufactured by A. O. Smith India Water Heating Private Limited. It is a wholly owned subsidiary of A. O. Smith Corporation (A. O. Smith). A. O. Smith is one of the largest water heater manufacturer in the world and a global leader in innovative technology and energy efficient solutions.
- Page 20 Warranty Card We hereby warrant this product against failure arising through faulty designs, material or workmanship for a period as mentioned below from the date of purchase subject to certain conditions specified. EWJH / EWJH - LHS • Tank 7 years •...
- Page 21 Dear Customer, Congratulations! You have bought a world-class product manufactured by A. O. Smith India Water Heating Private Limited. It is a wholly owned subsidiary of A. O. Smith Corporation (A. O. Smith). A. O. Smith is one of the largest water heater manufacturer in the world and a global leader in innovative technology and energy efficient solutions.
- Page 22 Warranty Card We hereby warrant this product against failure arising through faulty designs, material or workmanship for a period as mentioned below from the date of purchase subject to certain conditions specified. EWJH / EWJH - LHS • Tank 7 years •...
-
Page 23: Jaquar And Company Pvt. Ltd
Jaquar and Company Pvt. Ltd. Corporate Office 306, Udyog Vihar Phase-2, Gurgaon. Haryana. Tel.: 0124.474.6800-20 Customer Care Toll Free: 1.800.121.6808... - Page 24 Manufactured by A. O. Smith India Water Heating Private Limited Plot No. 300, Phase-2, KIADB Industrial Area, Harohalli, Kanakapura Taluk, Ramanagara District - 562 112, Karnataka, India. Toll Free: 1.800.103.2468 Website: www.aosmithindia.com...
