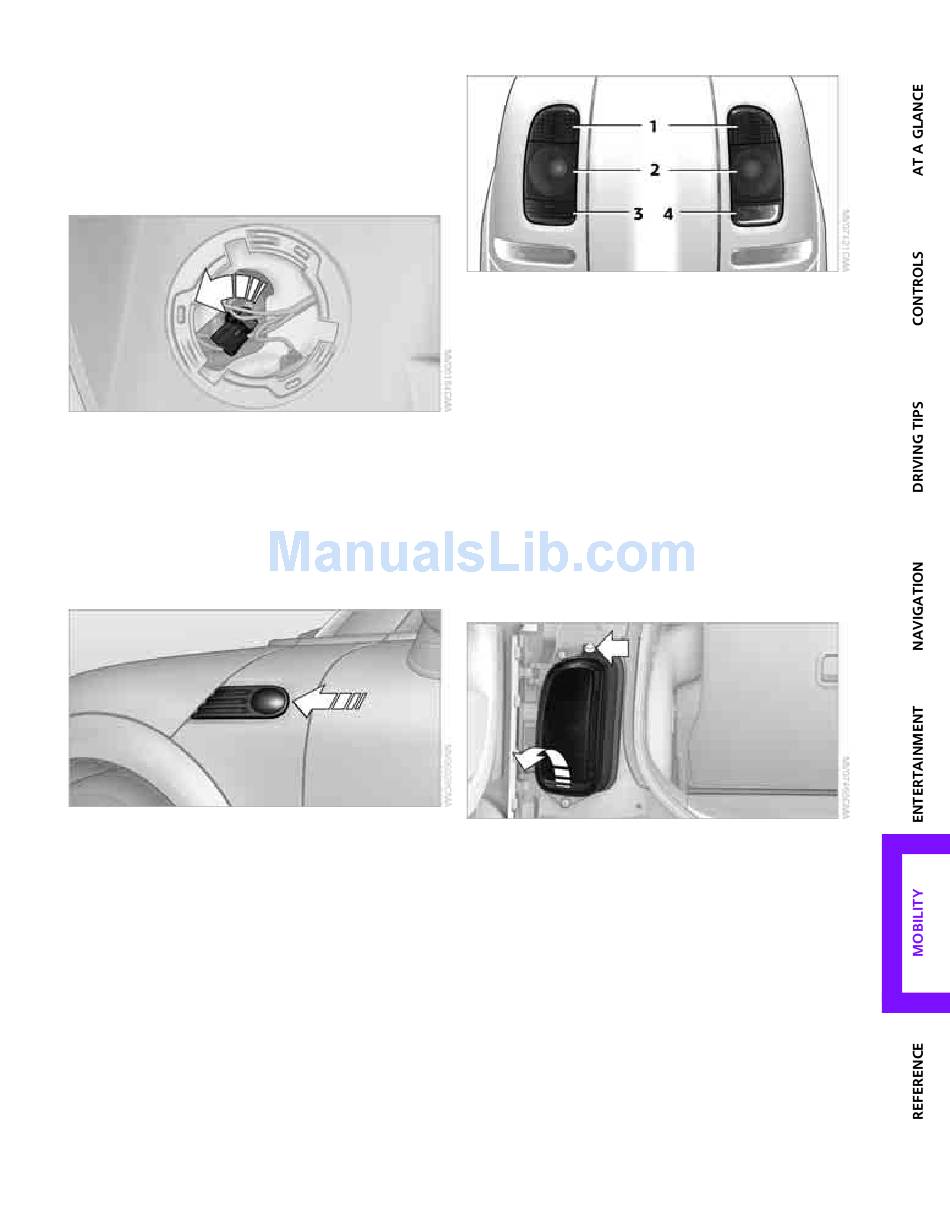

Replacing a fog lamp bulb
H8 bulb, 35 watts
1.
Turn in the wheel.
2.
Remove cover 2.
To do so, turn the cover counterclockwise.
3.
Screw out the lower bulb counterclockwise.
4.
To insert the new bulb and replace the
cover, proceed in reverse order.
Side turn signal indicators
5 watt bulb, W 5 W
1.
Push the lamp with the ventilation grate for-
ward and remove.
2.
Screw out the bulb holder counterclockwise.
3.
Pull out and replace the bulb.
4.
To insert the new bulb and replace the
cover, proceed in reverse order.
Online Edition for Part no. 01 41 2 602 066 - © 02/09 BMW AG
Tail lamps
1
Brake lamp/tail lamp
21 watt/5 watt bulb, W 5 W
2
Turn signal lamp
21 watt bulb, P 21 W
*
3
Rear fog lamp
P 21 W
4
Backup lamp
21 watt bulb, P 21 W
Remove the cover from the sidewall of the
cargo bay.
Changing
1.
Using the screwdriver from the onboard tool
kit, remove the screw at the top.
2.
Swing out the tail lamp and remove it
toward the top.
179
